Solar Racking Systems

Trapezoidal Metal Roof Solar Panel Clamp (Without Rail)

This solar panel clamp kit is designed for trapezoidal metal roof panels. It can be fixed directly to the roof without aluminum rails and is suitable for any size of trapezoidal metal roof panels. We design your specific solution based on solar panel orientation, wind/snow load, roof conditions, etc. Significant cost savings for your solar roof installation project.

Product Application Examples

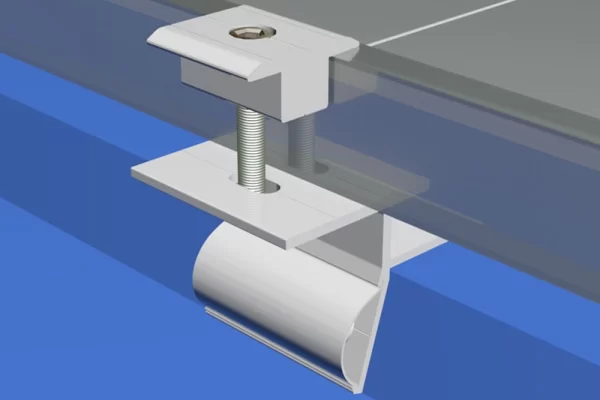

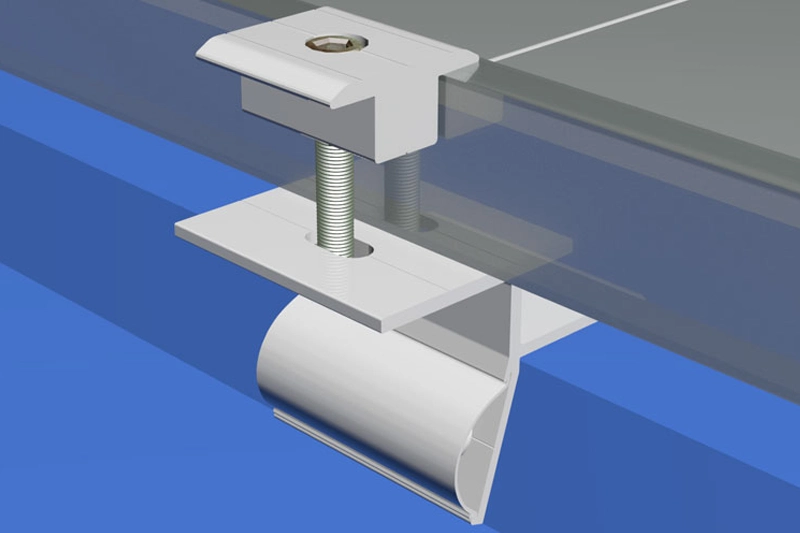

Application example of trapezoidal metal roof solar panel clamp (Without Rail)

Features

● Cost-effective.
● Anti-corrosion and rust resistance.
● Made of 6005-T5 aluminum, corrosion resistant.
● Suitable for trapezoidal sheet metal roofing installation.
● Fast and efficient installation without saw blades or drill chips.
● Compatible with different types of solar modules.

Trapezoidal Metal Roof Solar Panel Clamp Details

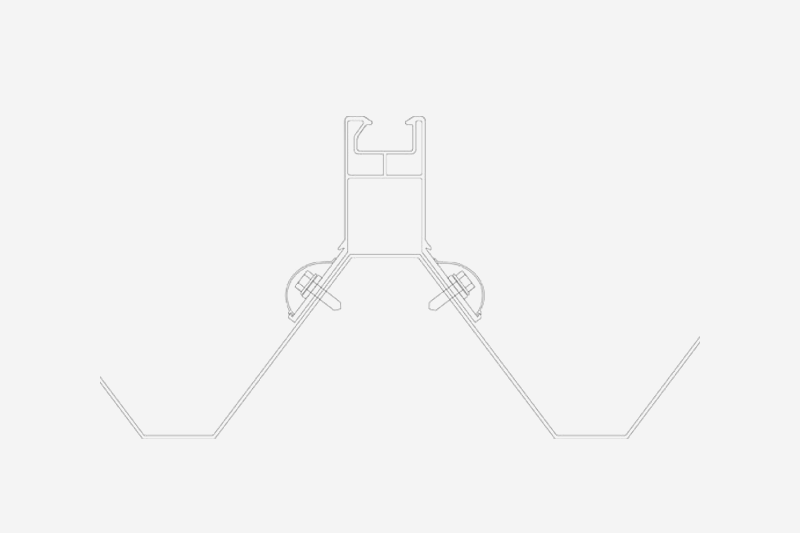

Bracket details

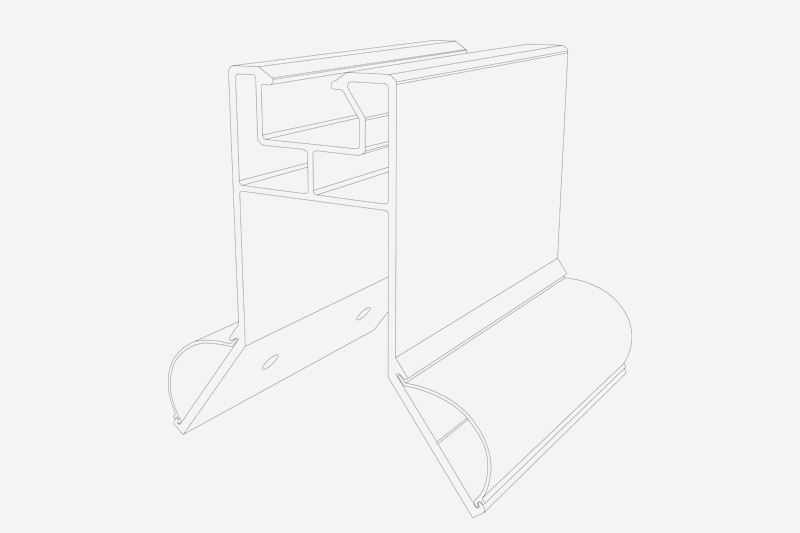

Trapezoidal Metal Roof Solar Panel Clamp Details

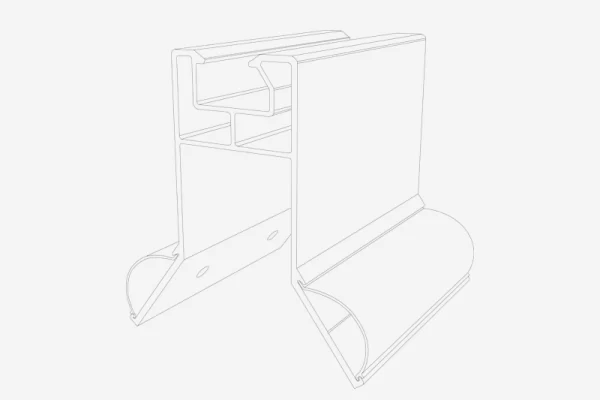

Trapezoidal Metal Roof Solar Panel Clamp Details

Technical Parameter

TypePitched Roof
lnstall siteTrapezoidal Sheet Metal
Installation Angle0-15°
Wind Load60m/s
Snow Load1.6KN/㎡
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialAL6005-T5 (surface anodized)
Fastener MaterialSUS304 & Hot-dip galvanized
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural or Customized
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
