Metal Roof Solar Panel Clamp

Metal roof solar panel standing seam clamps are a low-cost, high-quality, safe metal roofing installation accessory. The installation process does not require using other accessories or equipment that can damage the roof, such as drilling. For attachment to metal roofs, we offer you a variety of solutions depending on the roof type and module positioning.

Product Application Examples

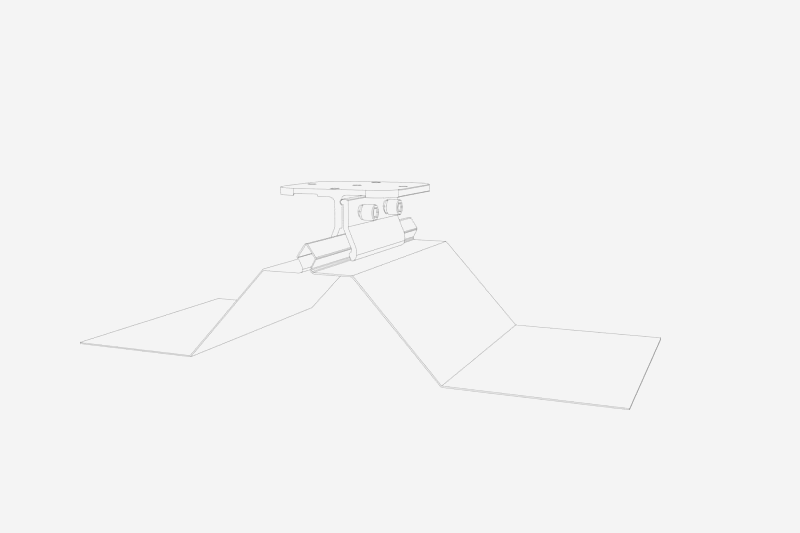

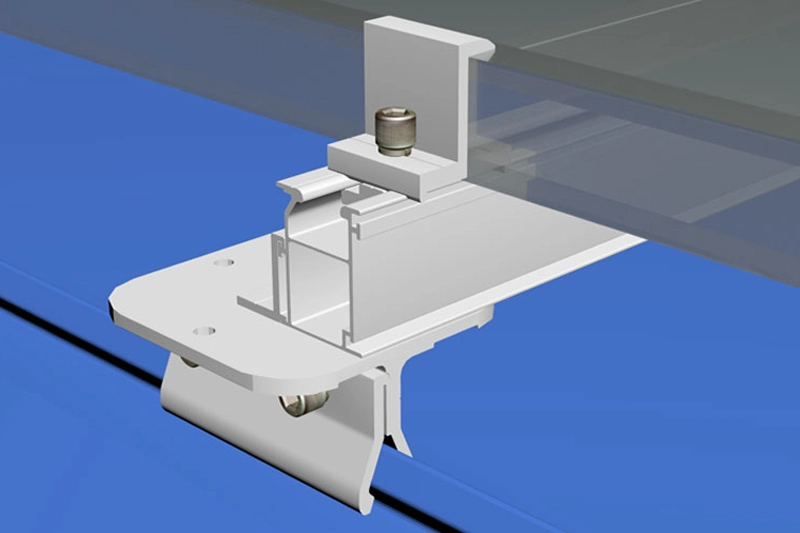

Application example of metal roof solar panel clamp

Features

● Enables simple, fast and cost-effective installation.
● Use of Al6005-T5, high-standard anodized aluminum.
● Minimal fasteners to save installation time.
● Suitable for different metal roofs.
● Compatible with varying modules of PV.
● Better structural design.

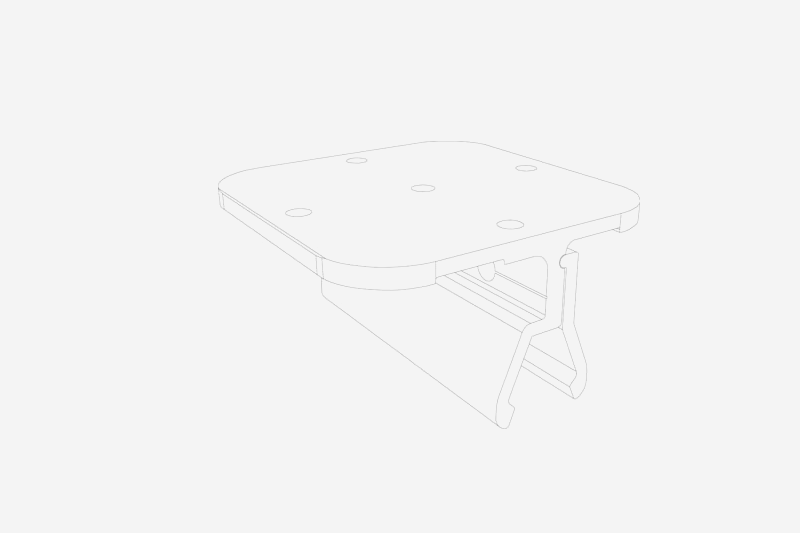

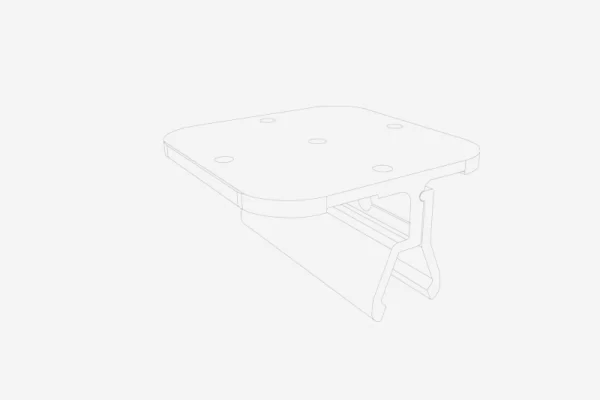

Metal Roof Solar Panel Clamp Details

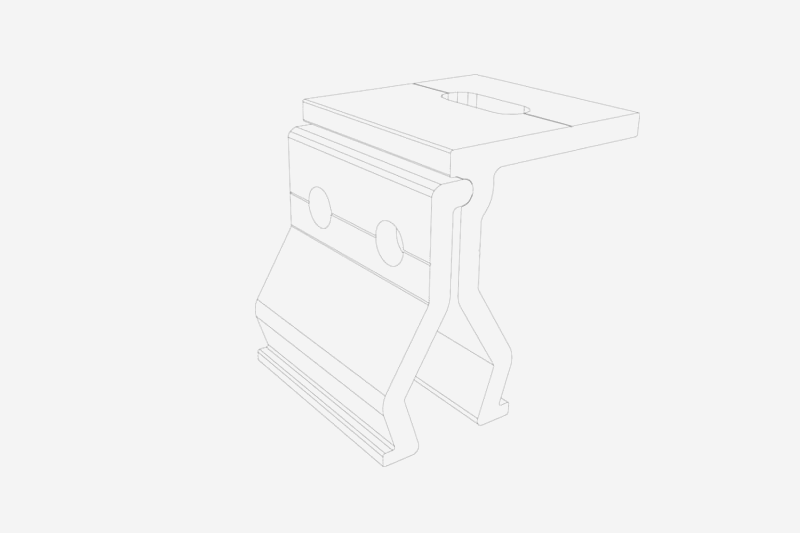

Bracket details


Metal Roof Solar Panel Clamp Details
Metal Roof Solar Panel Clamp Details

Technical Parameter

TypePitched Roof
Bottom SupportMetal tiles
Installation Angle0-15°
Wind Load60m/s
Snow Load1.6KN/㎡
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialQ235B (hot-dip galvanized) & AL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & SUS304 & Hot-dip galvanized
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural silver or colored according to customer requirements
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
