Trapezoidal Metal Roof Mounting Clamp (With Rail)

This aluminum clamp is designed for solar panel mounting on trapezoidal tin/metal roofs. The utility bracket can fit any size of trapezoidal metal roof panels. We offer different universal mounting solutions to secure PV modules/aluminum rails/clamps/roof rafters together.

Our trapezoidal metal roof panel clamps have a high quality finish and are made of durable and corrosion resistant materials. The clamps can provide significant cost savings for your solar roof installation projects because they no longer require the entire long aluminum rail columns, L-feet bracket. PV modules can be fixed directly to our rails.

Product Application Examples

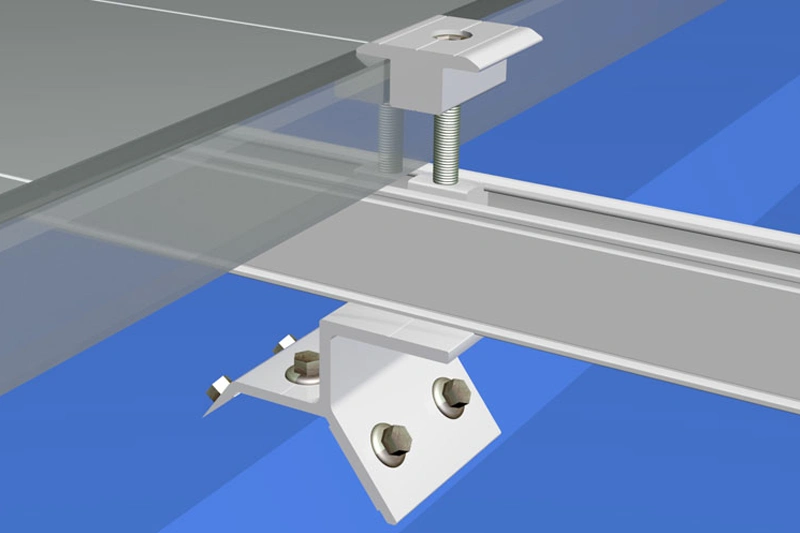

Application example of trapezoidal metal roof mounting clamp

Features

● Cost-effective.
● Made of 6005-T5 aluminum, corrosion resistant.
● Suitable for trapezoidal sheet metal roofing installation.
● Fast and efficient installation without saw blades or drill chips.
● Compatible with different types of solar modules.

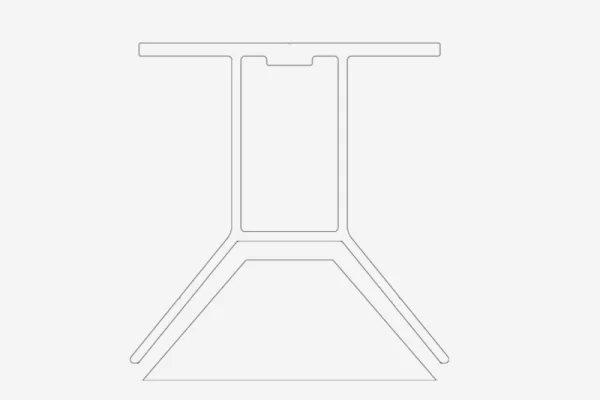

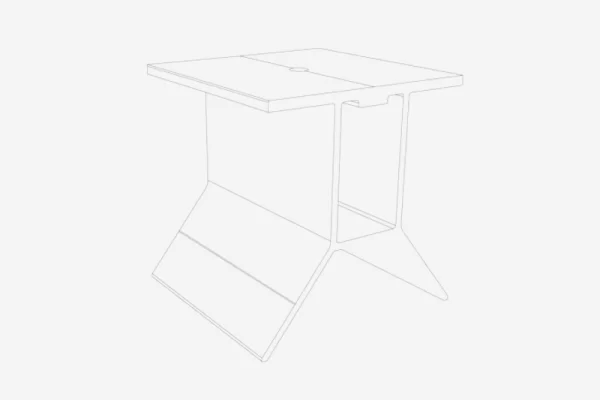

Trapezoidal Metal Roof Mounting Clamp Details

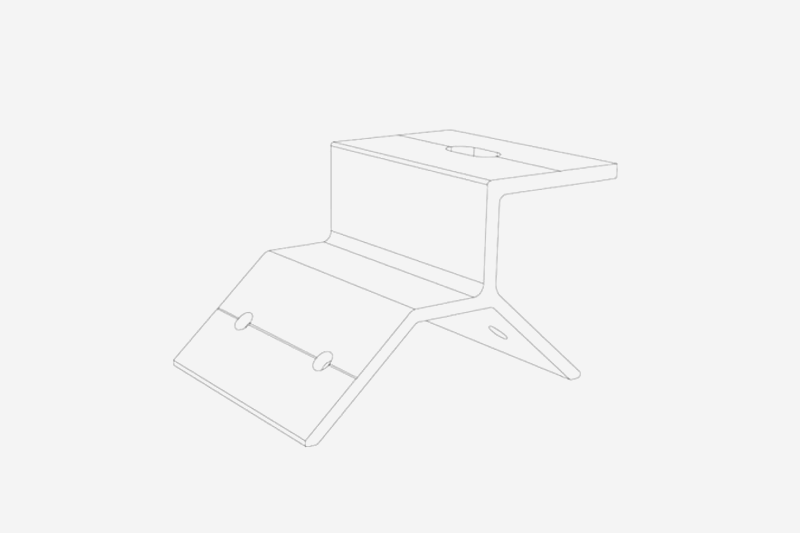

Bracket details

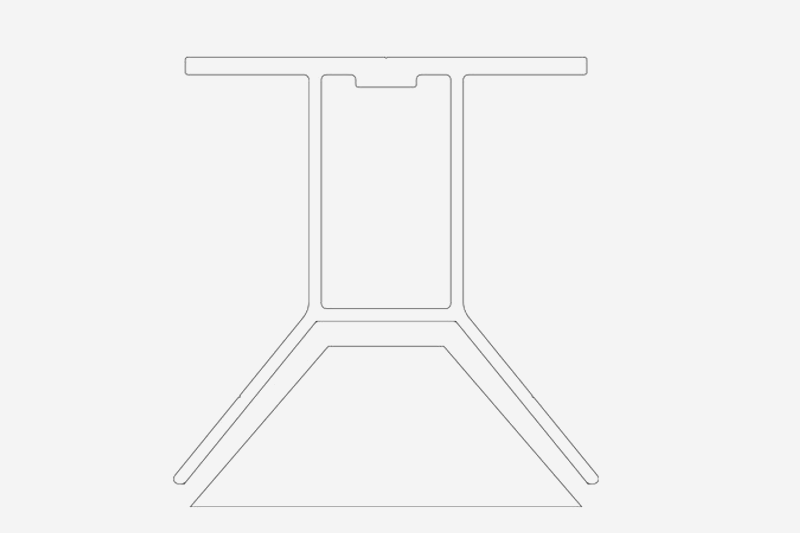

Trapezoidal Metal Roof Mounting Clamp Details

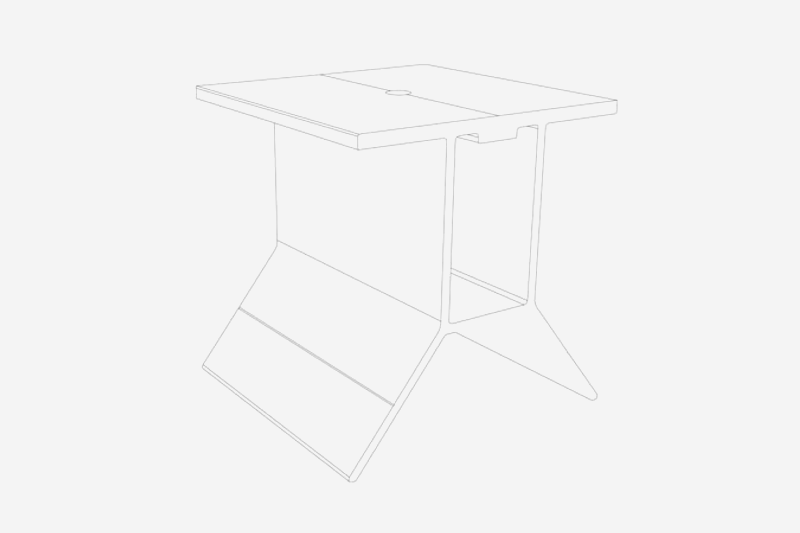

Trapezoidal Metal Roof Mounting Clamp Details

Technical Parameter

TypePitched Roof
lnstall siteTrapezoidal Metal Roof
Installation Angle0-15°
Wind Load60m/s
Snow Load1.6KN/㎡
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialAL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & SUS304 & Hot-dip galvanized
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural silver or colored according to customer requirements
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
