Metal Roof Solar Panel Standing Seam Clamp

Solar roof clamps allow solar panels to be attached directly to standing seam metal roofs without drilling. The clamps provide a firm hold without penetrating the roof panels, ensuring excellent stability with minimal weight. In addition, the versatility of the system portfolio allows for quick connection to rails or modules.

Product Application Examples

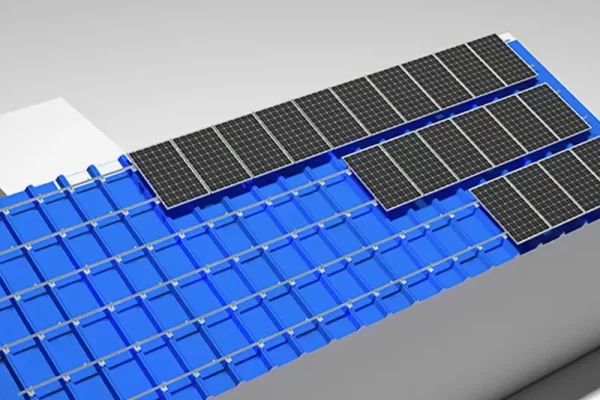

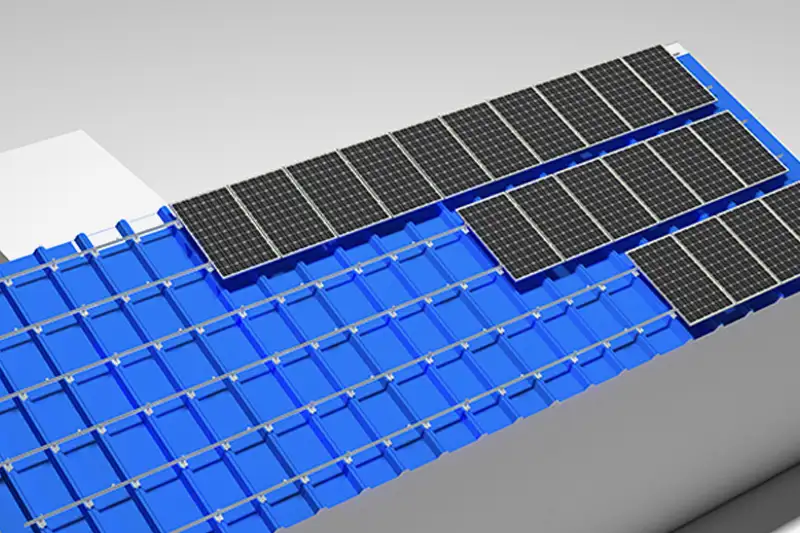

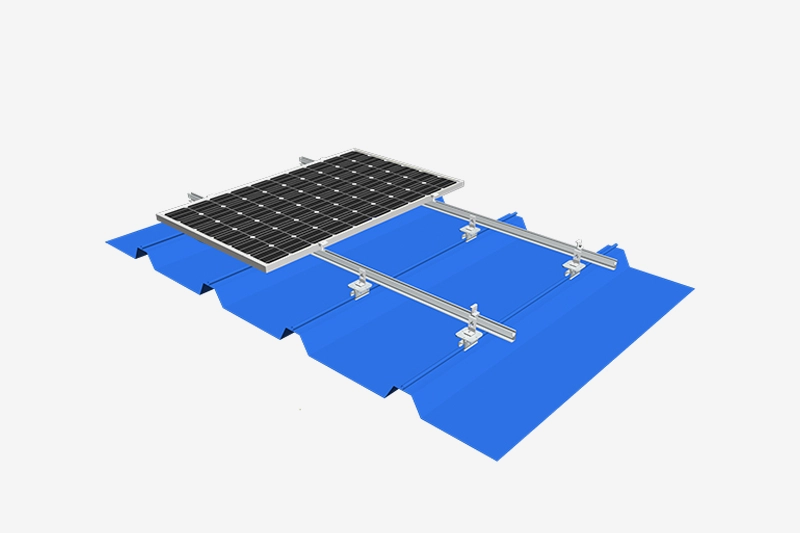

Application example of metal roof solar panel standing-seam clamp

Features

● Can be installed without drilling first.
● Use of Al6005-T5, high-standard anodized aluminum.
● The compact design reduces transportation costs, saves storage space and facilitates construction site management.
● The metal roof standing seam clamp is pre-assembled for simple, fast and cost-effective installation, reducing the total cost of solar plant installation.
● Configured with fasteners and nuts to save on additional parts purchases.
● Suitable for different metal roofs.
● Compatible with varying modules of PV.

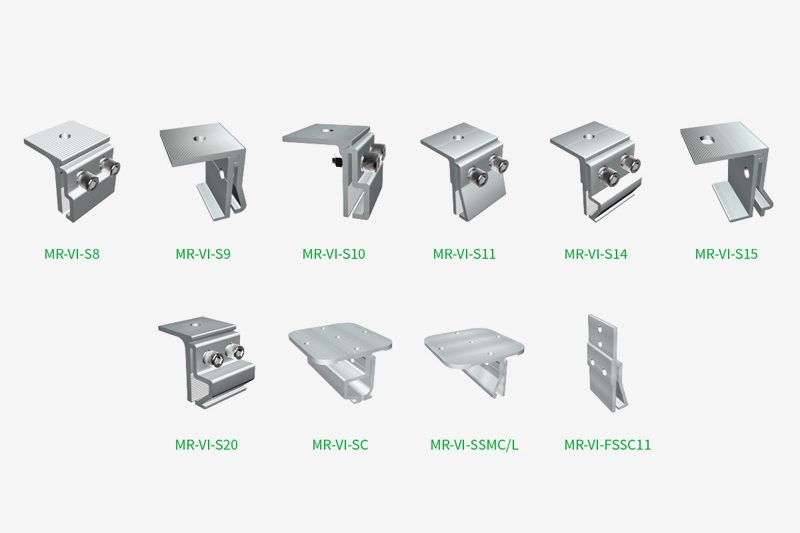

Metal Roof Solar Panel Standing Seam Clamp Details

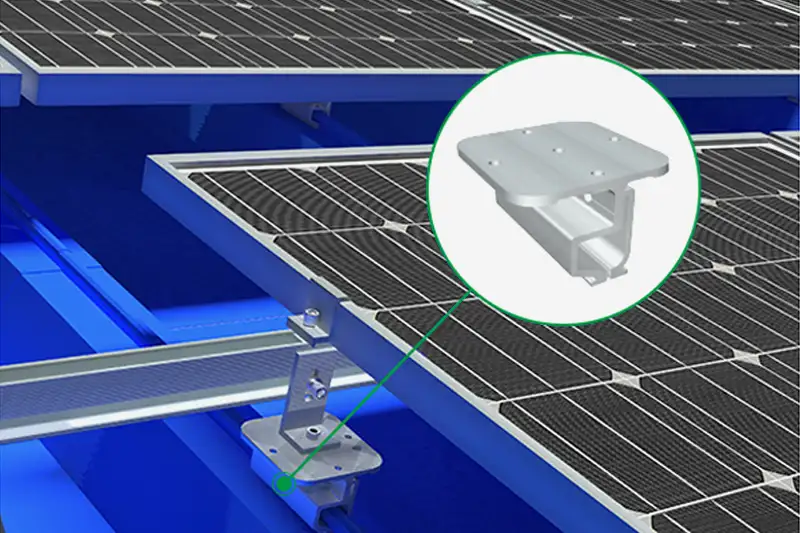

Bracket details


Metal Roof Solar Panel Standing Seam Clamp Details
Metal Roof Solar Panel Standing Seam Clamp Details

Technical Parameter

TypePitched Roof
Bottom SupportMetal tiles
Installation Angle0-15°
Wind Load60m/s
Snow Load1.6KN/㎡
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialAL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & SUS304 & Hot-dip galvanized
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural silver or colored according to customer requirements
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
