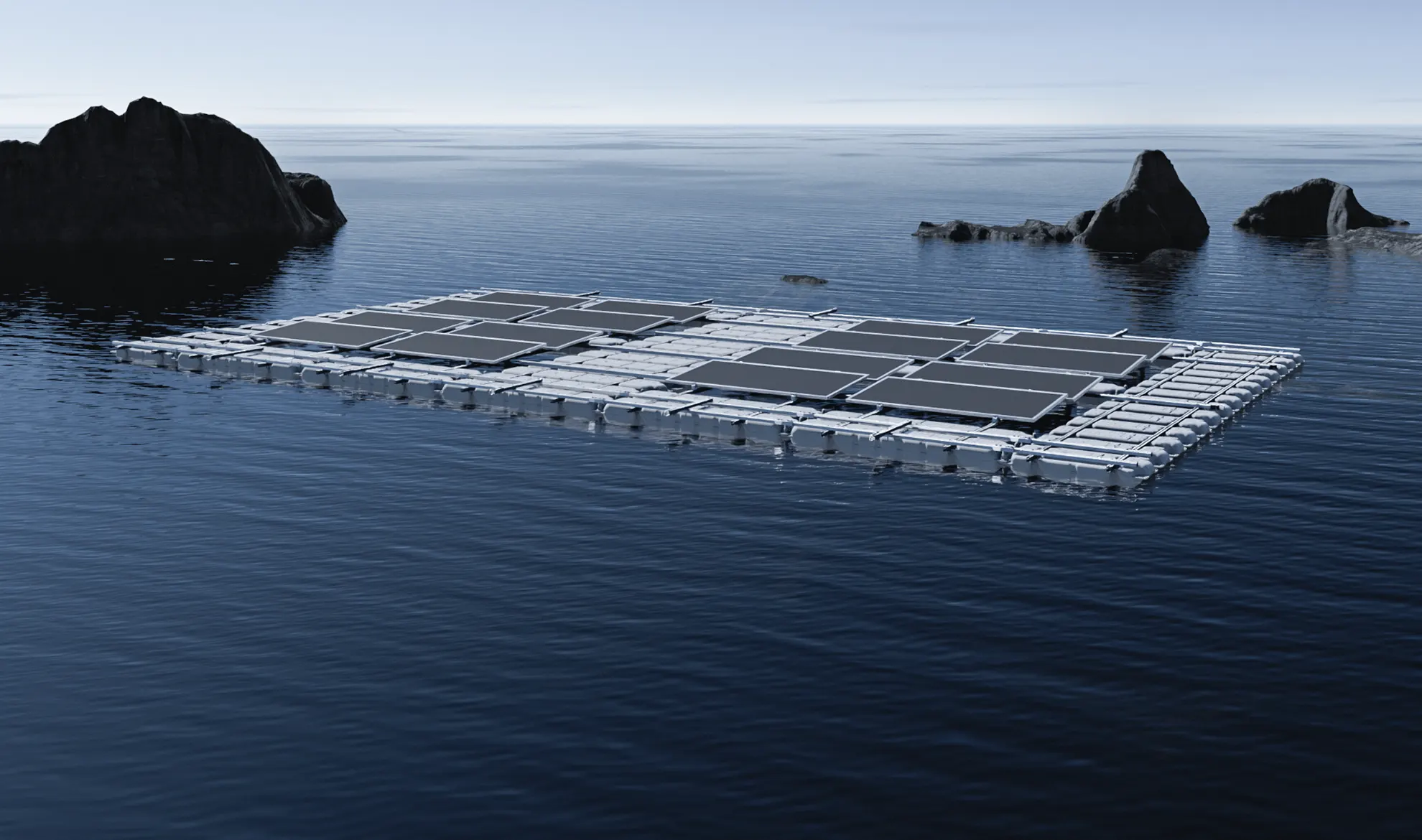

G5G Floating Solar System

The G5G Floating PV Mounting System integrates eco-friendly HDPE floats with corrosion-resistant carbon steel mounting frames. It allows flexible layout and easy installation. Boasting strong buoyancy and a high-load-bearing structure, the system ensures the long-term and stable operation of solar power plants, making it suitable for the installation of large-scale floating PV projects.

PRODUCT-APPLICABLE PROJECTS

Large - scale floating PV projects
Floating projects in areas prone to heavy snow and strong winds
Floating projects with large - size PV modules
Floating projects in environments with significant installation challenges

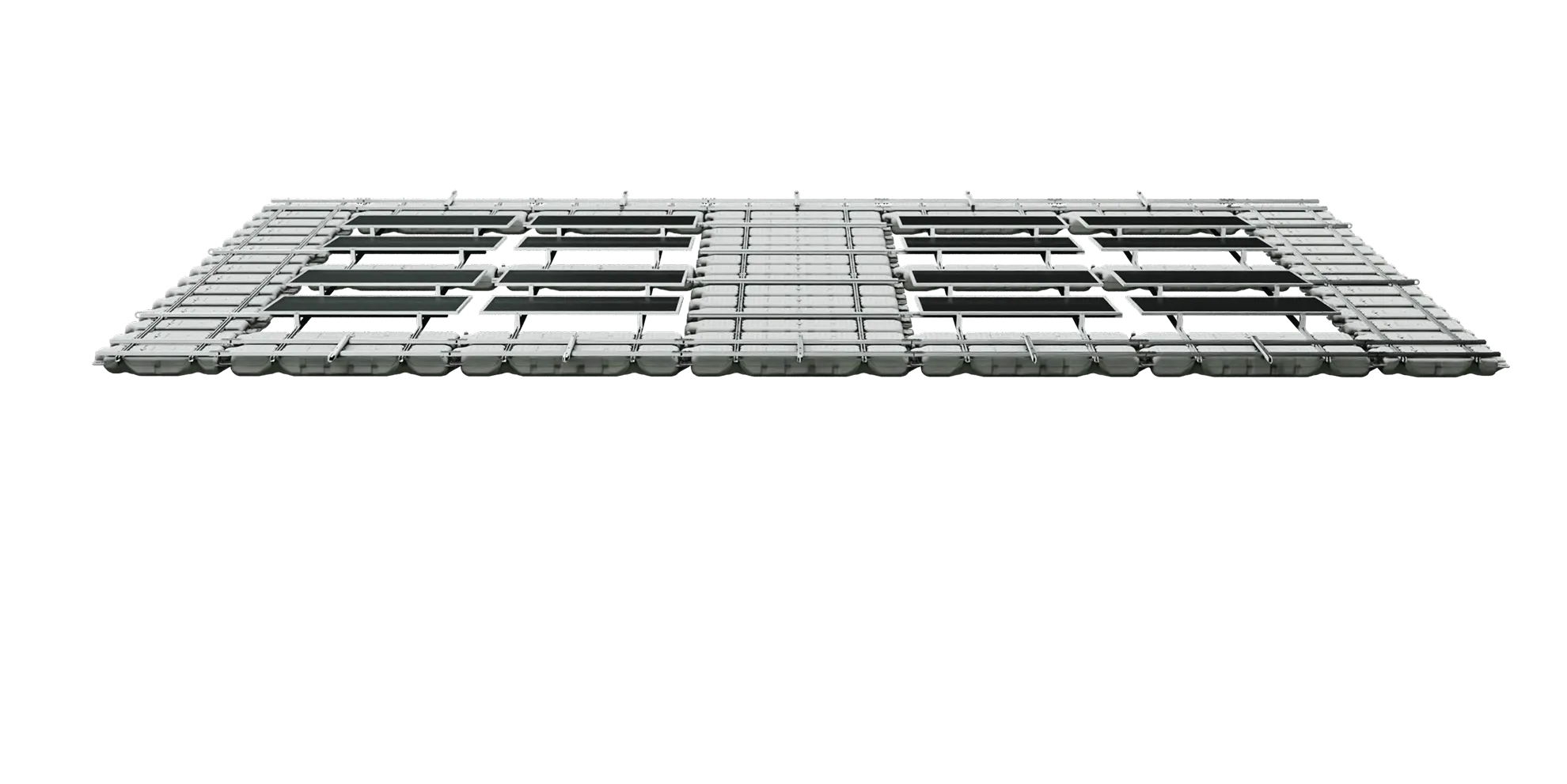

SYSTEM STRUCTURE

ECO-FRIENDLY HDPE FLOATS + CORROSION-RESISTANT CARBON STEEL MOUNTING FRAMES + ANCHORING SYSTEM

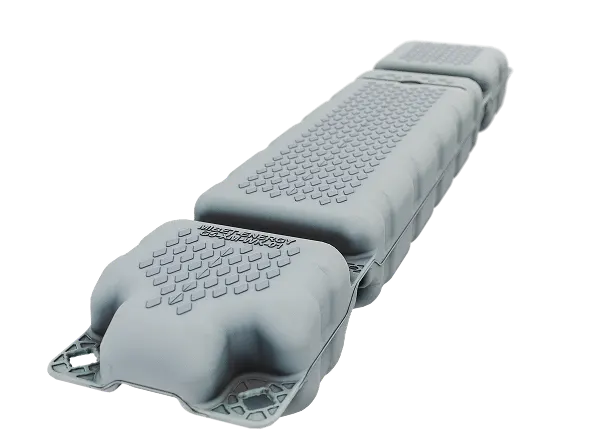

HDPE Float Structure

The system's floats consist of G5G main floats, access floats, and G5 walkway panels, connected by plastic bolts, nuts, and long strip washers.

Carbon Steel Mounting Frame Structure

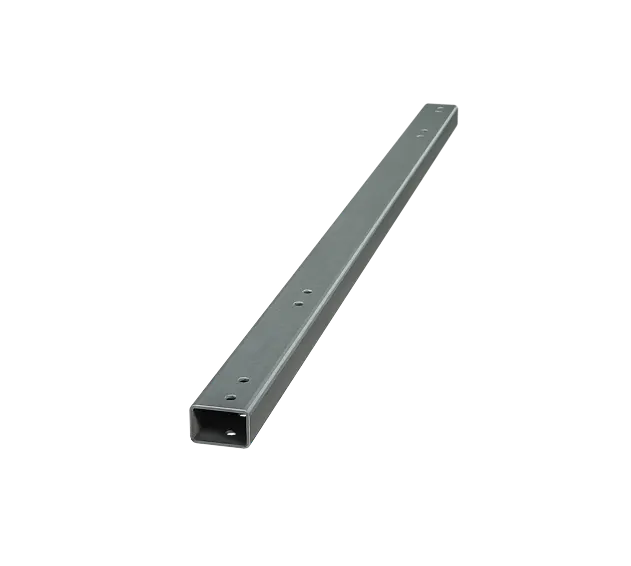

Composed of C52 longitudinal beams, square steel, and square steel connectors, it is mounted on top of the floats.

Module Support and Connection Structure

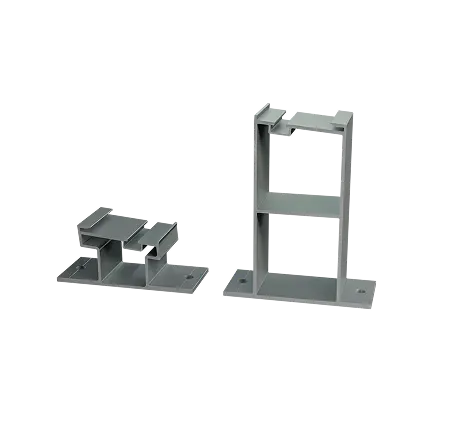

G5 front and rear support legs hold the PV modules in place, while end clamps secure the edges of the PV modules.

System Connection Methods

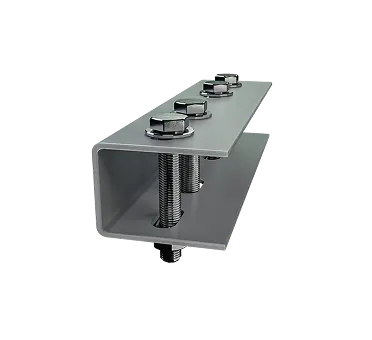

The carbon steel mounting frame structure is connected to the floats via U - shaped clamp assemblies. Square steel members are linked by extenders, facilitating modular expansion and layout in later stages.

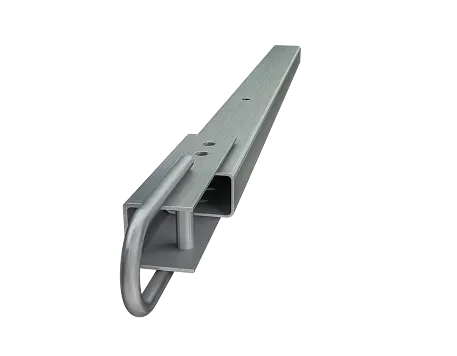

Anchoring Structure

Composed of anchoring square steel and G5 anchor frame welded assemblies, the system can be fixed using various anchoring methods such as shore anchors and submerged anchors.

Certifications and Tests

The structure has passed TUV certification and wind tunnel tests, capable of adapting to harsh environmental conditions.
icon1

Reliable Project Solution Design Capability

4 R & D centers nationwide with a total of over 200 patent applications.

A professional technical team of more than 50 members providing high - quality customized solutions.

Extensive project experience covering more than 100 countries and regions to meet diverse project needs.

Reliable Project Solution Design Capability

5 branch offices.

4 production bases.

Localized project support.

Global supply chain system.

LONG-TERM PARTNER SUPPORT

  • We provide professional product introduction and training to improve installation efficiency.
  • Round - the - clock online service with rapid response to user needs, facilitating the rapid completion of on - site construction.
  • We commit to a 10 - year product warranty and 5 - year after - sales service, providing long - term guarantee for the later operation and maintenance of your power station.

Project Cost and Return on Investment

  • We offer high - performance system solutions to reduce power station construction costs and maximize power generation efficiency.
  • It can effectively balance performance and cost and improve the project return on investment.

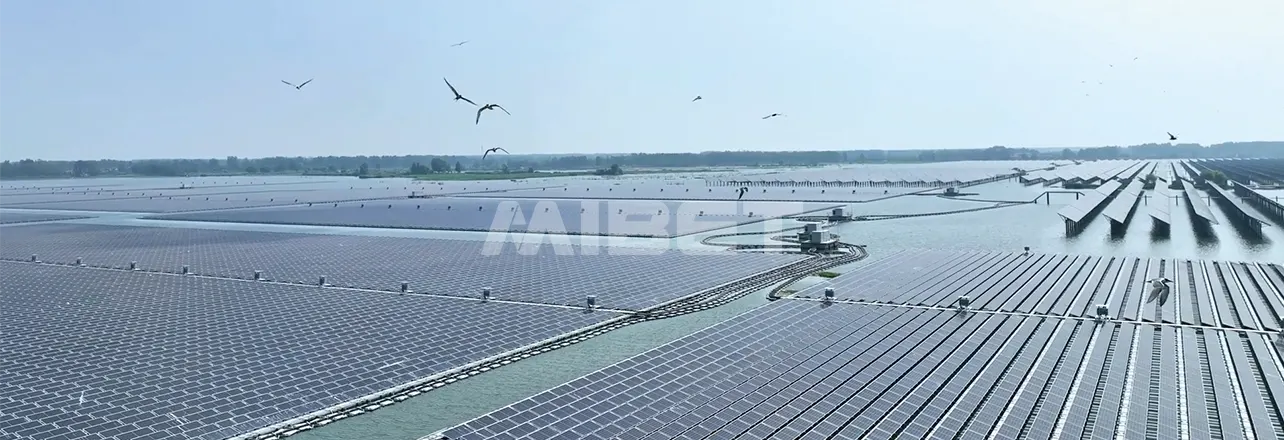

Global Project Cases

The system is widely applied in countries and regions across Asia, the Middle East, Oceania, Africa, and Europe.

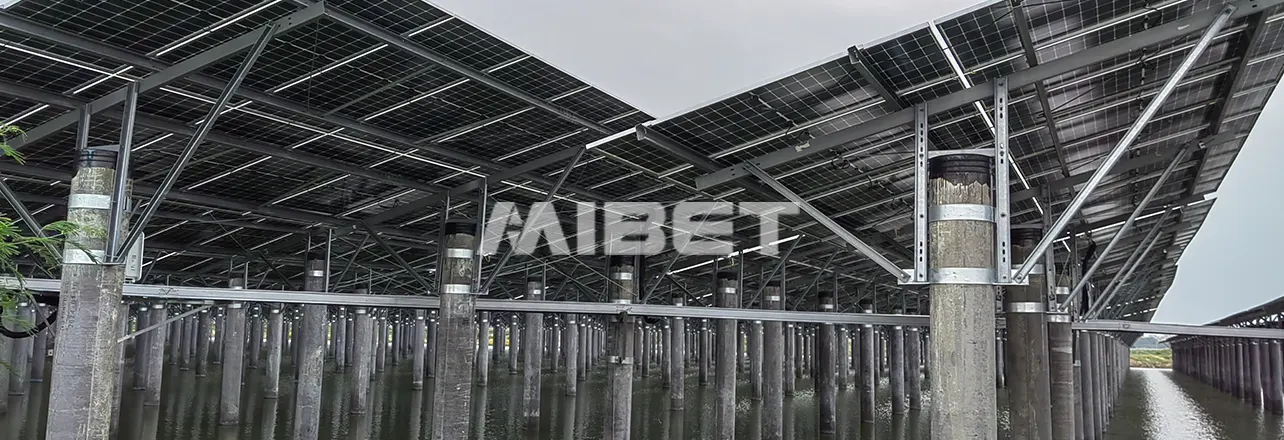

44MW Fishery PV, Zhangzhou

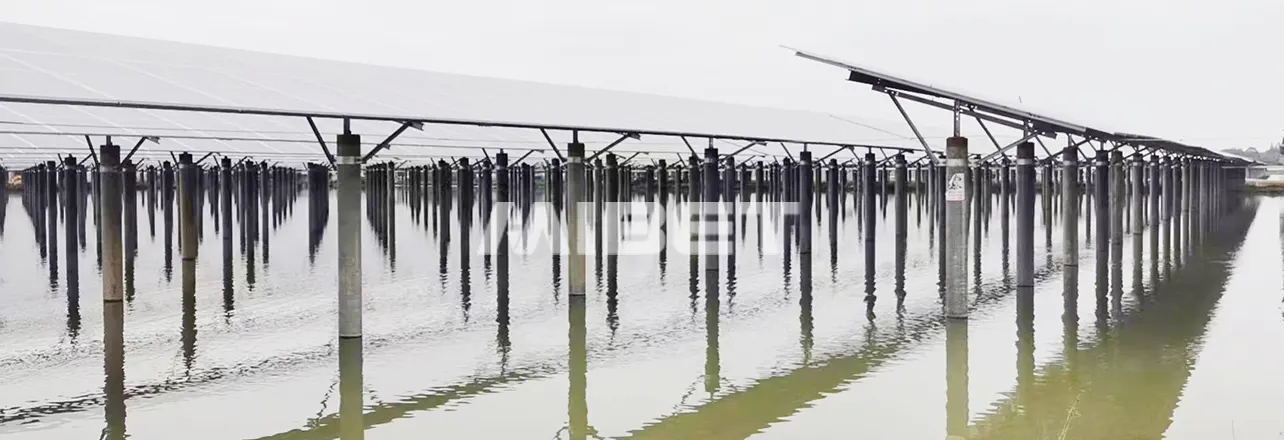

50MW Fishery-Solar Hybrid Racking

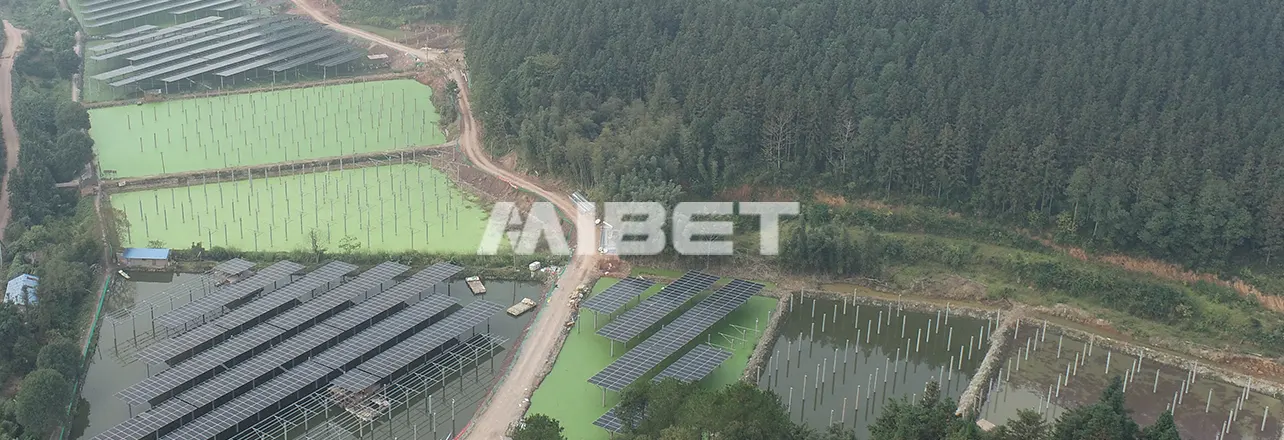

23.7MW Fishery PV

44MW Fishery PV, Zhangzhou

China
