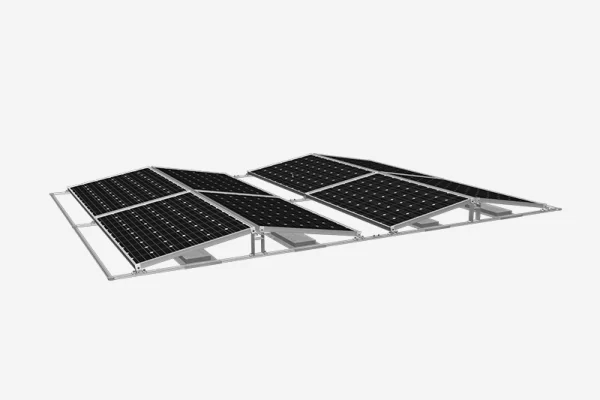

Solar Panel Ballast Mounting System (Two Sides)

Solar panel ballast mounting systems are simple and effective solutions for non-penetrating flat roof installations and can also be used for ground-mounted solar projects. While most other roof mounts are secured to the building’s roof beams through roof penetrations, ballast mounts are secured by weight. Depending on your PV project and site conditions, several ballast options are available.

This solar ballast system achieves high wind resistance and fast site installation through concrete and patented structural design. In addition, the unique bi-directional design allows for better utilization of roof area and higher power production. In most cases, they can keep your roof in good condition while receiving free renewable power.

In addition to the local wind rates and snow loads, our team considers all relevant building regulations. We are committed to minimizing the amount of work done to your roof throughout the installation process. We achieve this through careful planning and intelligent design. This ensures that your roof is completely leak-proof and in good condition.

Product Application Examples

Application example of solar panel ballast mounting system


Ensure structural strength

Professional structural design and high-density aluminum material ensure structural stability and strength.

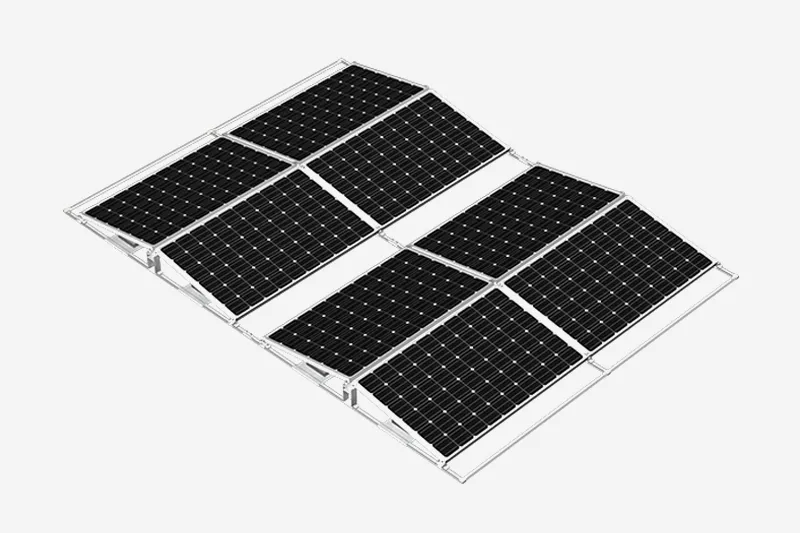

Unique two-way matrix design

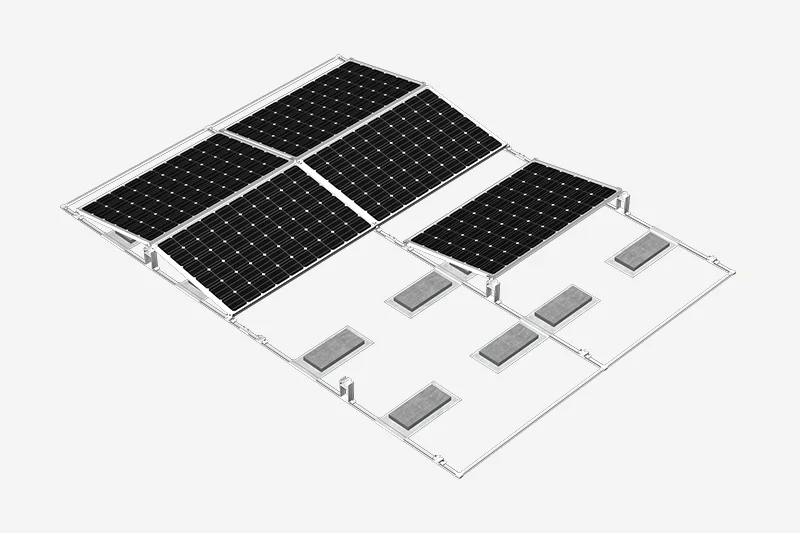

A unique bi-directional matrix design eliminates the need for additional wind baffles, reducing structural costs and weight. Ballast system can be fixed with concrete block or rock.

Easy to install and cost saving

Simplified component configuration allows for quicker installation. Smaller package size saves on shipping costs.

Solar Panel Ballast Mounting System Details

Bracket details

Solar Panel Ballast Mounting System Details
Solar Panel Ballast Mounting System Details

Technical Parameter

TypeFlat roof, ground
Bottom SupportConcrete foundation
Installation Angle10°
Wind Load60m/s
Snow Load1.6KN/㎡
Panel Framingframed
Panel Orientationhorizontal
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialAL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & SUS304
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural or Customized
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
