Flat Roof Solar Double-row Tripod (No Bottom Beam) RMIV

The double-row tripod without bottom beam RMIV is optimized based on the RMII to meet the requirements of different roofing situations for the solar mounting system. The PV panels of this racking system can be arranged in one row (or two rows) horizontally or vertically, side by side. The professional structural design also ensures quick installation and good stability.

Product Application Examples

Application example of flat roof solar double-row tripod


The professional structural design ensures system strength

The professional structural design considers aerodynamics and stability, ensuring system strength while allowing for faster installation in the field.

Unique base design

The tripod support structure can be flexibly installed on a flat roof by making a solid connection to the bottom concrete foundation. In addition, the unique pedestal structure is low-cost and stable.

Flexible panel installation

Meet the needs of PV modules in horizontal or vertical rows.

Single and double rows, adjustable structure

Single-row and double-row installation methods can be freely selected, and the adjustable structure meets the actual installation requirements on site.

Flat roof solar double row tripod side view

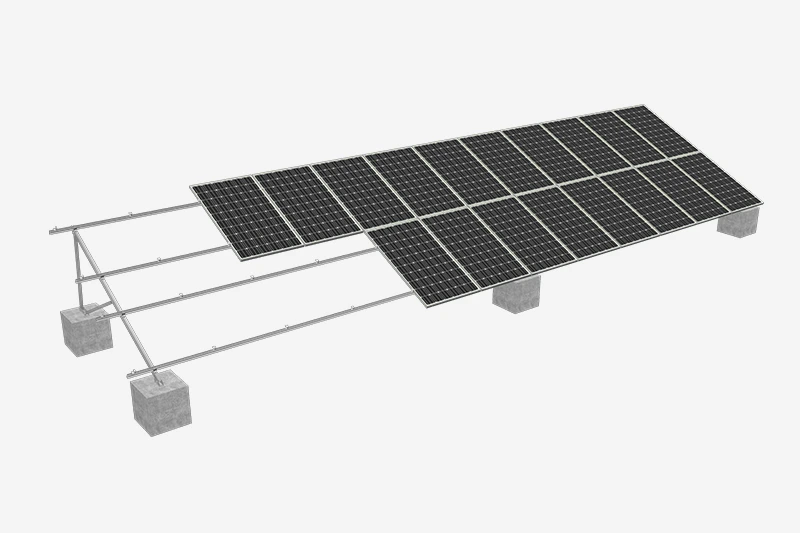

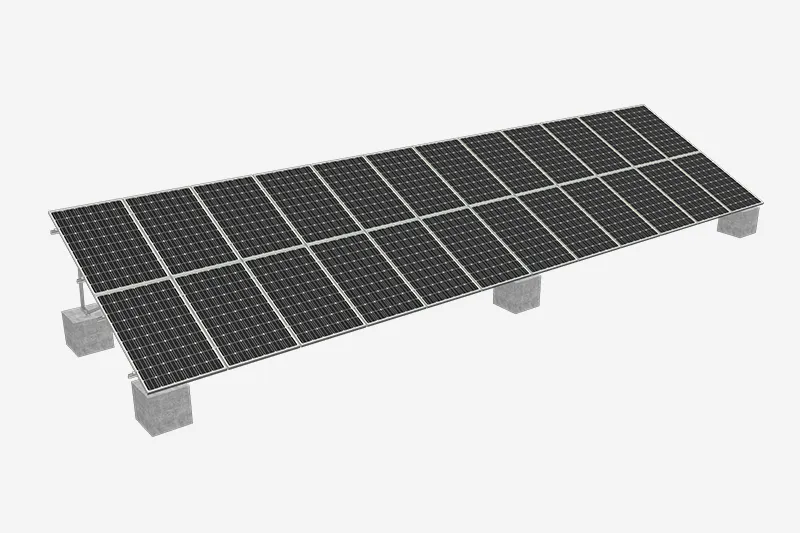

Flat Roof Solar Double-row Tripod Details

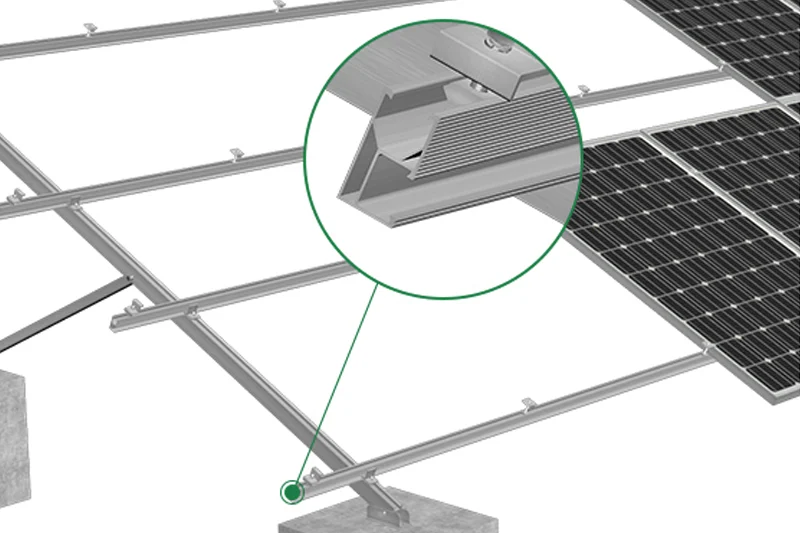

Bracket details

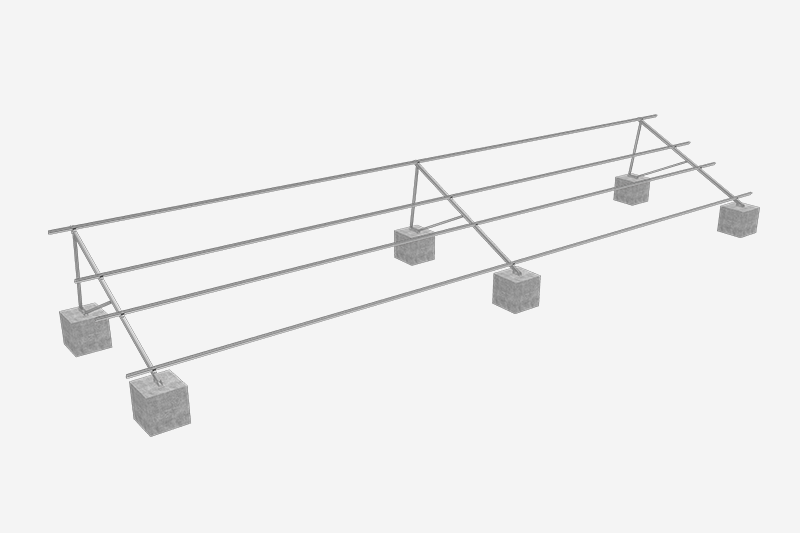

Flat Roof Solar Double-row Tripod Details
Flat Roof Solar Double-row Tripod Details

Technical Parameter

TypeFlat roof
Bottom SupportConcrete foundation
Installation Angle0-60°
Wind Load60m/s
Snow Load1.6KN/㎡
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialAL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & SUS304 & Hot-dip galvanized
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural or Customized
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
