Ballasted Flat Roof System With No Roof Penetration Needed

Ballasted Flat Roof Mounting System RMIPro does not require any roof penetration to mount solar panels. It is a PV mounting product that can be installed at multiple mounting angles and is suitable for installation in areas with moderate wind pressure of 44m/s. This flat roof ballasted mounting system is low cost and easy to install and is compatible with all standard solar panels with 60 or 72 cells, as well as most other panels.

Product Application Examples

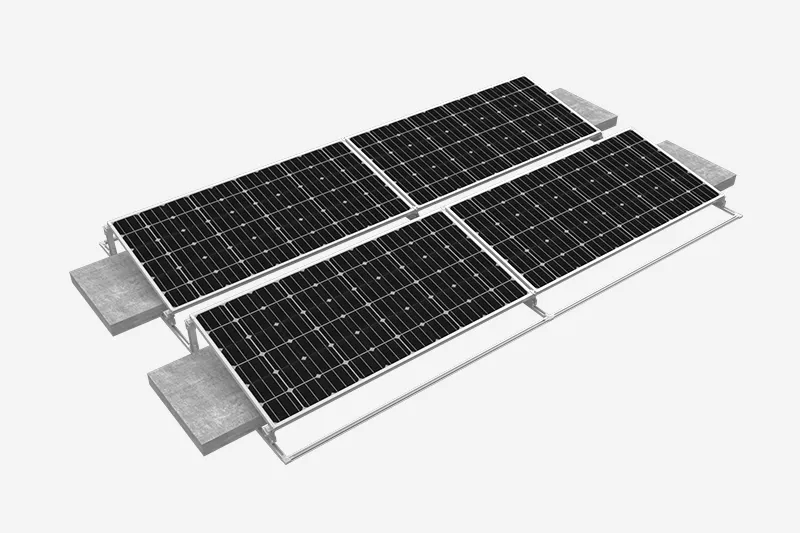

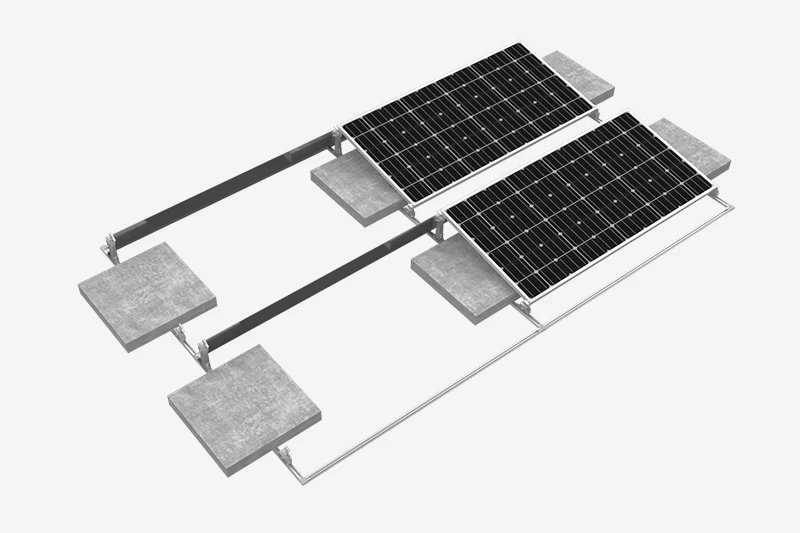

Application example of ballasted flat roof system with no roof penetration needed


Safety and strength of the system

High-strength aluminum alloy is used to ensure the overall stability and strength of the system. The mounting systems are developed with wind loads in mind, so they meet the highest safety standards.

Unique matrix design

The matrix design makes the whole system more stable, and together with the wind baffle, it greatly reduces the configuration ballast weight requirement and can be installed flexibly and effectively with concrete foundation or ballast plate, which solves the problem of low load bearing on the roof.

Reasonable structural design

Few system installation accessories improve installation efficiency. Professional structural design saves space for transportation and packaging.

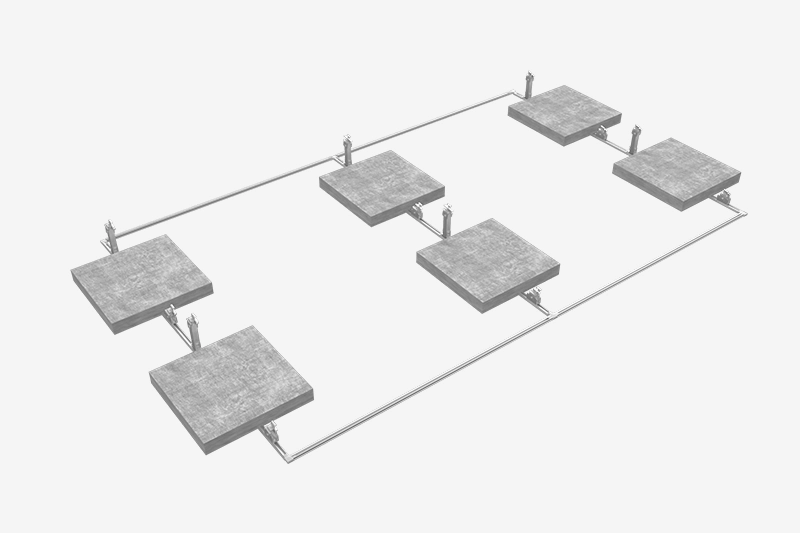

Ballasted Flat Roof System With No Roof Penetration Needed Details

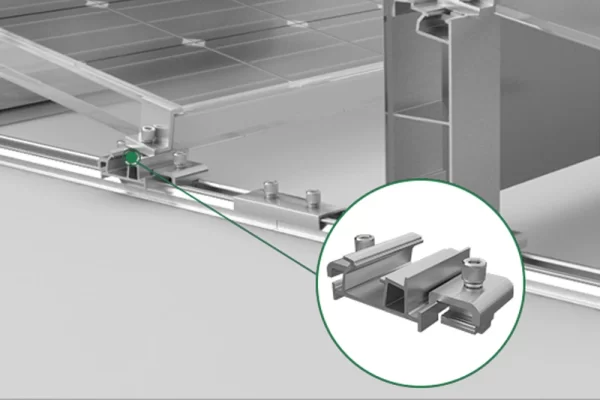

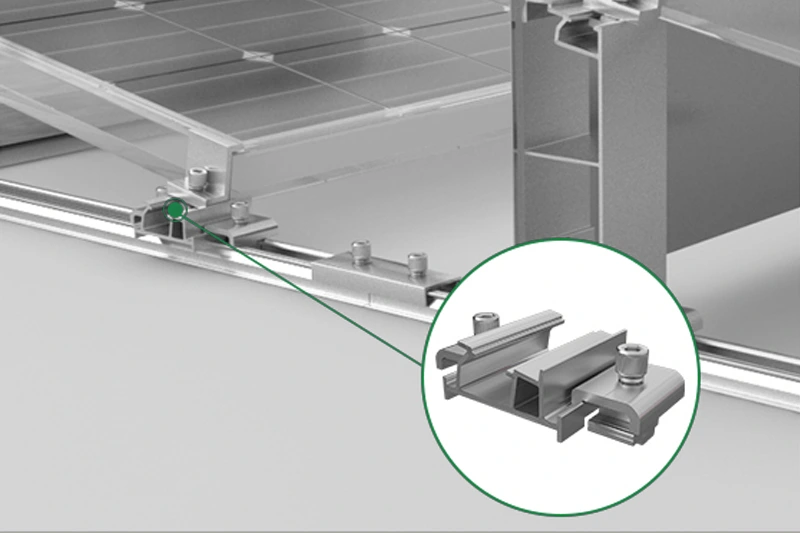

Bracket details

Ballasted Flat Roof System With No Roof Penetration Needed Details
Ballasted Flat Roof System With No Roof Penetration Needed Details

Technical Parameter

TypeFlat roof
Bottom SupportConcrete foundation
Installation Angle0-30°
Wind Load40m/s
Snow Load1.6KN/㎡
Panel Framingframed
Panel Orientationhorizontal
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialAL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & SUS304 & Hot-dip galvanized
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural or Customized
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
