Flat Roof Flexible Adjustable Triangular Solar Mounting System

The Flat Roof Adjustable Triangle Solar Mounting System is designed for quick and easy installation, with adjustable tilt angles to suit project installation needs or structural conditions. Our experienced structural engineers carefully calculate the best design for the unique shape, size and slope of your roof. This ensures optimal load distribution on the building structure while staying within load limits.

Product Application Examples

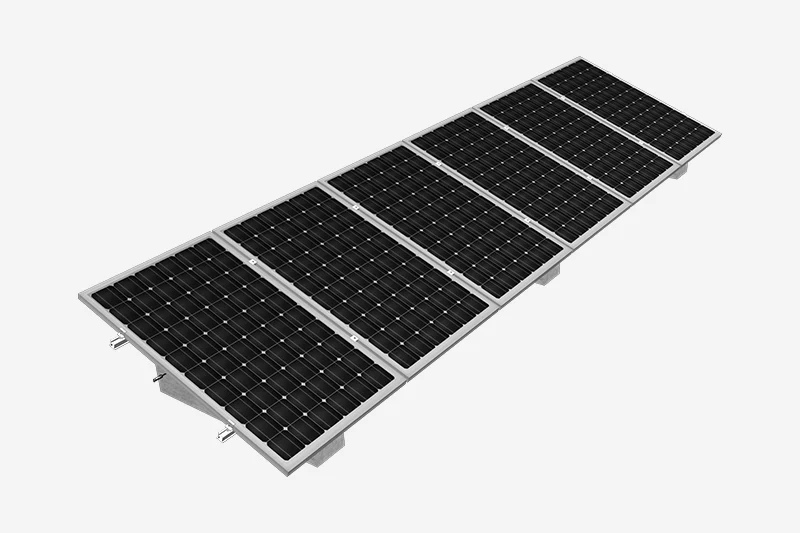

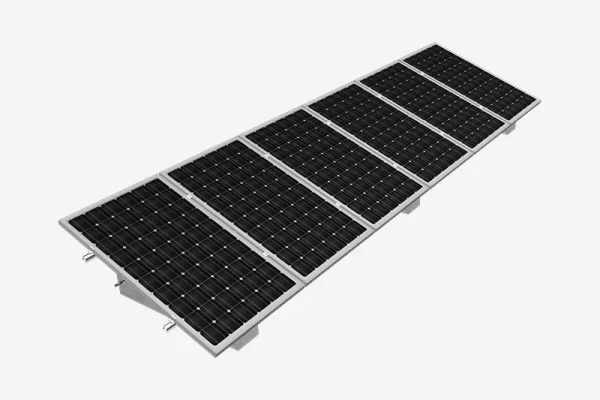

Application example of flat-roof-adjustable-triangular-mounting-system

Features

System Compatibility

Components mostly pre-assembled in factory to assure quick and reliable installation on site. Suitable for different flat rooftop, and compatible to different types of solar modules.

Corrosion resistance

Every component in the system is made with aluminum and stainless steel to ensure complete corrosion resistance.

Solar Module Layout Flexibility

Both landscape and portrait solar module layout are suitable.Both single row and double rows layout can be achieved.

Angle adjustable

Tilt angle can be adjustable.

Flat Roof Flexible Adjustable Triangular Solar Mounting System Details

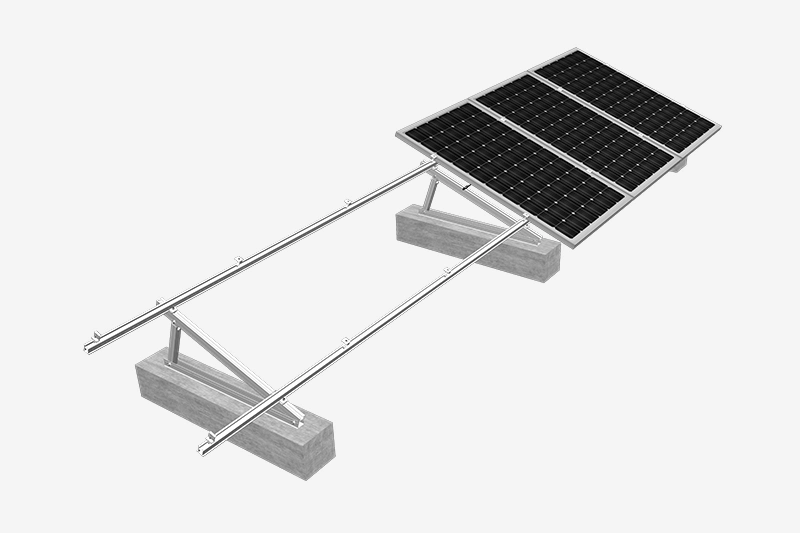

Bracket details

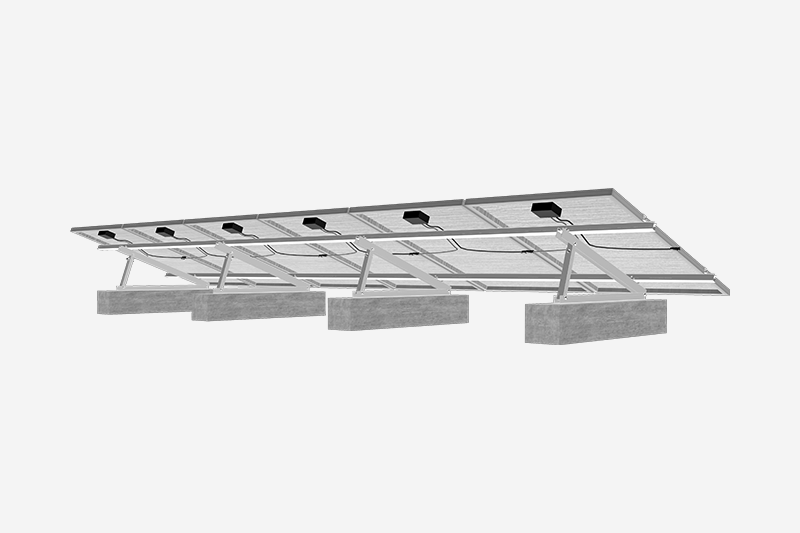

Flat Roof Flexible Adjustable Triangular Solar Mounting System Details
Flat Roof Flexible Adjustable Triangular Solar Mounting System Details

Technical Parameter

TypeFlat roof
Bottom SupportConcrete foundation
Installation Angle0-60°
Wind Load60m/s
Snow Load1.6KN/㎡
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialAL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & SUS304
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural or Customized
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
