MRac Solar Ground Mounting System PGT5

MRac solar ground mounting system PGT5 is optimized from GT5, suitable for medium to large-scale solar PV projects. Main beams and post are optimized with better design and less material, with strong wind load and snow load resistance. The PV system can achieve minor adjustment onsite with special design of an Anchor Plate to adapt to different sites. Patented and certified system design ensure projects safety and quick installation.

Product Application Examples

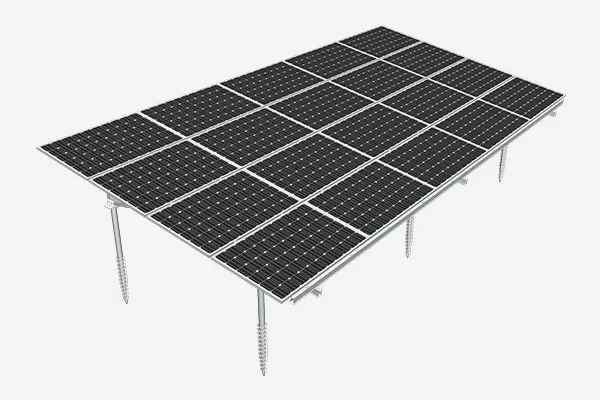

Application example of ground PV system PGT5


Symmetrical Design of Tilt-in-Nut and Rail Channel

No direction limitation for the nut and rail channel, improving the installation efficiency.

Pre-assembled Components Save Onsite Installation Time

Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.

Flexibility and Adjustability

The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.

No Front Post Design

Saving material cost without front post design, suitable for low ground clearance projects.

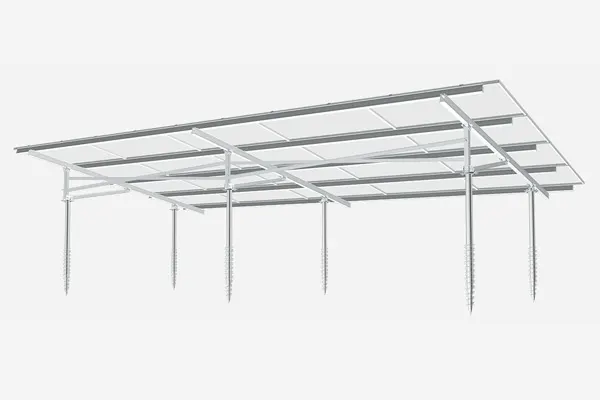

Ground Solar Racking PGT5 Details

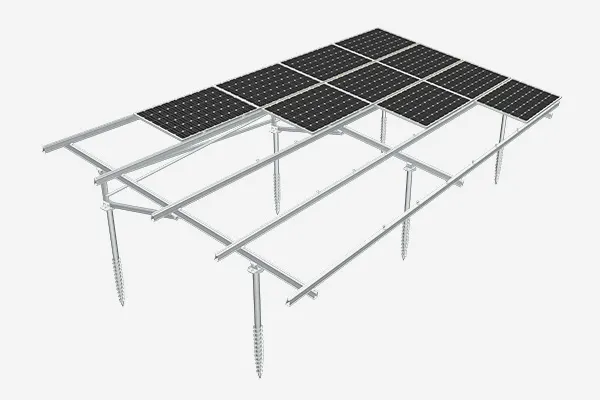

Bracket details

Ground Solar Racking PGT5 Details
Ground Solar Racking PGT5 Details

Technical Parameter

Bottom SupportCement foundation, Helical piles
Installation Angle0-60°
Wind Load60m/s
Snow Load1.6KN/㎡
Height From the Ground500-800mm
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialAL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & stainless steel SUS304
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural silver or colored according to customer requirements
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
