MRac Solar Ground Mounting System GT7

MRac Solar Ground Mounting System GT7 is applied for the installation of large-scale and utility-scale solar PV power plant. The main components are made of hot-dip galvanized steel, with good performance of structure strength, stability, and anti-corrosion. Compatible with varied solar modules. Unique piles and structure design save installation time and cost.

Product Application Examples

Application example of ground PV system GT7

Features

Unique Pile Design

Unique post design suitable for varied soil conditions and strengthen the whole structure stability.

Pre-assembled Components Save Onsite Installation Time

Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.

Flexibility and Adjustability

The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.

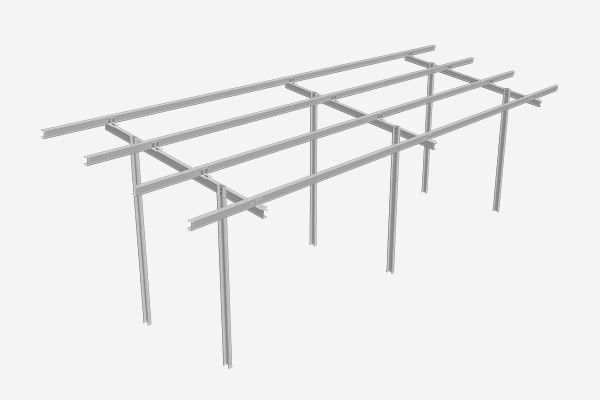

Ground Solar Racking GT7 Details

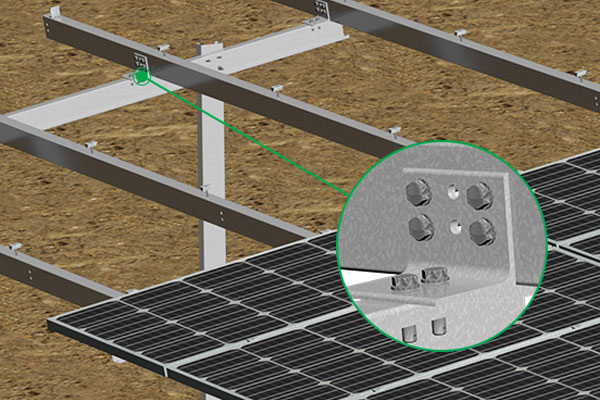

Bracket details

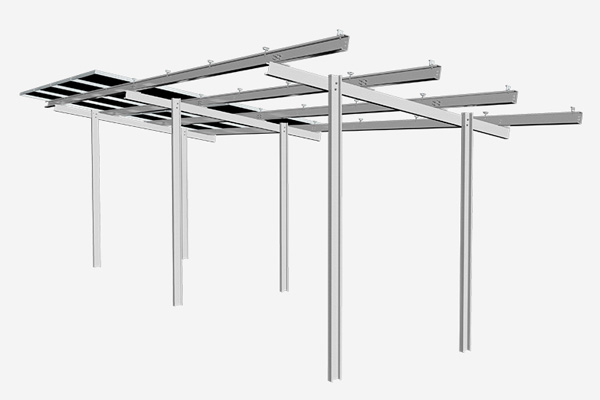

Ground Solar Racking GT7 Details

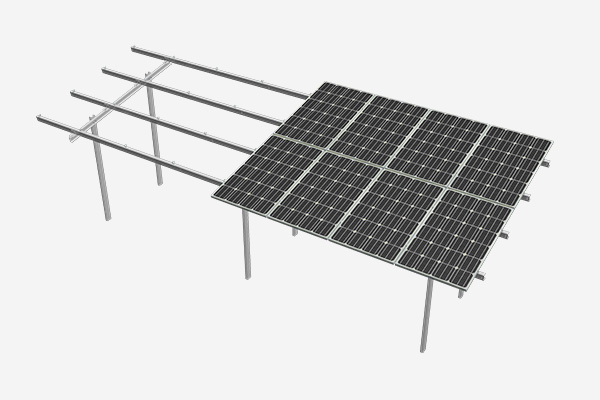

Ground Solar Racking GT7 Details

Technical Parameter

TypeGround
Bottom SupportC-shaped support column
Installation Angle0-60°
Wind Load60m/s
Snow Load1.6KN/㎡
Height From the Ground500-2000mm
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialQ235B (hot-dip galvanized)
Fastener MaterialSUS304 & hot-dip galvanized
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural silver or colored according to customer requirements
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
