MRac Solar Ground Mounting System NPGT4

MRac solar ground mounting system NPGT4 are optimized from PGT4, suitable for small to medium scale solar PV projects, Flat concrete roof & Ground. Main rails/beams and post were optimized with better design and less material, aiming at to meet more competitive price requirements. Just like the other MRac products, this new system can achieve rapid installation with highly pre-assembled structure, and minimum the installation costs at the same time.

Product Application Examples

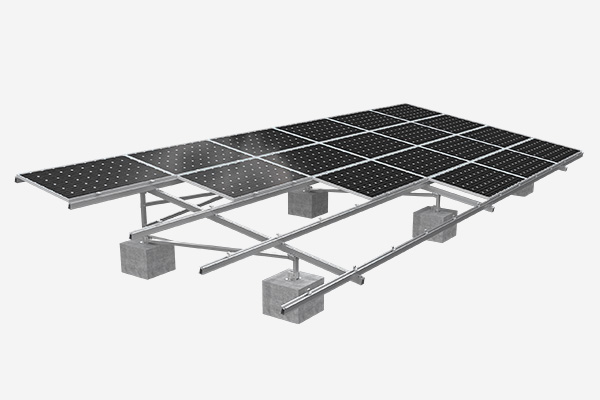

Application example of ground PV system NPGT4


Highly Pre-assembled Structures for Optional, Minimum Installation Time and Cost

According to the specific project demand, customized flexible pre-assembled kit can be offered from factory, no cutting or drilling on-site required, which would minimum the installation time and cost directly.

Fully Optimized Structure, With More Competitive Price Advantage

To ensure the structural strength of the system, main beams and post are optimized with better design and less material.

Pre-assembled Components Save On-site Installation Time

Solution designed case by case, most components pre-assembled in factory, no on-site cut and drill request, saving the on-site installation time and cost.

Flexibility and Adjustability

The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.

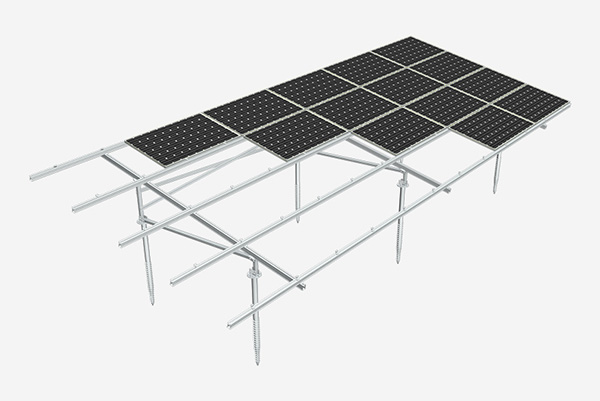

Ground Solar Racking NPGT4 Details

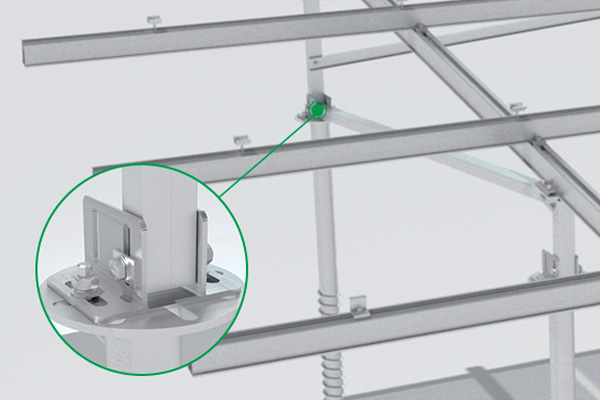

Bracket details

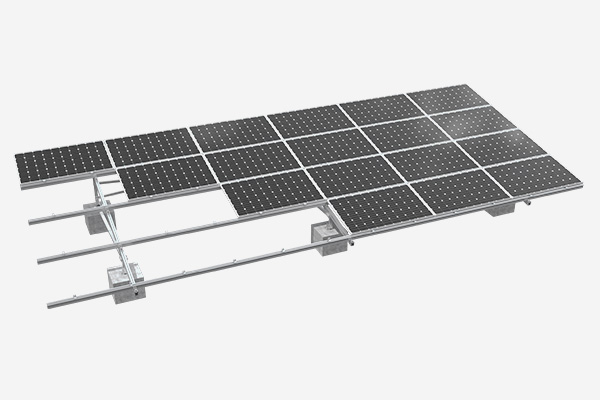

Ground Solar Racking NPGT4 Details
Ground Solar Racking NPGT4 Details

Technical Parameter

Bottom SupportCement foundation, Helical piles
Installation Angle0-20°
Wind Load38m/s
Snow Load1.0KN/㎡
Height From the Ground300mm+
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialAL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & stainless steel SUS304
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural silver or colored according to customer requirements
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
