MRac Solar Ground Mounting System GT2

MRac solar ground mounting system GT2 is a highly pre-assembled ground mounting system that can be applied to the installation of large commercial and utility scale solar PV projects. Made of high-quality aluminum material, the Solar PV Mounting System has excellent corrosion resistance performance. The single-pile patented structure design saves installation time and cost, with good compatibility to varied solar modules.

Product Application Examples

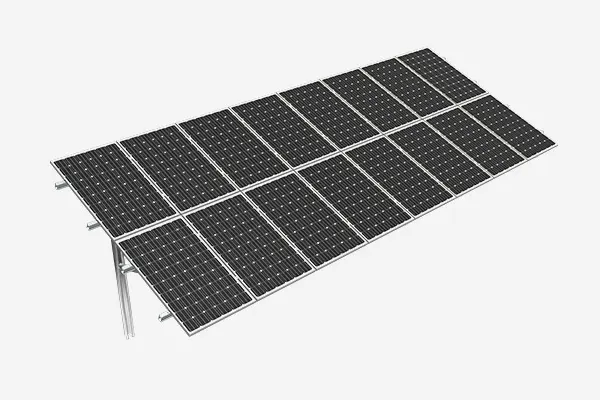

Application example of ground PV system GT2


Pre-assembled Components Save Onsite Installation Time

Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.

Structure Configuration Multi-Options

Single or double embrace bars structure configuration availableto meet varied projects requests.

Flexibility and Adjustability

The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.

Single-Pile Design

Single-pile design reduce half of the ramming time, saving the construction cost.

Bracket details

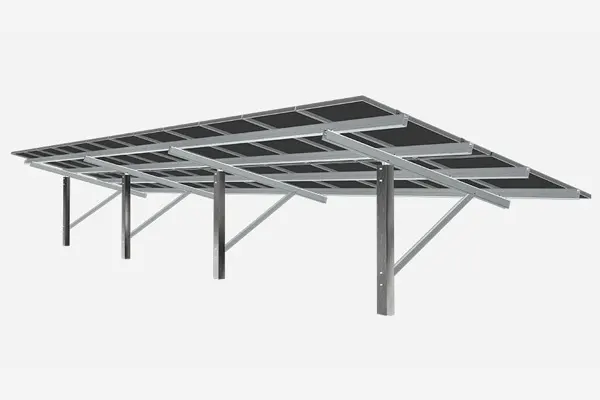

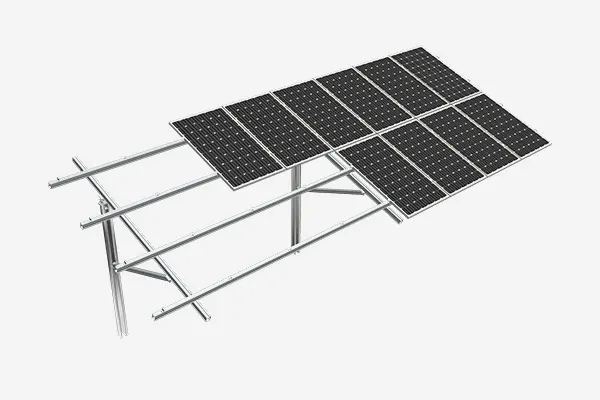

Ground Solar Racking GT2 Details
Ground Solar Racking GT2 Details

Technische Daten

Bottom SupportCement foundation
Installation Angle0-60°
Wind Load60m/s
Snow Load1.6KN/㎡
Height From the Ground500-2000mm
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialQ235B (hot-dip galvanized), AL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & stainless steel SUS304
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural silver or colored according to customer requirements
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
