Solar Racking Systems

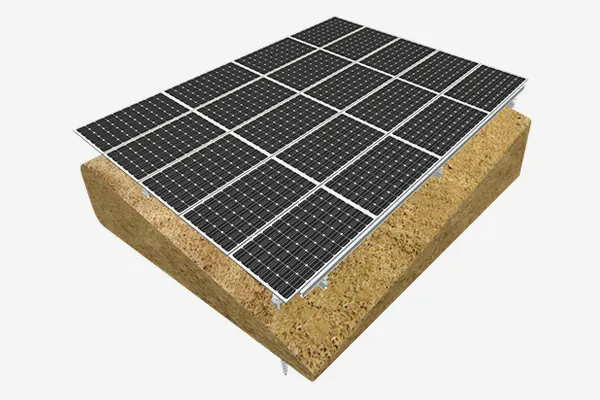

Solar Ground Mounting System for Slope (Hillside)

MRac slope (hillside) ground solar mounting system is suitable for slope concrete roof or slope land solar PV projects, with strong wind load and snow load resistance. The mounting system can achieve minor adjustment onsite with special design of an Anchor Plate to adapt to different sites. The mounting system can be adjusted from east-west and south-north directions with special connector design. The patented and certified system design ensures projects’ safety and quick installation.

Product Application Examples

Application example of Slope (Hillside) Ground Solar Mounting System


Pre-assembled Components Save Onsite Installation Time

Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.

No Drill on Portrait Beam

It improves the strength of the system to fix the portrait beam onto the post by special designed clamps, with force at the same direction of the gravity.

Flexibility and Adjustability

The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.

Foundations Match

Suitable for ground screw piles, concrete foundation and steel foundation.

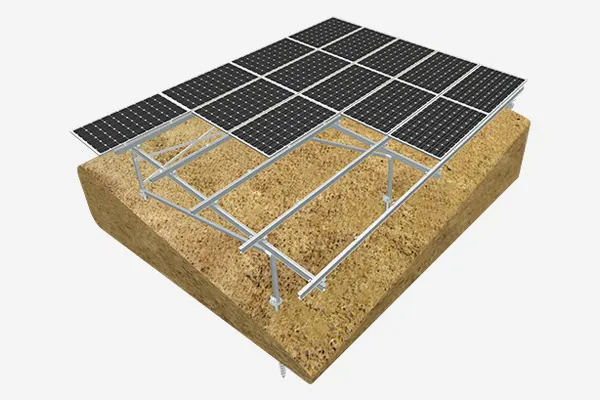

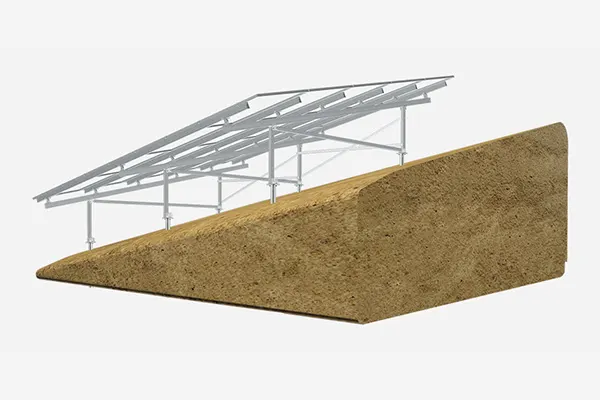

Solar Ground Mounting System for Slope (Hillside) Details

Bracket details

Solar Ground Mounting System for Slope (Hillside) Details
Solar Ground Mounting System for Slope (Hillside) Details

Technical Parameter

TypeSloping roof, Sloping ground
Bottom SupportCement foundation, Helical piles
Installation Angle0-60°
Wind Load60m/s
Snow Load1.6KN/㎡
Height From the Ground500-2000mm
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialAL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & stainless steel SUS304
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural silver or colored according to customer requirements
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
