Product Application Examples
Features
Symmetrical Design of Tilt-in-Nut and Rail Channel
No direction limitation for the nut and rail channel, improving the installation efficiency.

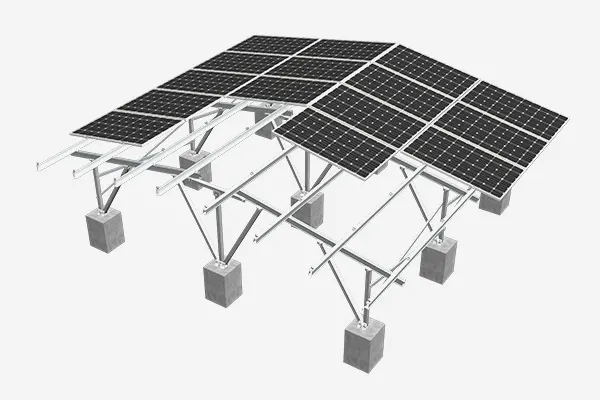

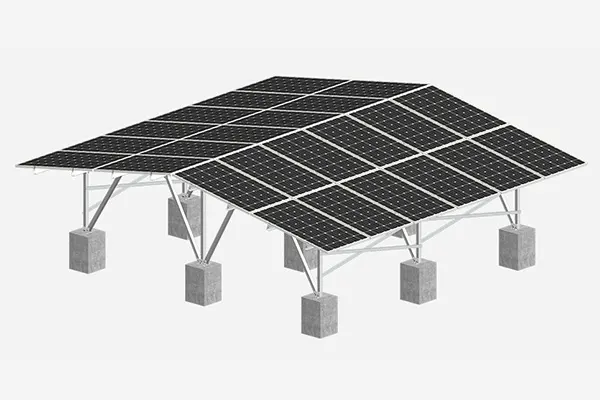

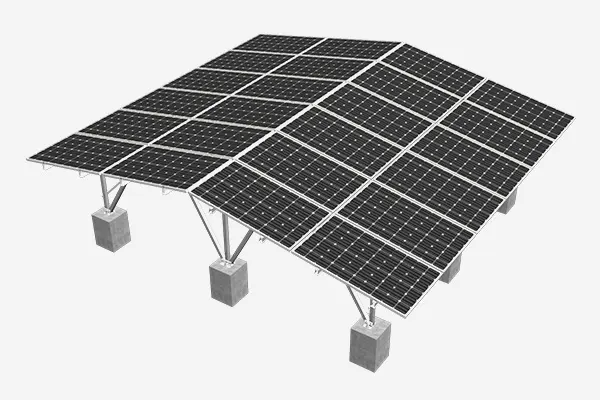

A Leading Dual-Orientation and East-West Solution
The East-West system orientation allows better generation results over the day with less generation at noon time and more during early morning and later afternoon.
Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.
Flexibility and Adjustability
The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.
Bracket details
Technical Parameter
| Type | Ground |
| Bottom Support | Cement foundation, Helical piles |
| Installation Angle | 0-30° |
| Wind Load | 60m/s |
| Snow Load | 1.6KN/㎡ |
| Height From the Ground | 500-2000mm |
| Panel Framing | framed, frameless |
| Panel Orientation | horizontal, vertical |
| Design Standards | AS/NZS 1170, DIN 1055, JIS C8955:2017, |
| International Building Code: IBC 2009, | |
| California Building Code: CBC 2010; | |
| Bracket Material | AL6005-T5 (surface anodized) |
| Fastener Material | Zinc-nickel alloy & stainless steel SUS304 |
| Parts Material | AL6005-T5 (surface anodized) |
| Bracket Color | Natural silver or colored according to customer requirements |
| Warranty | 10 years |
Service and Support
● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
