Solar Carport Mounting System (Double V-column)

MRac Solar Carport Mounting System (Double V-column) is suitable for carpark solar PV projects and high-ground clearance or extremely strong wind area projects. The system possesses an elegant appearance with all anodized aluminum material, making good utilization of land and protecting the cars to avoid damage from sunshine, wind, rainwater and snow. Structure water-proof and cable management channels are the optional functions for the MRac carport system. A patented short foundation design is available to solve limited space on existing carpark spaces.

Product Application Examples

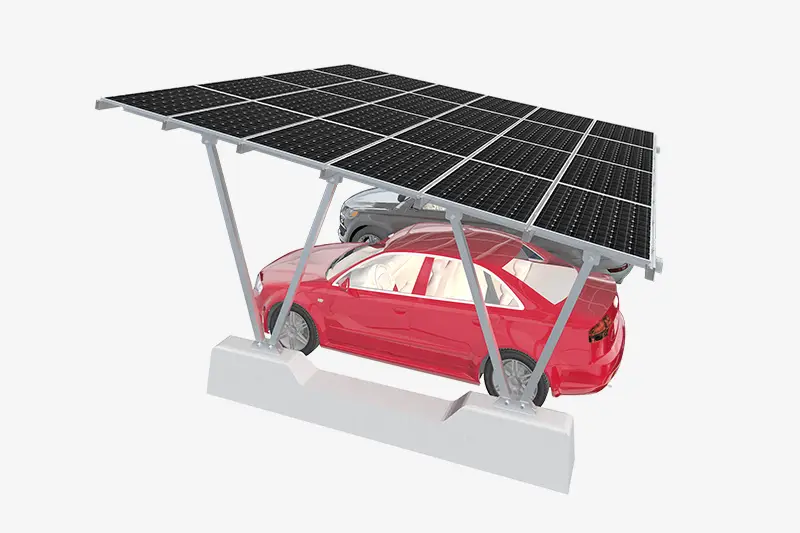

Application example of Double V-column Solar Carport Bracket


Customized Solution for your carport solar system

Design case by case, making a good utilization of ground resource and pursuit for easy and quick installation.

Pre-assembled Components Save Onsite Installation Time

Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.

Flexibility and Adjustability

The structure can be adjusted from 0 to 60 degrees with pre-machined screw holes and with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve the best yield for solar modules.

Optional Functions

Structure water-proof, cable management channels, short foundation.

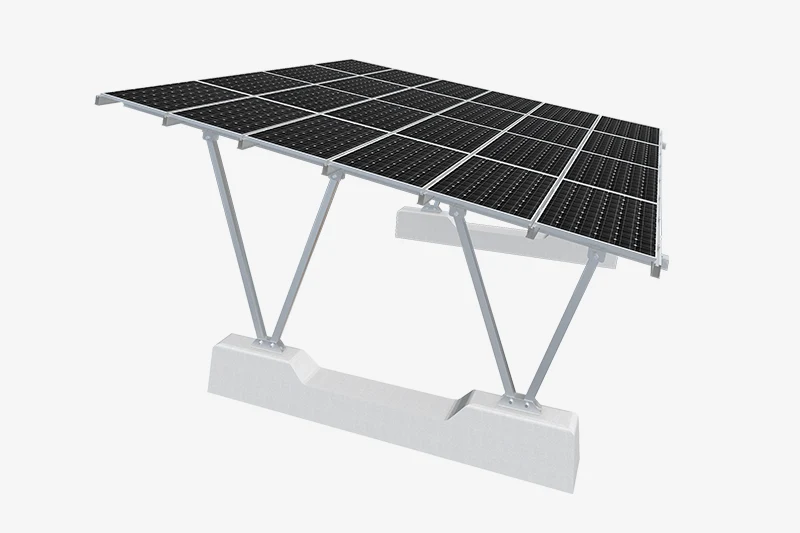

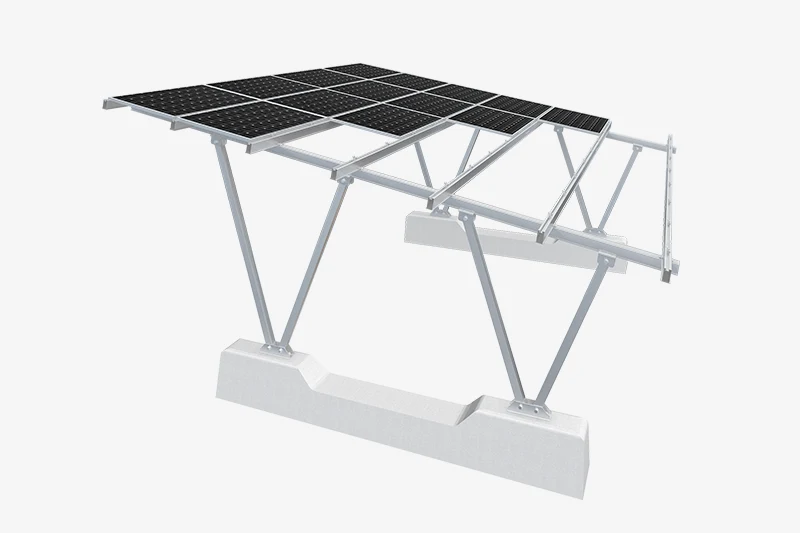

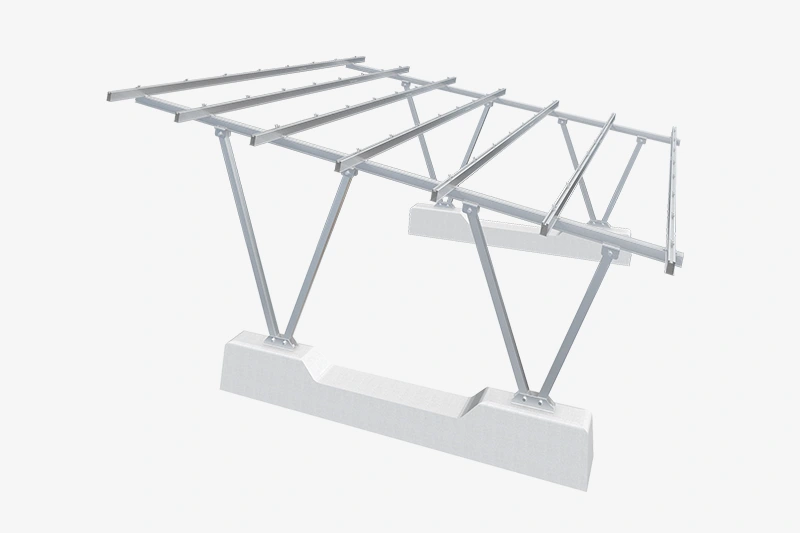

Double V-column Solar Carport Bracket Details

Bracket details

Double V-column Solar Carport Bracket Details
Double V-column Solar Carport Bracket Details

Technische Daten

Bottom SupportCement foundation
Installation Angle5-15°
Wind Load80m/s
Snow Load1.6KN/㎡
Height From the Ground1800mm+
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialAL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & stainless steel SUS304
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural silver or colored according to customer requirements
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
