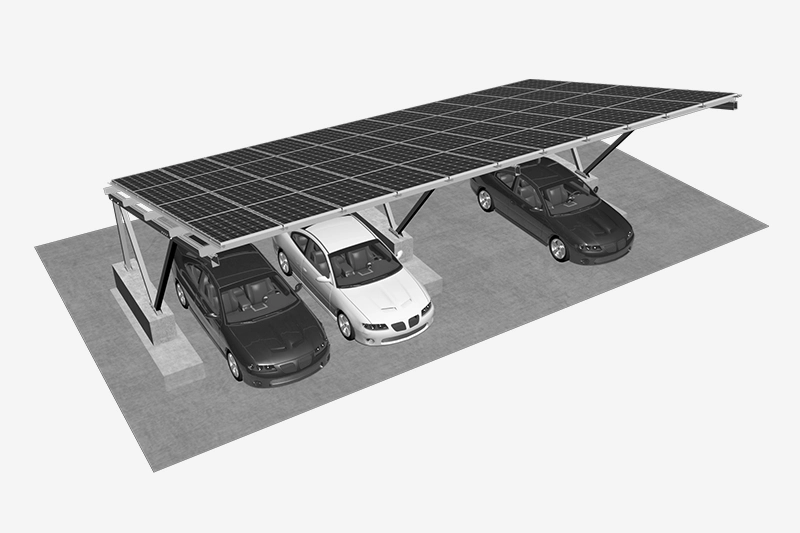

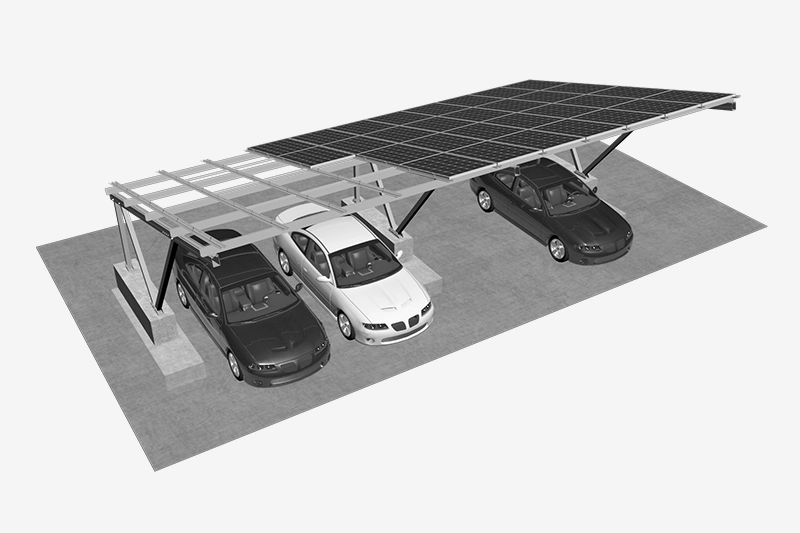

Product Application Examples
Features
Waterproof structure
New waterproof structure, equipped with water guide trough, lower maintenance cost and longer life.
Save construction costs and time
We will provide you with installation manuals and system solutions. Most of the mounts are pre-assembled in the factory; no cutting or welding is required on-site; just tighten the bolts to complete the installation; construction is fast, and less construction time can reduce project costs and easy maintenance afterward.
Fully compatible with different PV modules
It can freely and flexibly support various types of photovoltaic modules.

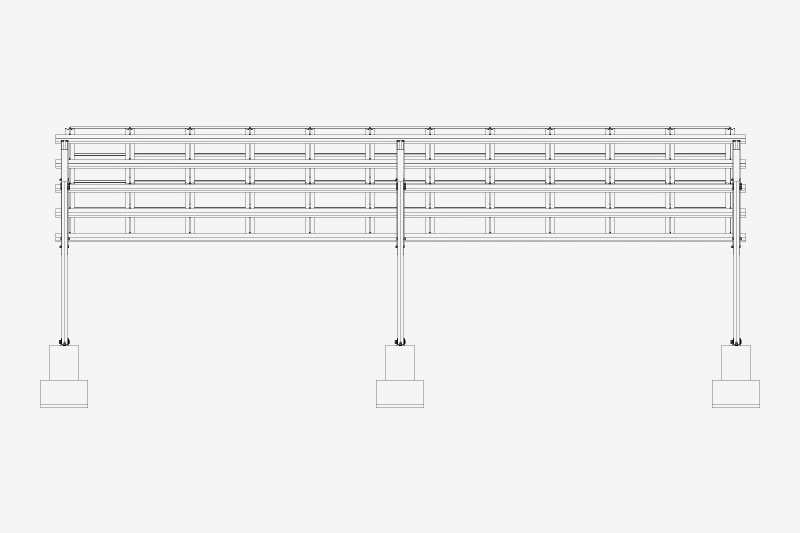

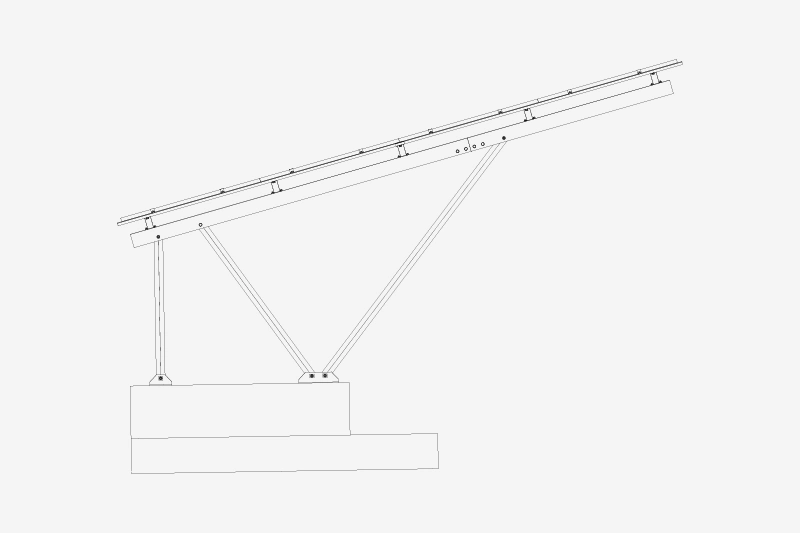

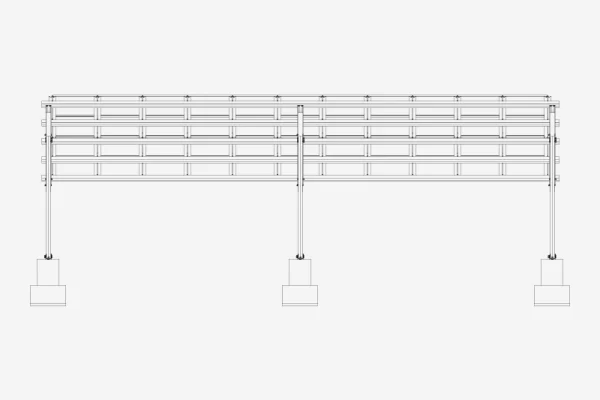

Bracket details
Technical Parameter
| Type | Ground |
| Bottom Support | Cement foundation |
| Installation Angle | 5-15° |
| Wind Load | 45m/s |
| Snow Load | 1.2KN/㎡ |
| Height From the Ground | 2000mm+ |
| Panel Framing | framed, frameless |
| Panel Orientation | horizontal, vertical |
| Design Standards | AS/NZS 1170, DIN 1055, JIS C8955:2017, |
| International Building Code: IBC 2009, | |
| California Building Code: CBC 2010; | |
| Bracket Material | AL6005-T5 (surface anodized) & Magnesium aluminum zinc |
| Fastener Material | Zinc-nickel alloy & Stainless steel SUS304 & Hot-dip galvanized |
| Parts Material | AL6005-T5 (surface anodized) |
| Bracket Color | Natural silver or colored according to customer requirements |
| Warranty | 10 years |
Service and Support
● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
