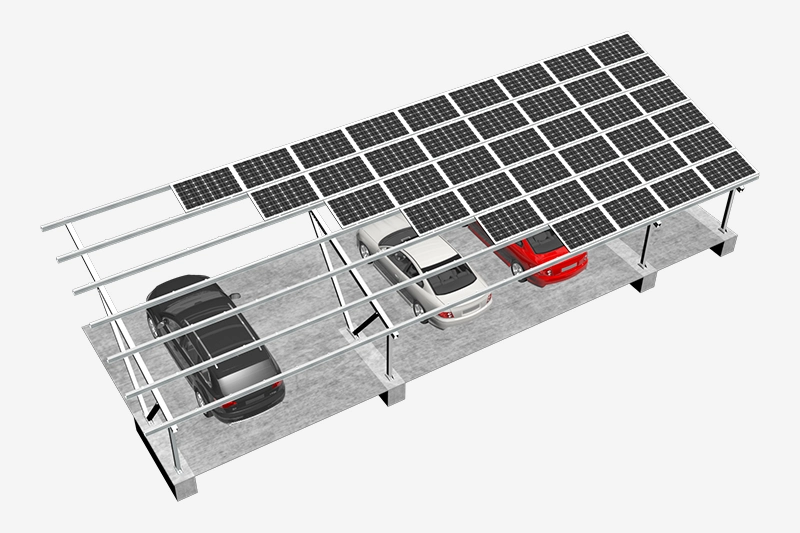

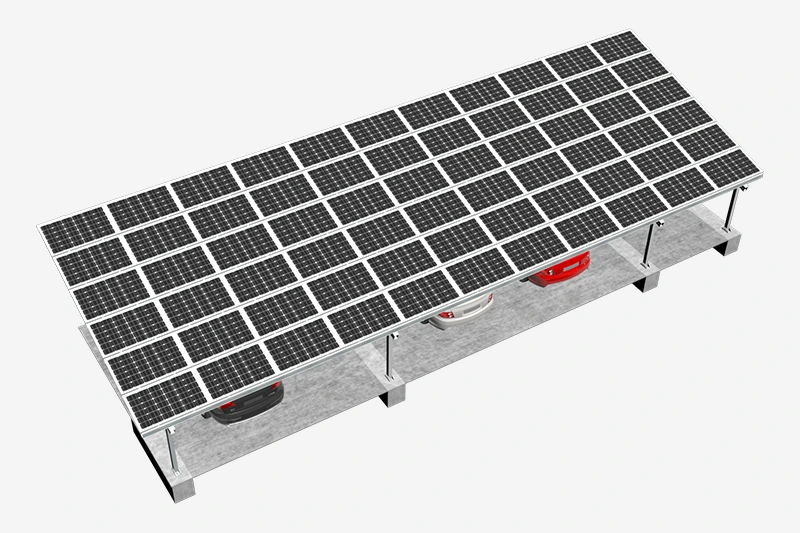

Solar Carport Mounting System (Single V-column)

MRac Solar Carport Mounting System (Single V-column) is a pre-assembled ground solar mounting system that is ideal for large commercial and utility-scale solar PV projects. The system has been developed for various photovoltaic modules and will be customized to fit into the parking lot or designed according to specific requirements. The solar Carport System can protect cars to avoid damage from sunshine, wind, rainwater, and snow. Mibet’s engineers continue to optimize the design of the system, the quality of the product and service, and also provide the best solution for your Solar Carport System.

Product Application Examples

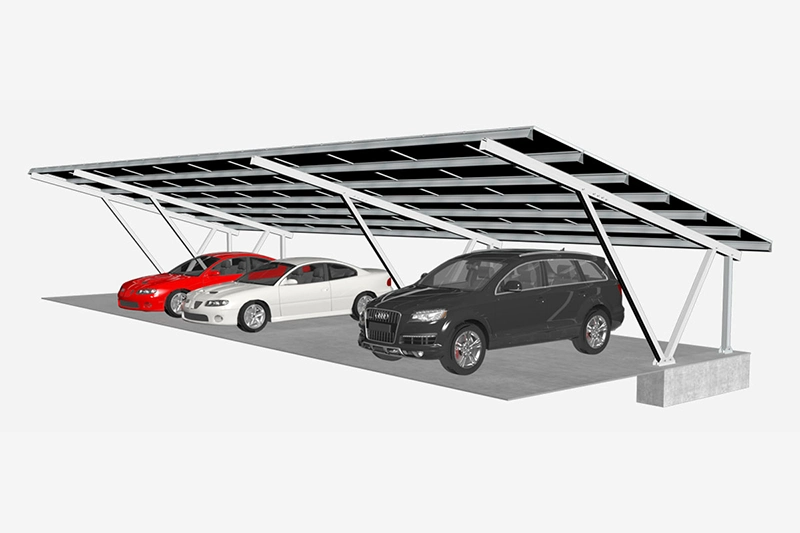

Application example of Single V-column Solar Carport Bracket


Customized Solution for your carport solar system

Design case by case, making a good utilization of ground resource and pursuit for easy and quick installation.

Save Installation Time and Labor Cost on Site

With installation manuals and system solution, the construction on site will be simple. Less construction time directly reduces project costs.

Compatible to Varied Solar Modules

With Mrac module clamps, the system compatible with most kinds of framed and frame and frameless modules.

Optional Functions

Structure water-proof, cable management channels, short foundation.

Single V-column Solar Carport Bracket Details

Bracket details

Single V-column Solar Carport Bracket Details
Single V-column Solar Carport Bracket Details

Technical Parameter

Bottom SupportCement foundation
Installation Angle5-15°
Wind Load45m/s
Snow Load1.2KN/㎡
Height From the Ground2000mm+
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialAL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & stainless steel SUS304
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural silver or colored according to customer requirements
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
