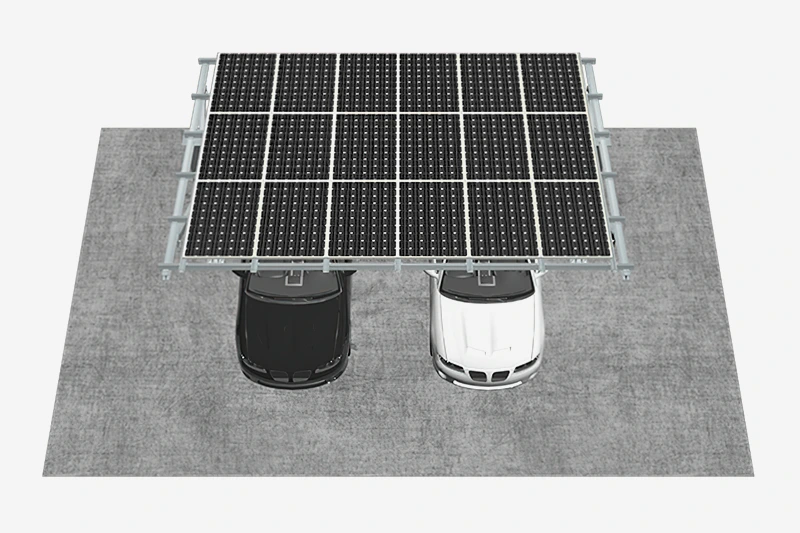

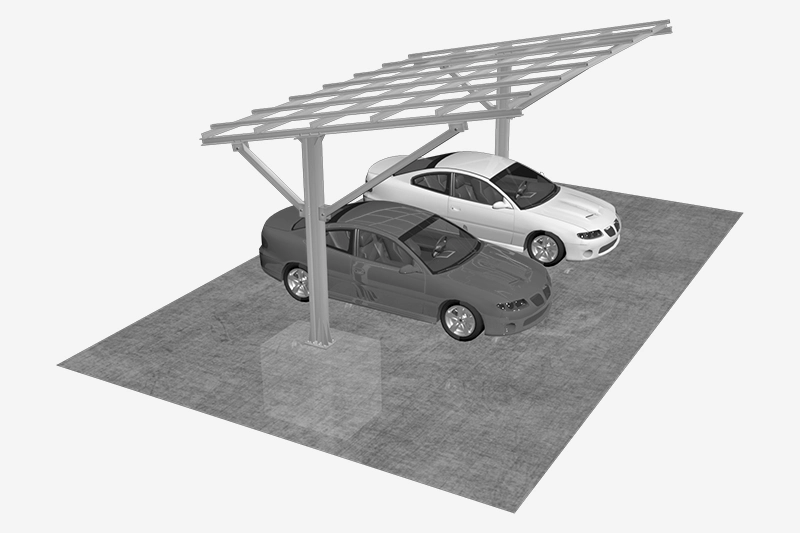

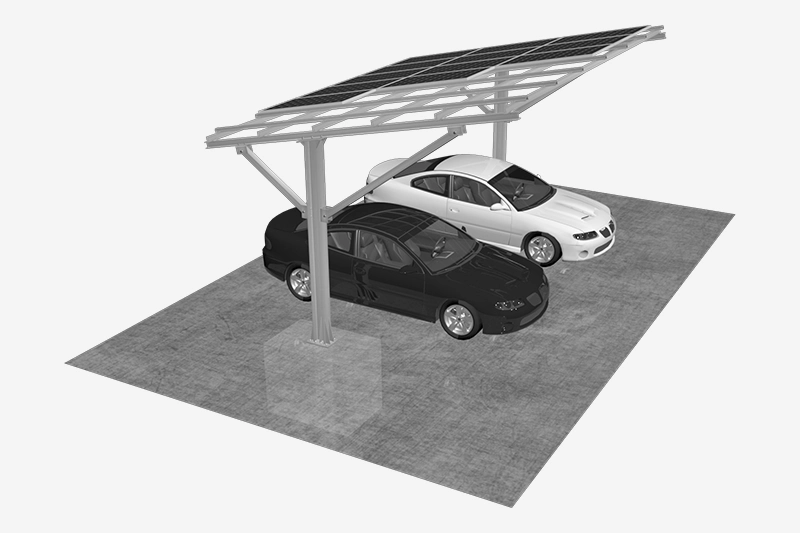

Product Application Examples
Features
Customized Solution
Design case by case, making a good utilization of ground resource and pursuit for
easy and quick installation.
Save Installation Time and Labor Cost
Pre-assembled Components Save On-site Installation Time Solution design case by case, most components pre-assembled in factory, no on-site cut and drill request, saving the on-site installation time and cost.
Compatible With Different Sizes of Solar Modules
Highly compatible with various solar modules.

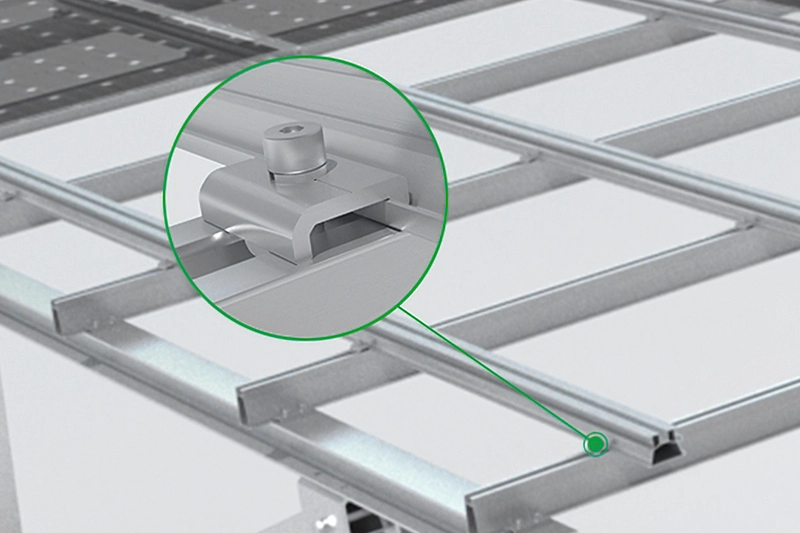

Bracket details
Technical Parameter
| Type | Ground |
| Bottom Support | Cement foundation |
| Installation Angle | 0-15° |
| Wind Load | 80m/s |
| Snow Load | 1.6KN/㎡ |
| Height From the Ground | 1600-4000mm |
| Panel Framing | framed, frameless |
| Panel Orientation | horizontal, vertical |
| Design Standards | AS/NZS 1170, DIN 1055, JIS C8955:2017, |
| International Building Code: IBC 2009, | |
| California Building Code: CBC 2010; | |
| Bracket Material | AL6005-T5 (surface anodized) |
| Fastener Material | Zinc-nickel alloy & stainless steel SUS304 |
| Parts Material | AL6005-T5 (surface anodized) |
| Bracket Color | Natural silver or colored according to customer requirements |
| Warranty | 10 years |
Service and Support
● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
