Metal Roof Standing Seam Clamp III

The primary structural material of metal roof standing seam clamp III is aluminum alloy. The clamps are firmly connected to the metal roof through professional design to achieve your installation requirements for rooftop solar projects, and we can provide you with customized design solutions.

Product Application Examples

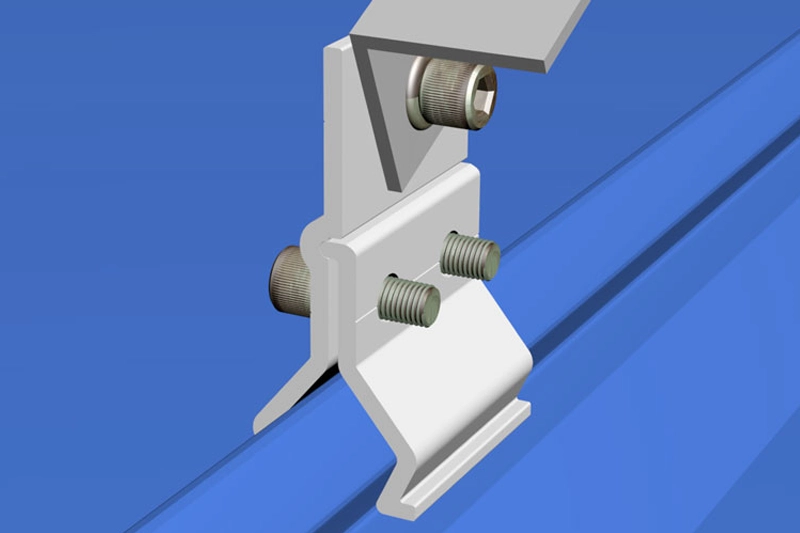

Application example of metal roof standing seam clamp III


• Universal use for different metal profiles.
• Pre-assembled to save costs.
• Clips are fixed only on the raised seam without damaging the surface of the plate.
• Strong material code aluminum 6005-T5, SUS304 fasteners.

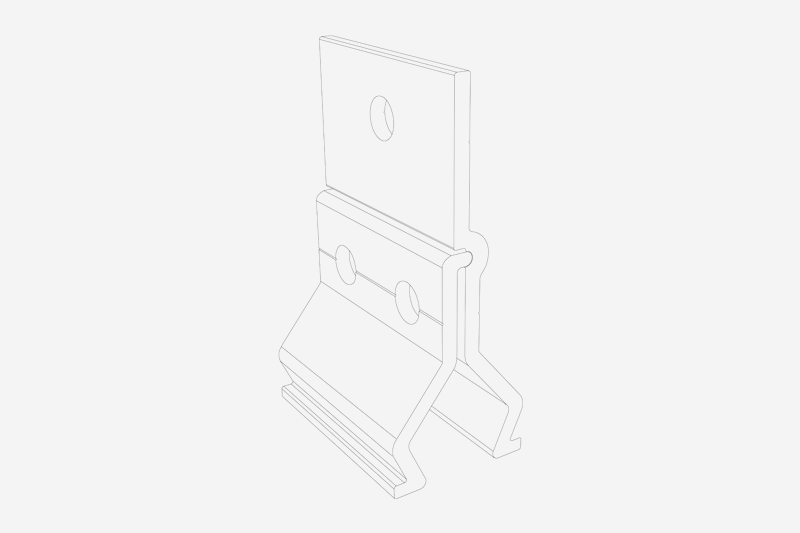

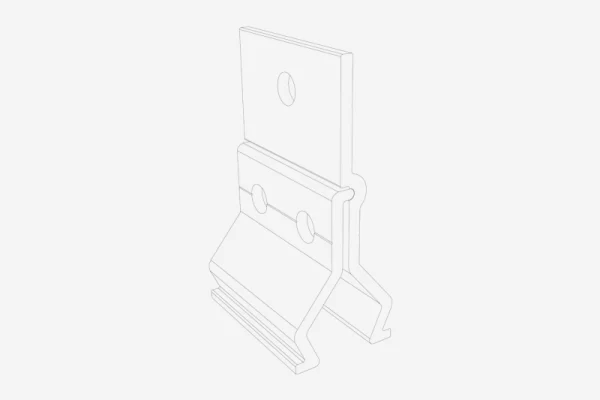

Metal Roof Standing Seam Clamp III Details

Bracket details

Metal Roof Standing Seam Clamp III Details
Metal Roof Standing Seam Clamp III Details

Technical Parameter

TypePitched Roof
Bottom SupportMetal tiles
Installation Angle0-15°
Wind Load60m/s
Snow Load1.6KN/㎡
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialQ235B (hot-dip galvanized) & AL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & SUS304 & Hot-dip galvanized
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural silver or colored according to customer requirements
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
