MRac Solar Ground Mounting System TCGT4

MRac solar ground mounting system TCGT4 is suitable for medium to large scale solar PV projects. TCGT4 bracket system is highly pre-installed and suitable for areas with high requirements of wind and snow resistance. It can be flexibly adjusted in front and rear, left and right and up and down directions. Professional structural design can ensure the stability of the bracket system.

Product Application Examples

Application example of ground PV system TCGT4


Symmetrical design of card block and slot

No directional requirement for bracket installation, improving installation efficiency.

Longitudinal beam fixing without drilling

The special pressure block is fixed on the joint, and the pressing direction is the same as the overall force direction, which greatly improves the strength.

Highly pre-assembled to save installation time

Few installation parts, highly pre-installed in the factory, without any on-site cutting or drilling, reducing on-site construction difficulty and construction time, greatly reducing project costs.

Flexible adjustment of bracket

Industry-leading professional design, can be flexibly adjusted according to the needs of the terrain, can achieve vertical, east-west, south-west, north-south adjustment.

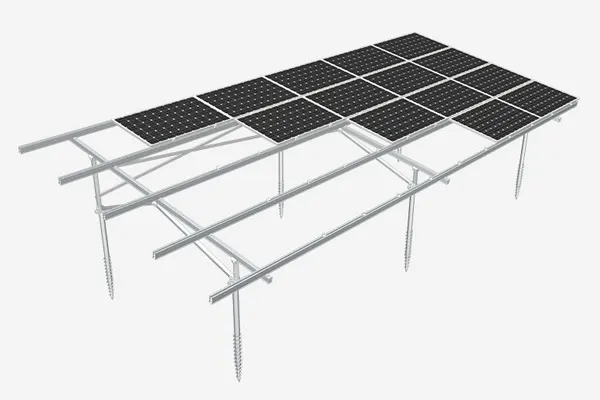

Ground Solar Racking TCGT4 Details

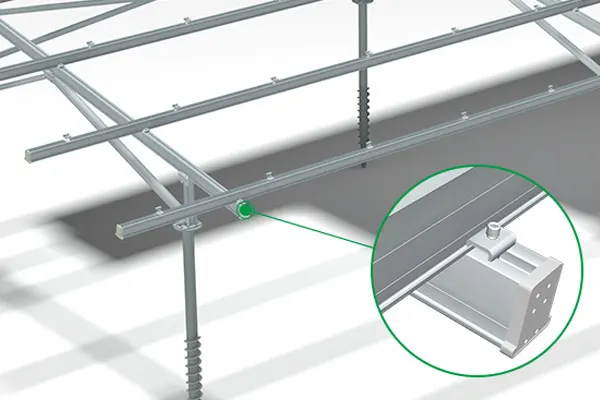

Bracket details

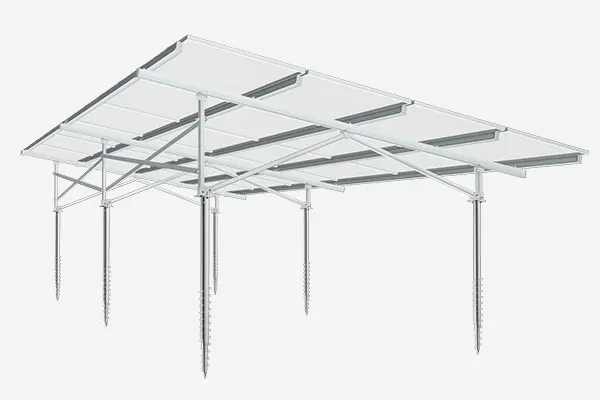

Ground Solar Racking TCGT4 Details

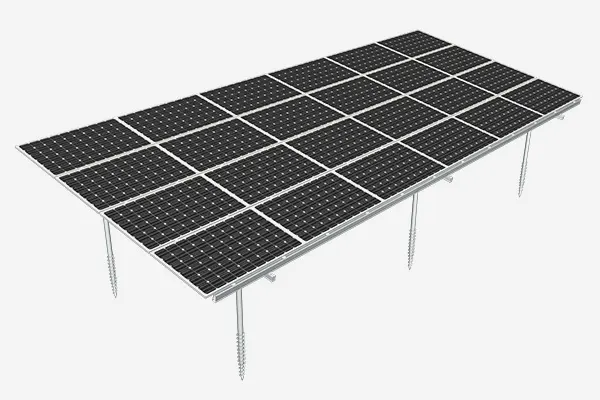

Ground Solar Racking TCGT4 Details

Technical Parameter

Bottom SupportCement foundation, Helical piles
Installation Angle0-60°
Wind Load60m/s
Snow Load1.6KN/㎡
Height From the Ground500-2000mm
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialAL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & stainless steel SUS304
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural silver or colored according to customer requirements
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
