MRac Solar Ground Mounting System PGT8

MRac solar ground mounting system PGT8 is optimized from GT8, a cost-effective solution applied for the installation of large-scale and utility-scale solar PV power plant. Main components are made of anodized aluminum with good performance of structure strength, stability and anti-corrosion, compatible with varied solar modules. Patented and certified solar PV system design ensure projects safety and quick installation.

Product Application Examples

Application example of ground PV system PGT8


Symmetrical Design of Tilt-in-Nut and Rail Channel

No direction limitation for the nut and rail channel, improving the installation efficiency.

Dual-Pile Design

Dual-pile design, no embracing bar request, saving material cost.

No Drill on Portrait Beam

It improves the strength of the system to fix the portrait beam onto the post by special designed clamps, with force at the same direction of the gravity.

Compatible to Varied Solar Modules

With MRac module clamps, the system compatible with most kinds of framed 60-cell, 72-cell, half-cut cells modules and frameless modules.

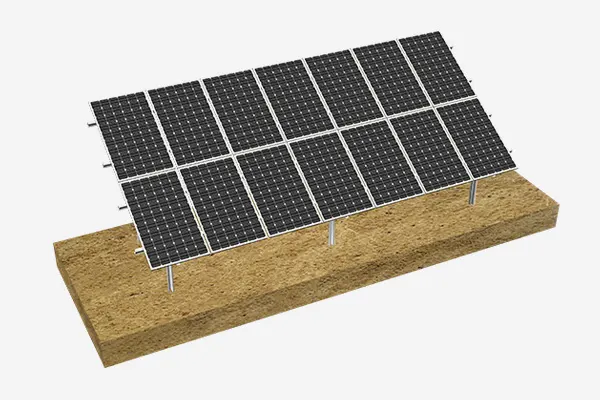

Ground Solar Racking PGT8 Details

Bracket details

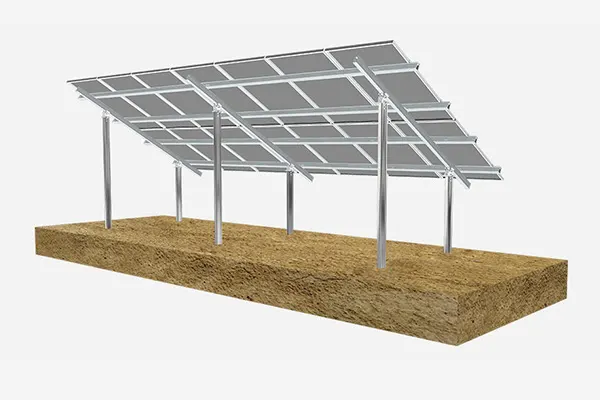

Ground Solar Racking PGT8 Details

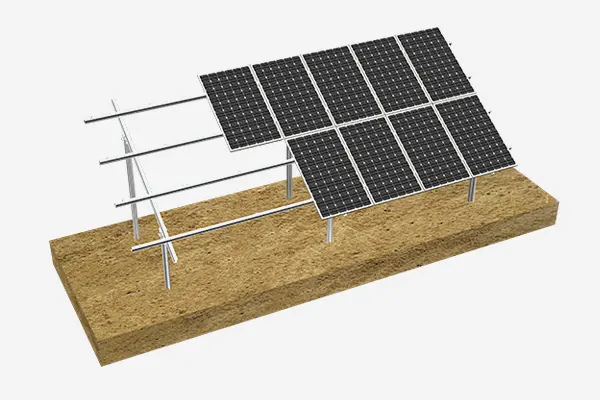

Ground Solar Racking PGT8 Details

Technical Parameter

Bottom SupportCement foundation
Installation Angle0-60°
Wind Load60m/s
Snow Load1.6KN/㎡
Height From the Ground500-2000mm
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialQ235B (hot-dip galvanized), AL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & stainless steel SUS304
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural silver or colored according to customer requirements
Warranty10 years

PGT8 Related Projects

20 MW Ground-mounted PV Project in Miyagi Prefecture, Japan
Miyagi Prefecture, Japan 20 MW

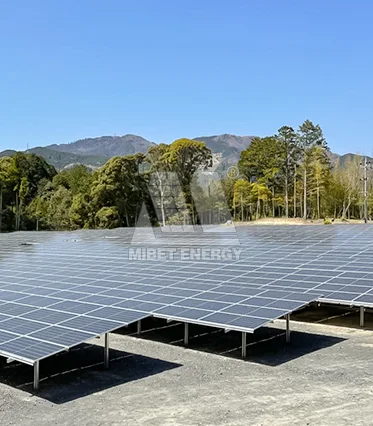

28.5 MW Ground-mounted PV Project in Suzuka, Japan
Suzuka, Japan 28.5 MW

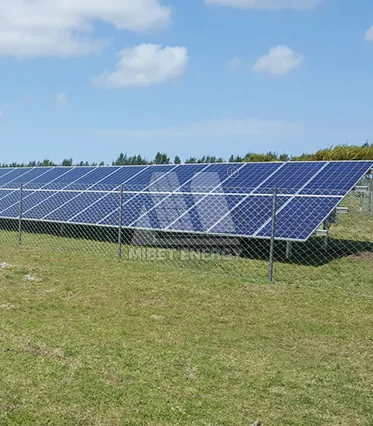

52.8 KW Ground-mounted Solar Project in Uruguay
Uruguay 52.8 KW

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
