MRac Solar Ground Mounting System GT6

MRac solar ground mounting system GT6 suits for medium to large scale solar PV projects. With optimized structure design, GT6 minimize the quantity of beam to save cost based on structure strength guarantee. The Solar Panel Racks Ground Mounting System can achieve minor adjustment onsite with special design of Anchor Plate to adapt to different sites. Patented and certified system design ensure projects safety and quick installation.

Product Application Examples

Application example of ground PV system GT6


Pre-assembled Components Save Onsite Installation Time

Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.

No Drill on Horizontal Rails

It improves the strength of the system to fix the rails onto the post by special designed clamps, with force at the same direction of the gravity.

No Portrait Beam Design

Saving material cost, smaller package lead to lower packing and freight cost.

Flexibility of Foundations Match

Suitable for ground screw piles, concrete foundation and steel foundation.

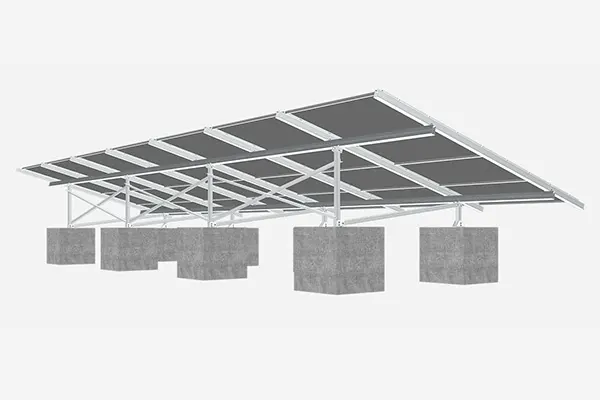

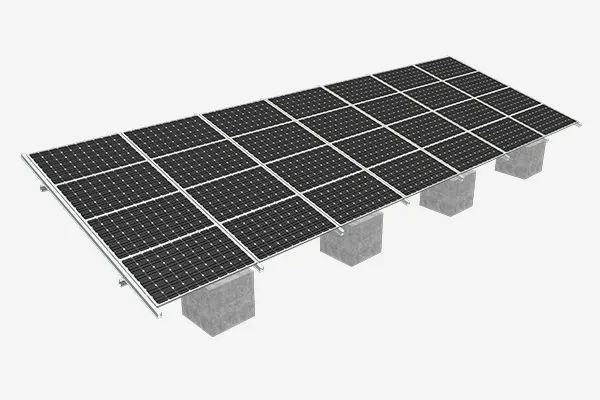

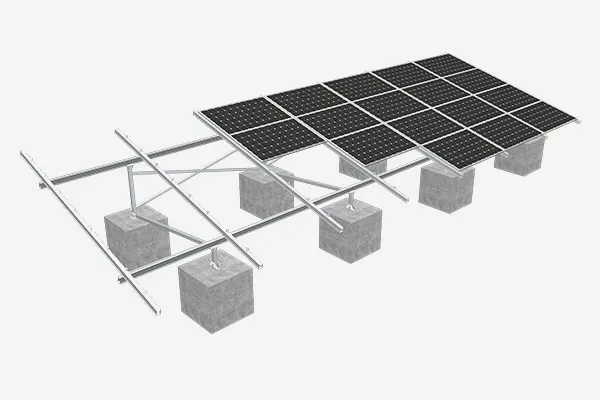

Ground Solar Racking GT6 Details

Bracket details

Ground Solar Racking GT6 Details
Ground Solar Racking GT6 Details

Technical Parameter

Bottom SupportCement foundation, Helical piles
Installation Angle0-60°
Wind Load60m/s
Snow Load1.6KN/㎡
Height From the Ground500-2000mm
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialAL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & stainless steel SUS304
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural silver or colored according to customer requirements
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
