MRac Solar Ground Mounting System GT1

MRac solar ground mounting system GT1 is suitable for large-scale and utility-scale solar PV power plants. The main components are made of hot-dip galvanized steel, with good performance of structure strength, stability and anti-corrosion, compatible with varied solar modules. Patented and certified solar system design ensure projects’ safety and quick installation.

Product Application Examples

Application example of ground PV system GT1

Features

System Compatibility

Suitable for different kinds of lands with high use ratio With MRac module clamps, the system compatible with most kinds of framed 60-cell, 72-cell, half-cut cells modules and frameless modules.

Pre-assembled Components Save Onsite Installation Time

Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.

Flexibility and Adjustability

The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.

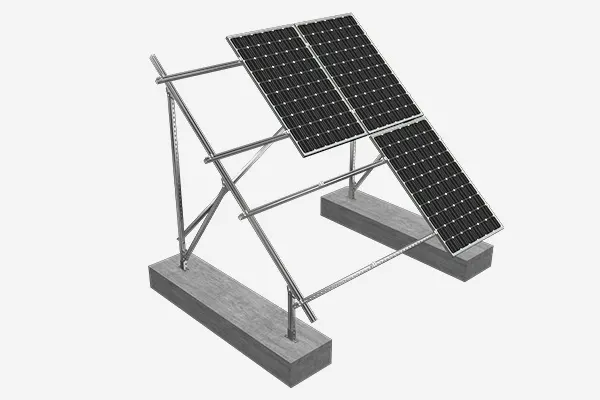

Ground Solar Racking GT1 Details

Bracket details

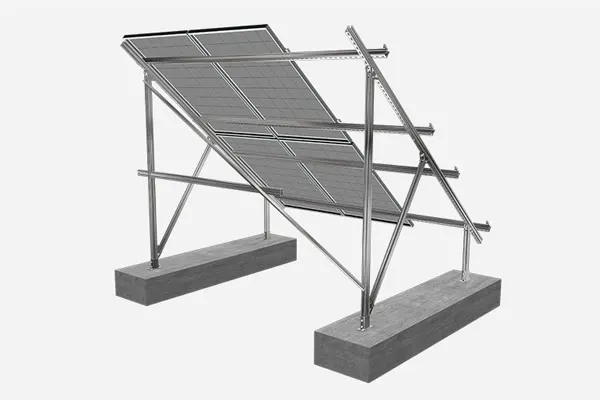

Ground Solar Racking GT1 Details

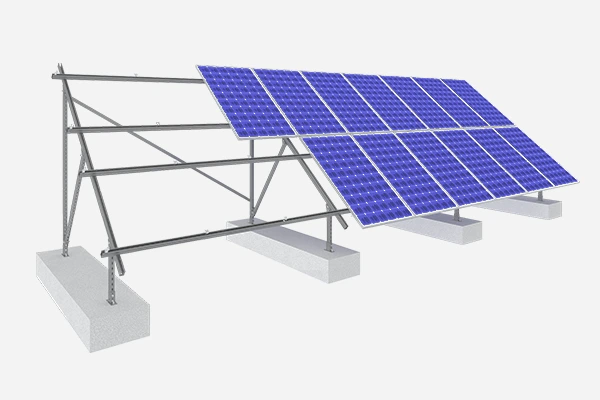

Ground Solar Racking GT1 Details

Technical Parameter

TypeRoof, Ground
Bottom SupportCement foundation, Helical piles
Installation Angle0-60°
Wind Load60m/s
Snow Load1.6KN/㎡
Height From the Ground500-2000mm
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialQ235B (hot-dip galvanized), AL6005-T5 (surface anodized)
Fastener MaterialHot-dip galvanized & Zinc-nickel alloy & stainless steel SUS304
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural silver or colored according to customer requirements
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
