Solar Racking Systems

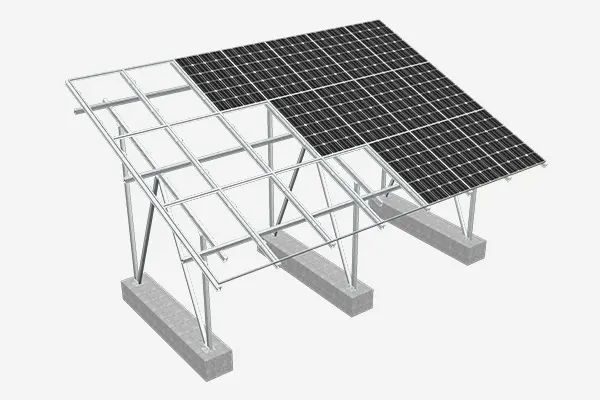

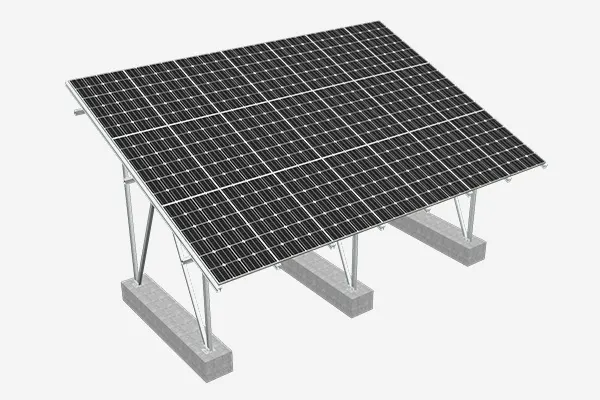

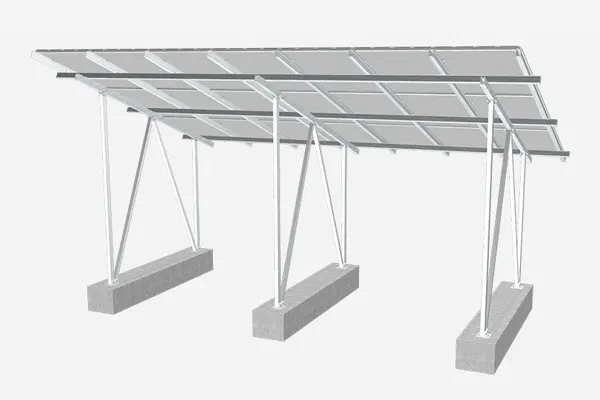

Ground Solar Panel Waterproof Mounting System

MRac ground solar panel waterproof mounting system is suitable for large-scale and utility-scale solar PV power plants. The main components are made of hot-dip galvanized steel, with good performance of structure strength, stability and anti-corrosion, compatible with varied solar modules. Patented and certified solar system design ensures projects’ safety and quick installation.

Product Application Examples

Application example of ground solar waterproof mounting system


Pre-assembled Components Save Onsite Installation Time

Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.

Downward Module installation

Fixing clamps under the solar module frames with downward module clamps improve the module installation efficiency, workers no need to climb onto the panel, effectively save the installation time.

Flexibility and Adjustability

The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.

Structure Waterproof

Structure waterproof beam design improves the anti-leaking and drainage capacity.

Ground Solar Waterproof Racking System Details

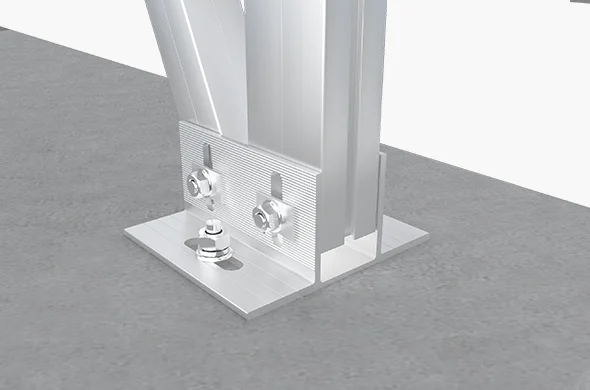

Bracket details

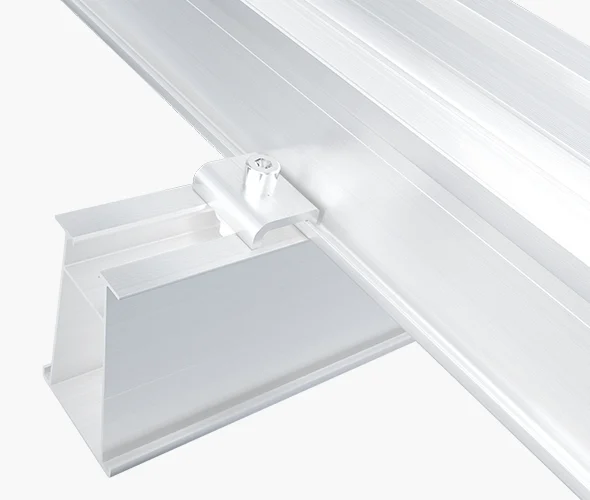

Ground Solar Waterproof Racking System Details

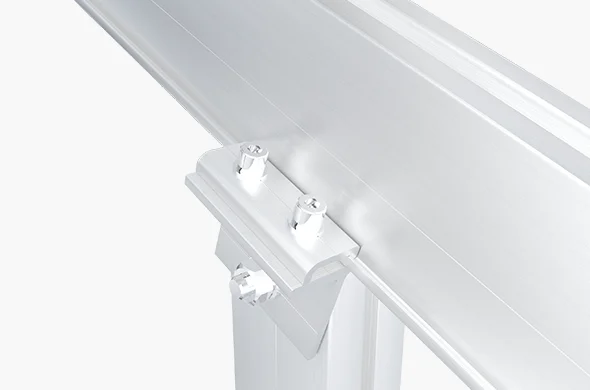

Ground Solar Waterproof Racking System Details

Technische Daten

Bottom SupportCement foundation, Helical piles
Installation Angle0-15°
Wind Load60m/s
Snow Load1.6KN/㎡
Height From the Ground500-2000mm
Panel Framingframed
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialAL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & stainless steel SUS304
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural silver or colored according to customer requirements
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
