Tilted Single Axis Solar Tracker

Tilted single axis trackers are all solar trackers with an axis of rotation between horizontal and vertical. Tracker tilt angles are frequently limited in order to reduce the wind profile and the elevated end’s height from the ground. Field installations must account for the effect of shading in order to avoid unnecessary losses and maximize area utilization.

MRac tilted single axis solar tracker is applied to the large-scale solar PV power plant at latitudes higher than 40-degree areas. One motor and control system makes the whole solar module array track automatically. When a module follows the sun, it moves in a symmetric cylindrical motion around the axis of rotation.

Product Application Examples

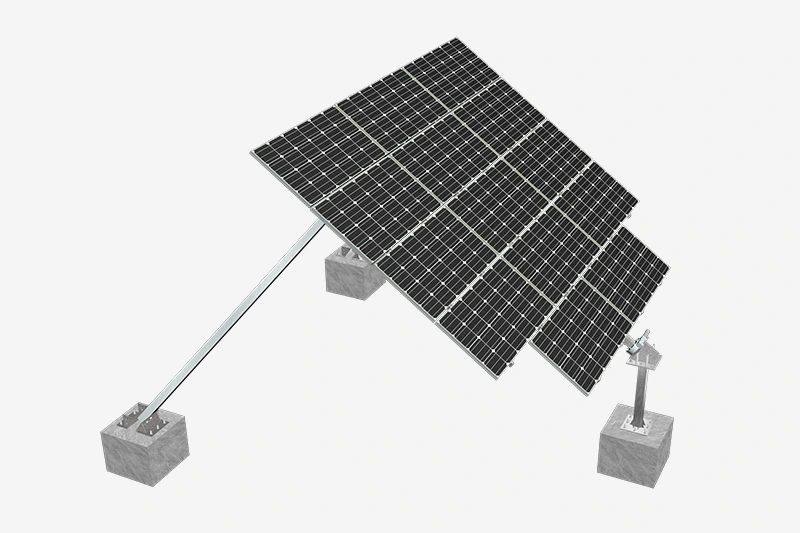

Application example of tilted single axis solar tracker


Automatic Tracking without Manual Debugging

With good environmental adaptability, no affection by rainy and cloudy weather Wide Range (+/-45 degree) of tracking angle improves the power generation 20% - 30% higher than fixed system.

Customized System Configuration Available

It can be designed according to customer’s specific requirement.

Equipped with GPS to Ensure the Accuracy of Time

High weather resistance contributes to safe and stable operation between -40℃-85℃ The excellent electromagnetic compatibility design makes the system stable and reliable.

Remote Communication, Group Control for Multi-Equipment

Automatically identify the failure, with automatic self-protection and alarm. Quadruple over-current protection ensures the safety of the whole system.

Tilted Single Axis Solar Tracker Details

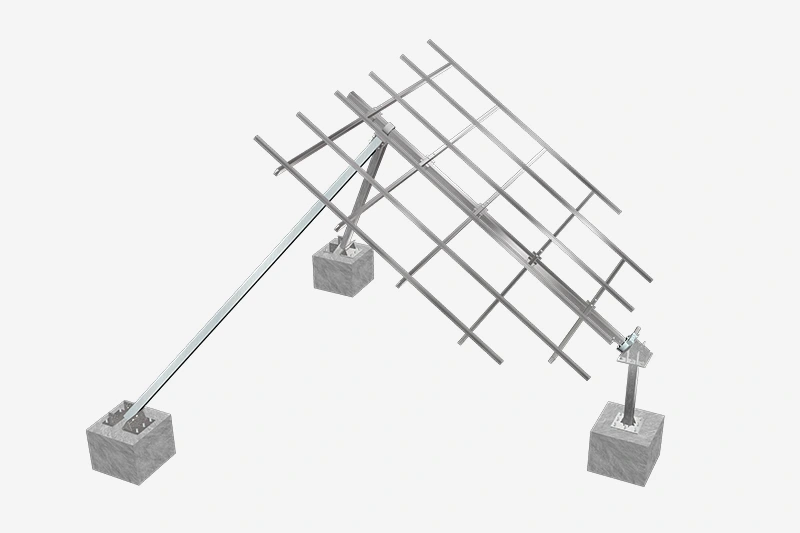

Bracket details

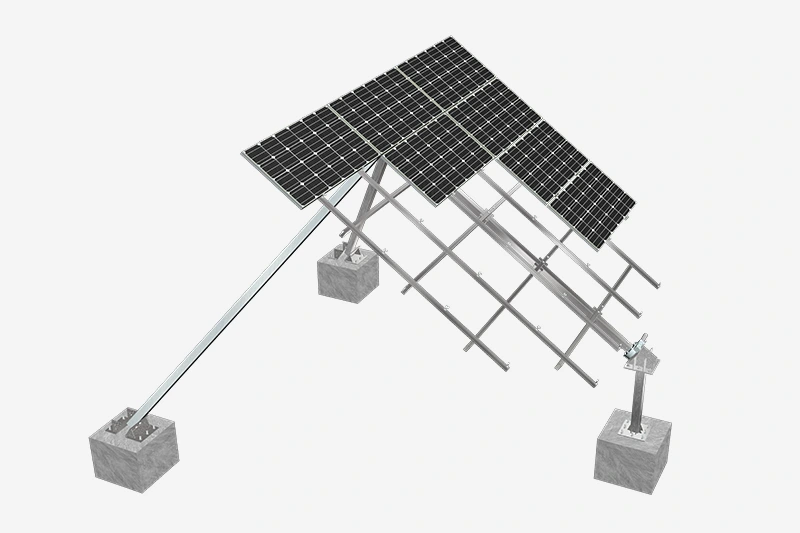

Tilted Single Axis Solar Tracker Details

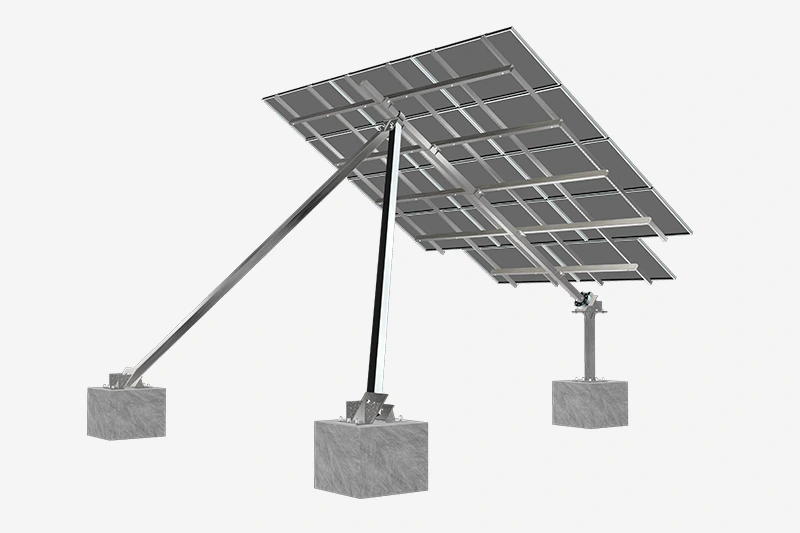

Tilted Single Axis Solar Tracker Details

Technical Parameter

GPSAutomatic acquisition of latitude, longitude and precise time.
Installation capacity<10KWP
Tracking Angle±45°
Wind resistance<22m/s
Tracking algorithmsAstronomical algorithm + inclination sensor, tracking accuracy of ±1 degree.
Height From the Ground400mm+
Electricity supplyDC24V
Power TransmissionGyratory reduction device
Bracket MaterialQ235B (hot-dip galvanized) , AL6005-T5 (surface anodized)
Control SystemMicrocontroller
Protection levelIP65
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
