MRac Single Axis Solar Tracker TR2

Implementing single axis trackers in your next solar project can provide financial benefits that outweigh the trackers’ additional cost. If the trackers are installed in an ideal environment, they will add value to the solar system by increasing energy production and offsetting the initial costs.

The MRac single axis solar tracker TR2 is primarily used in large solar power plants located in low-latitude areas. Compared to a fixed solar system, single axis tracker technology increases energy production by up to a third. This allows for more efficient use of the land on which the project is built, as the project can generate more power in a smaller space.

Product Application Examples

Application example of single axis solar tracker tr2


Automatic Tracking without Manual Debugging

With good environmental adaptability, no affection by rainy and cloudy weather Wide Range (+/-45 degree) of tracking angle improves the power generation 20% - 30% higher than fixed system.

Customized System Configuration Available

It can be designed according to customer's specific requirement.

Equipped with GPS to Ensure the Accuracy of Time

High weather resistance contributes to safe and stable operation between -40℃-85℃ The excellent electromagnetic compatibility design makes the system stable and reliable.

Remote Communication, Group Control for Multi-Equipment

Automatically identify the failure, with automatic self-protection and alarm. Quadruple over-current protection ensures the safety of the whole system.

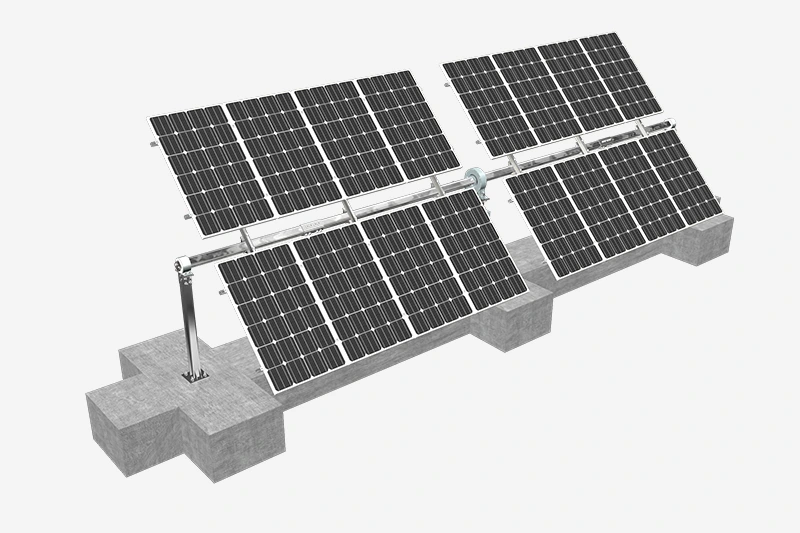

Single Axis Solar Tracker TR2 Details

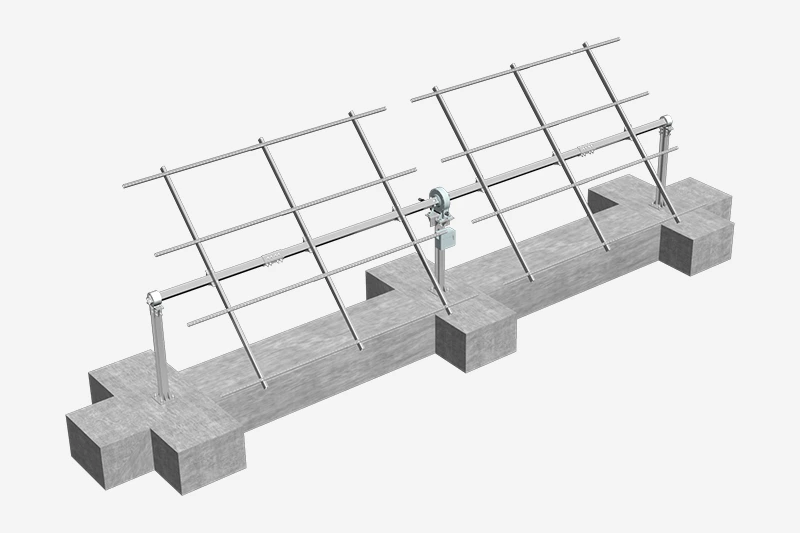

Bracket details

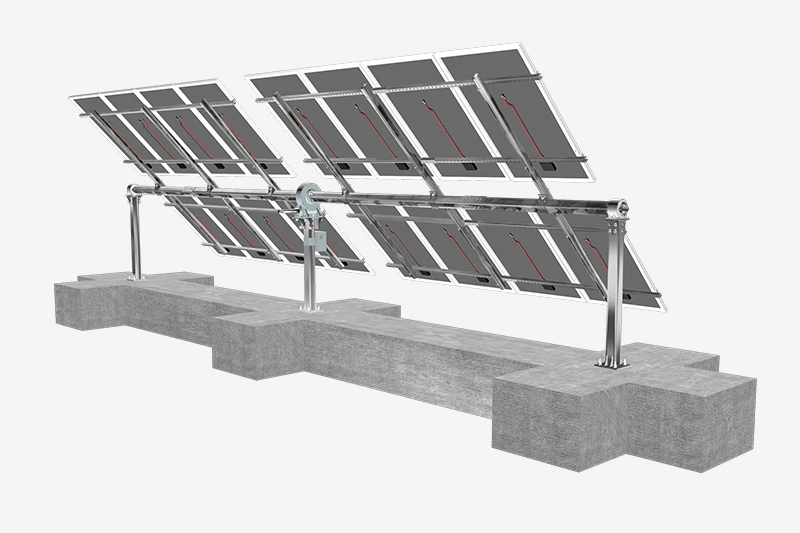

Single Axis Solar Tracker TR2 Details

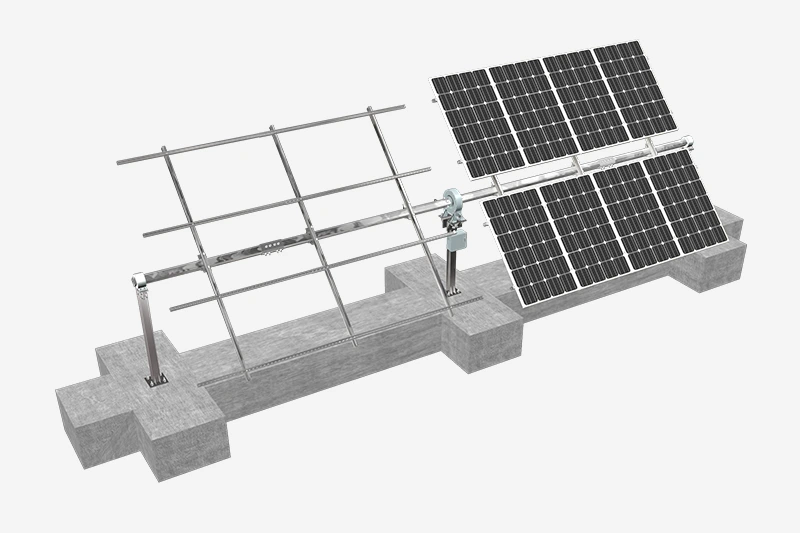

Single Axis Solar Tracker TR2 Details

Technical Parameter

GPSAutomatic acquisition of latitude, longitude and precise time.
Installation capacity<25KWP
Tracking Angle±60°
Wind resistance<22m/s
Tracking algorithmsAstronomical algorithm + inclination sensor, tracking accuracy of ±1 degree.
Height From the Ground400mm+
Electricity supplyDC24V
Power TransmissionGyratory reduction device
Bracket MaterialQ235B (hot-dip galvanized) , AL6005-T5 (surface anodized)
Control SystemMicrocontroller
Protection levelIP65
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
