Solar Panel Mounting Rail DC-H50

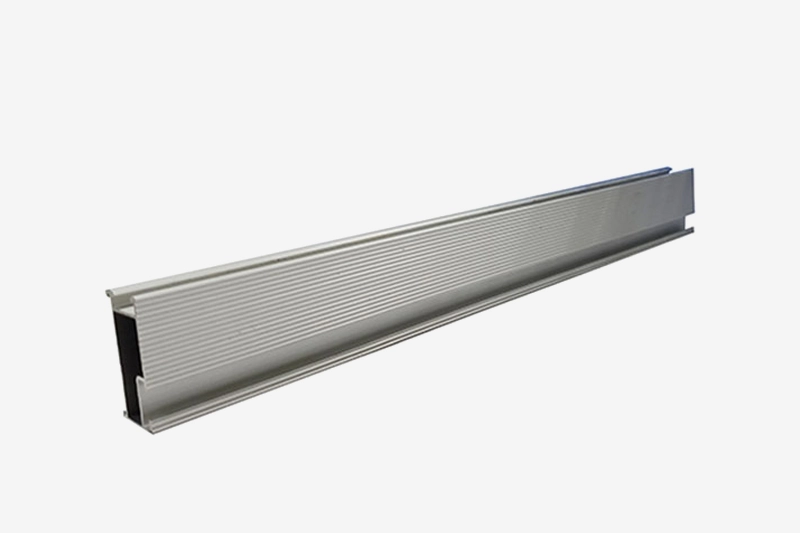

The MRac Solar Panel Mounting Rail DC-H50 is constructed of anodized aluminum and is available in standard and customizable lengths, offering an innovative design in silver and black to support solar panels with greater strength for universal roof mounting.

Product Application Examples

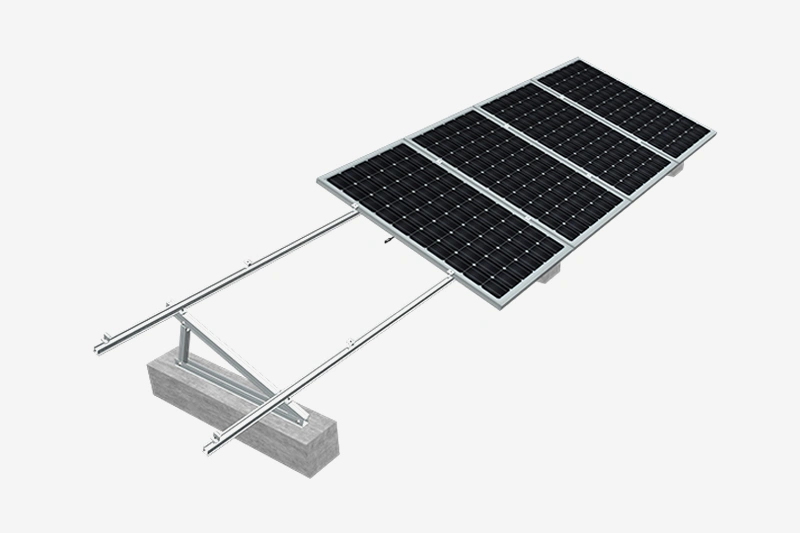

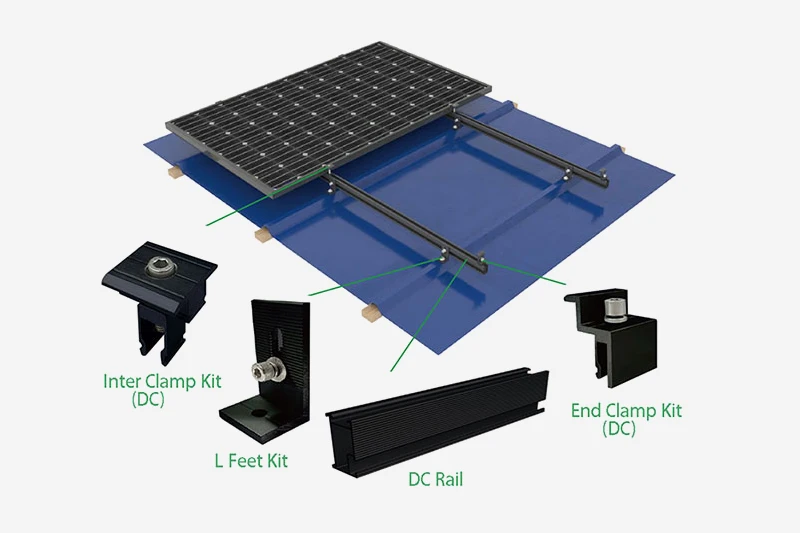

Application example of solar panel mounting rail dc h50


Suitable for different roofs

With the flexibility to choose different matching components according to requirements, the track is also suitable for other types of roofs in addition to tile roofs.

Save installation time and cost

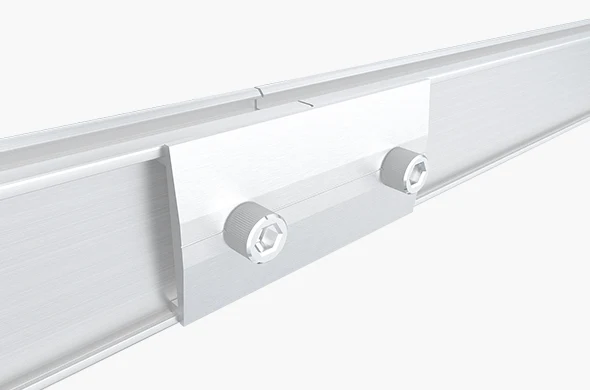

The rail splicing kit can be easily connected, and the tilt nut bolt is easy to install, saving time and being cost-effective.

Compatible with different types of solar modules

H50 rails are compatible with different types of solar modules, including framed or frameless modules.

Solar Panel Mounting Rail DC-H50 Details

Bracket details

Solar Panel Mounting Rail DC-H50 Details
Solar Panel Mounting Rail DC-H50 Details

Technical Parameter

Installation Angle0-15°
Wind Load60m/s
Snow Load1.6KN/㎡
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialQ235B (hot-dip galvanized), AL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & SUS304 & Hot-dip galvanized
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural or Customized
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
