Adjustable Solar Panel Tilt Mounting Brackets

What Are Adjustable Solar Panel Tilt Mounting Brackets?

Adjustable solar panel tilt mounting brackets are mechanical supports that hold a PV module or mounting rail at a selected inclination. They are sometimes sold as tilt legs or tilt kits.

The tilt angle is the angle between the module plane and the horizontal. On a sloped roof, roof pitch and bracket angle combine to give the final module tilt.

The simple case is a module tilted along the slope, with the bracket angle measured from the roof surface. If the module faces downslope, the roof pitch adds to the bracket angle. If the bracket turns it to face upslope, as on a north-facing roof in the Northern Hemisphere, the roof pitch is subtracted. Either way, the angle marked on the bracket differs from the final module tilt by the full roof pitch. A module that faces across the slope does not follow this simple sum, so its final tilt and azimuth need to be calculated.

How Adjustable Solar Panel Tilt Brackets Work

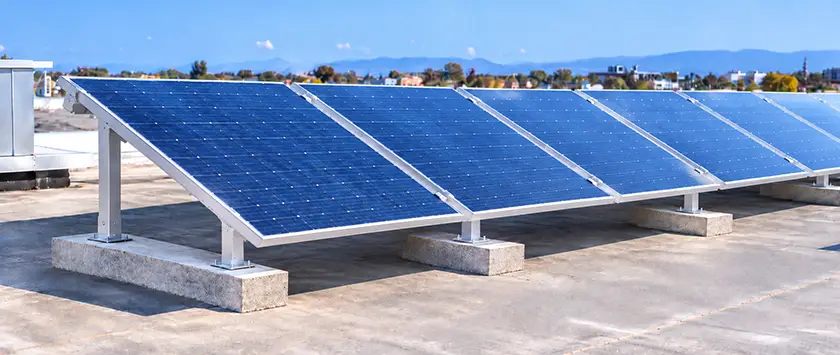

An adjustable bracket tilts the module by holding one support higher than the other. One edge of the module or rail stays on the lower support, and the other edge is raised to one of the allowed positions.

Rear Leg Height and Support Spacing

Locking the Tilt Angle

Once the joints are secured, the bracket works as a fixed-tilt structure, and the locking connection carries load like any other structural joint. Pinned or through-bolted joints at fixed holes carry load in bearing. A slotted joint holds its position through clamping friction from bolt preload. If a slotted joint loses preload, repeated wind gusts can let the leg slip gradually along the slot. The tilt then drifts from its set value, and the array no longer matches the clearances and loads assumed in the design.

How Tilt Changes the Structural Loads

At a higher tilt, the module presents a larger projected area to the wind, and the resultant force acts higher above the base. Both effects tend to increase the overturning moment at the base connection and the forces in the support legs. The actual pressures depend on wind direction, roof zone, array position, and shielding, and are calculated with the applicable wind design method.

Where Are Adjustable Solar Panel Tilt Mounting Brackets Used?

Adjustable brackets are used where the mounting surface does not give the module its target tilt, or where the array may need more than one angle during its service life.

On a flat or low-slope roof, increasing the tilt generally increases the uplift and sliding forces on the rows. Ballasted systems resist those forces with more ballast, and the roof has to carry the extra weight. On existing buildings, roof capacity is worth confirming early, because the original design may not have allowed for a PV array.

Metal roofs add a second interface below the tilt frame. The roof attachment is selected for the seam or rib profile and carries the uplift and shear from the raised frame, and the tilt frame bolts to the attachment's connection point. A steeper setting often increases the load on each attachment. Attachment spacing may then need to be reduced, increasing the number of roof attachments.

How Do You Choose the Right Solar Panel Tilt Angle?

Start with the site's solar resource, then check the angle against row spacing, usable area, wind and snow loads, and maintenance access.

Energy Modeling Sets the Starting Point

For a fixed array, energy modeling uses both tilt and azimuth, the compass direction the array faces. The System Advisor Model (SAM), developed by the National Laboratory of the Rockies (formerly NREL), takes both as inputs and calculates solar incidence from the array's orientation. Its documentation describes setting tilt equal to latitude as a rule of thumb and notes that the actual angle depends on project requirements.

Your energy objective also shapes the answer. A project focused on annual yield may settle on a different angle from one that puts more weight on winter or seasonal production. To compare candidates, you can run a parametric analysis on tilt in SAM and see how annual output changes across the bracket's adjustment range. The results show whether the energy difference between two settings is large enough to affect the bracket choice.

How Row Spacing Limits the Practical Tilt

As tilt increases, the upper edge of each row rises and casts a longer shadow, so rows need wider spacing and fewer of them fit in the same area.

For example, the height of the raised edge above the lower edge equals the module length in the tilt direction multiplied by sin(tilt). For a module with 2.0 m in that direction, the raised edge sits about 0.35 m higher at 10° and about 1.0 m higher at 30°, before any roof or ground clearance is added. At 30°, the edge that casts the shadow stands nearly three times higher.

Wind and Snow Codes for Tilted Arrays

The angle from the energy model is then checked against the site's wind and snow loads.

Key Specifications for Adjustable Tilt Brackets

Beyond the adjustment range, five groups of specifications determine whether a bracket fits your project: module dimensions and mounting zones, the roof or structure interface, the structural design basis, material and corrosion protection, and fasteners.

Common material choices include aluminum extrusions, hot-dip galvanized or zinc-aluminum-magnesium coated steel, and stainless-steel fasteners. The site's atmospheric corrosivity category under ISO 9223 (C1 to CX) provides an environmental input for material and coating selection. If it is known, the category is useful to include with the project data.

Module Dimensions and Mounting Zones

PV module wattage is not a mechanical fit dimension. Two modules with similar rated power can differ in length, frame profile, mounting holes, and permitted clamp locations.

Module installation manuals define the mounting zones, meaning the clamp zones and bolt holes the manufacturer approves. The manufacturer also states which mounting methods its IEC 61215 qualification covers and the design loads that apply to them. A clamp placed outside its zone takes the installation out of the approved mounting method, and the module's published design load no longer applies.

Clamp length affects how much the frame and glass bend under load. In one finite-element study by Fraunhofer ISE, a 1.8 m x 1.1 m glass-backsheet module was modeled under a simulated 5,400 Pa load on the front glass with two clamp lengths.

The values apply to that modeled module and load case, but they show why installation manuals specify clamp dimensions as well as clamp positions.

What a Bracket Load Rating Covers

Each bracket load rating applies to one configuration. A different tilt, support spacing, or attachment arrangement changes the member forces and connection loads. The module's design load is a separate figure that applies only to the module.

A published bracket load rating should state the tilt positions, support spacing, attachment arrangement, and design code or test basis it covers. For an adjustable bracket, that includes the positions the structural analysis found to govern.

Adjustable Tilt Brackets vs. Fixed-Tilt Mounting

Adjustable brackets make sense when you expect to change the angle after installation, or when one bracket family has to cover several roof pitches and module layouts. If the project has settled on one target tilt and does not plan to change it, fixed-tilt mounting is built around that angle.

Seasonal adjustment pays off only when the operating plan supports it. Each change typically means releasing the locking bolts or pins, moving the leg to a position the design already covers, re-securing it as the manufacturer specifies, and checking the joint. On a rooftop, all of that happens at height.

Adjustable joints also add connection points to the project's inspection plan. Because the structural check covers each planned position, the governing settings determine member and connection sizes, even if the array spends most of the year at a lower angle.

Pre-Installation Checks for Adjustable Tilt Brackets

Before work starts on site, confirm that the delivered parts still match the design and that cable slack and fasteners suit every planned position.

1. Delivered modules. Make sure the modules on site match the model the brackets were configured for, and that they will be installed in the planned orientation. A substitute module with a different length or clamp zones changes both the support spacing and the module design load that applies, so check it against its own installation manual before mounting.
2. Cables and bonding. Leave enough cable slack for every planned setting. A cable dressed tight at the lowest setting is pulled taut when the leg is raised, and the resulting tension is transferred to the connector and the cable entry at the junction box. Give bonding conductors across adjustable joints the same allowance.
3. Final tightening. Set each bracket to its specified position and tighten the fasteners to the torque values in the bracket and module documentation, in the specified sequence. Where the installation or QA procedure calls for it, finish each joint with a torque mark, a paint line across the nut and the adjacent surface, so any later rotation shows up at inspection.
