Floating Solar Mounting System G5A

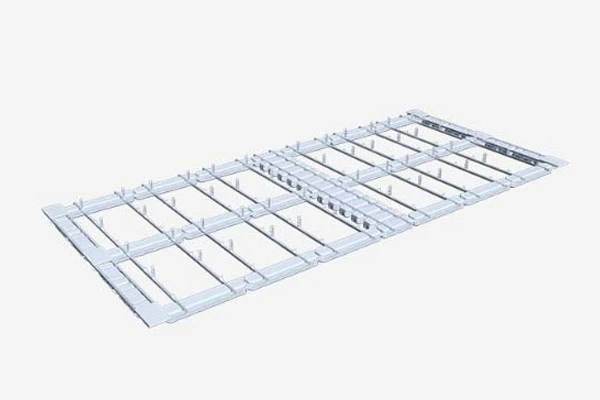

The floating PV mounting solutions from the G5 series can be used in a variety of aquatic environments, including lakes, reservoirs, and coal mine subsidence sites. Brackets and floaters make up the system. High-density polyethylene (HDPE) is the material used to create floaters, and it has benefits including high strength, corrosion resistance, fatigue resistance, a low water absorption rate, and good chemical stability. The materials for the guide rail and bracket can be chosen from among aluminum alloy and aluminized magnesium zinc, which have good anti-corrosion characteristics, are lightweight, and have a beautiful appearance.

Our floaters undergo industry-standard tests for tensile pulling force, aging resistance, UV resistance, air tightness, high and low-temperature cycling, and impact resistance. They exhibit strong weather resistance and have a service life of up to 25 years. The embedded structure is used for fixing between the floaters, ensuring a more stable overall connection. The modular design allows for horizontal and symmetrical arrangement, which can improve water coverage, increase installation capacity, and enhance power generation efficiency.

Product Application Examples

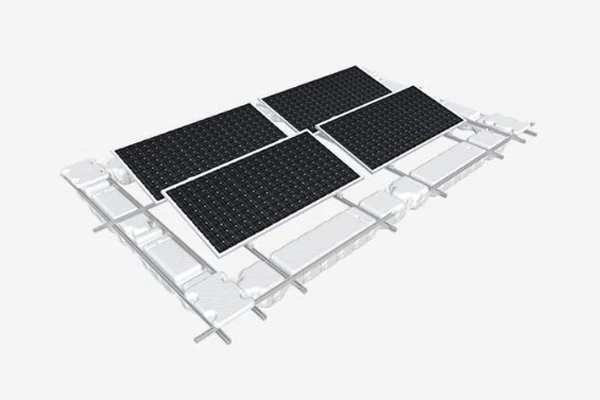

Mibet Solar Floating System G5A


1. High-Quality Materials: High-density polyethylene, an environmentally acceptable, non-polluting material with a lengthy useful life, is used to make floaters. The mountings made of aluminum alloy are lightweight, aesthetically beautiful, corrosion- and rust-resistant.

2. Innovative Structure: Modular design with embedded fixing between the floaters; the groove-type structure ensures the maximum fixation of support legs to the components. By increasing the size of individual floaters, the buoyancy of each floater is raised to over 150kg.

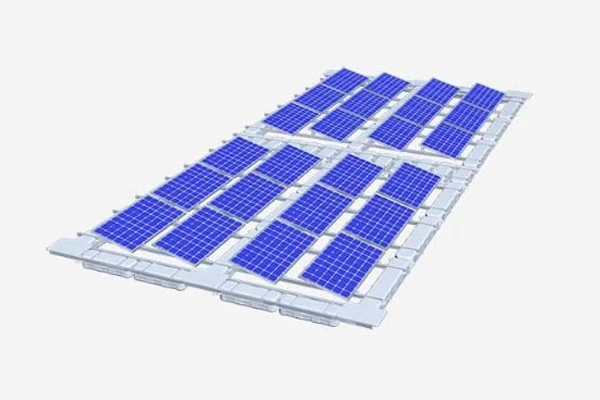

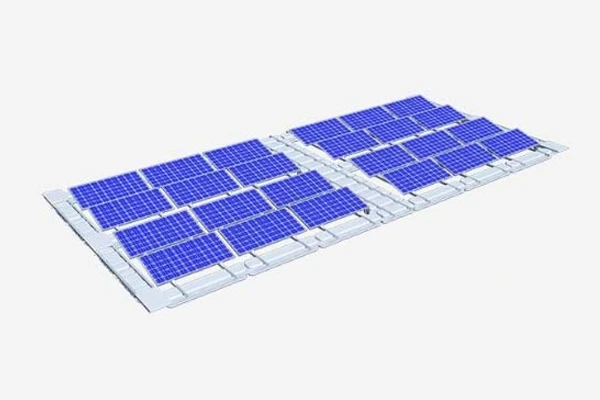

3. Various Arrangements: The modular structure supports various array combinations, allowing customized layout schemes according to actual needs, maximizing installation capacity, and power generation.

4. High Safety: The floaters have widened walkways with anti-slip design, ensuring safer installation and maintenance.

5. Adjustable Angles: Installation options of PV mounting with various angles such as 5°, 10°, 12°, and 15° are available to adapt to local sunlight conditions. The mounting system is compatible with solar panels of all specifications.

6. High Weather Resistance: The floaters undergo multiple industry-standard tests and can efficiently and stably operate in various natural environments, including high temperatures, high humidity, high altitudes, sand, dust, and salt spray.

Anchoring System

G5A , the MRac Floating Mounting System will be fixed using an anchoring system. Usually, underwater anchor points were chosen, but to select above-water anchor points is also feasible. The anchoring system will be designed based on the customer's water area conditions.

Above-water anchor point
Above-water anchor point
Underwater anchor point
Underwater anchor point
Mibet Solar Floating System G5A

Bracket details

Mibet Solar Floating System G5A Bracket Structure
Mibet Solar Floating System G5A Bracket Structure

Technical Parameter

    Installation Location    Lakes,reservoirs, and other water surfaces
    Installation Foundation    Floaters,  aluminum alloy bracket,
    aluminized magnesium zinc brackets
    Installation Angle    5°、10°、15°
    Wind Load    60m/s
    Snow Load    0.5KN/㎡
    Applicable Module Type    Framed & Double-glass PV modules
    Module Layout    Horizontal, same direction,
    symmetrical half-coverage
    Adaptable Maximum    2420mm x 1300mm
    Solar Panel Size
    Design Standards    AS/NZS 1170,DIN 1055,JIS C8955:2017,
     International Building Code:IBC 2009,
     California Building Code:CBC 2010;
    Main Body Materials    HDPE、aluminum alloy
    Fasteners    Stainless steel SUS304
    Accessories    AL6005-T5 (anodized surface)
    Mounting Color    Light gray or custom
    Floater Buoyancy    >150KG/个
    System Warranty    10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
