Fishery-solar Hybrid Power Station System

MRac fishery-solar hybrid power station system is a highly pre-assembled fishery-photovoltaic complementary power plant system for fish ponds and lake aquaculture areas. The system adopts the integrated design of piles and columns, which can meet the requirements of horizontal bearing capacity and vertical pressure bearing capacity. As a result, the construction speed is fast, no need to excavate the earth, little environmental impact, and good for soil and water conservation. A good pile foundation is more advantageous than traditional braced foundations in fish ponds, soft soil and other high groundwater areas.

Product Application Examples

Application example of fishery-solar hybrid power station system


Pre-assembled Components Save Onsite Installation Time

Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.

Dual-Use of Land or Utilize Waste Land Improve the Economic Benefit

Install solar projects above the fishpond, achieving the dual-use of land to improve the economic benefit. This system can utilize waste land like flood area or sandy area to save land resources.

Quick Modular Kit Fixation

Most of the components are designed as modular kit with anodized aluminum to further ensure easy and fast construction on site.

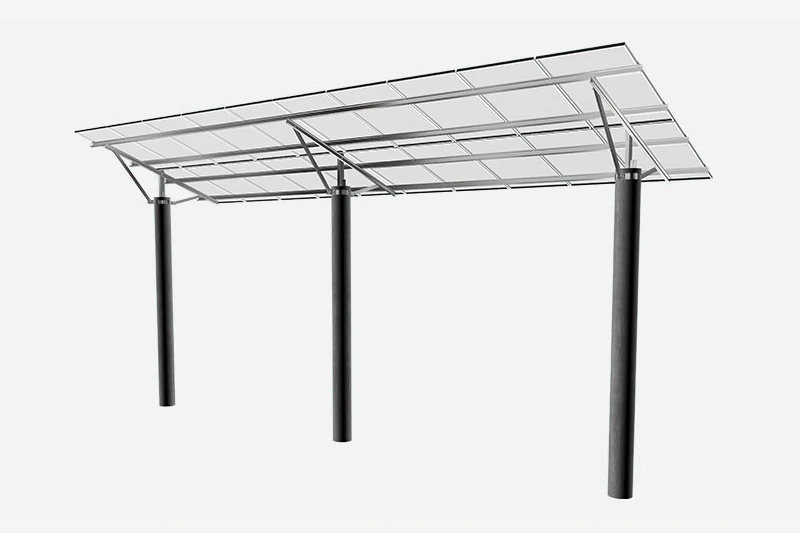

Fishery-solar Hybrid Power Station System Details

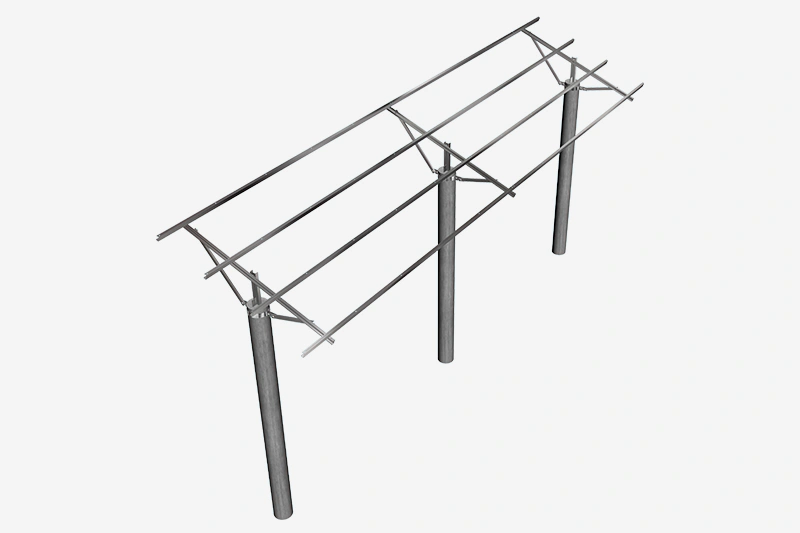

Bracket details

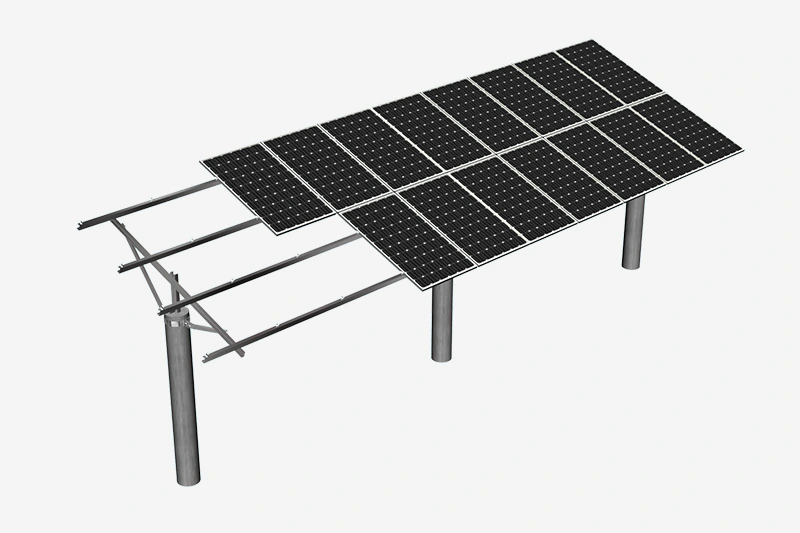

Fishery-solar Hybrid Power Station System Details

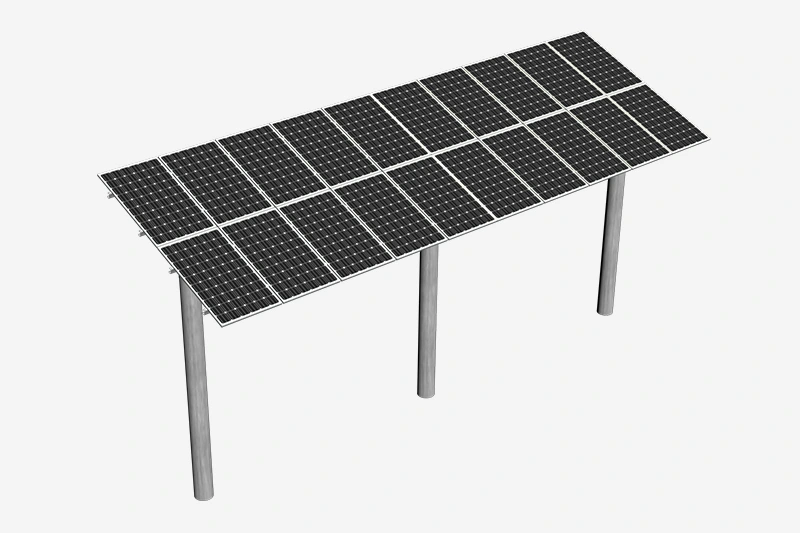

Fishery-solar Hybrid Power Station System Details

Technical Parameter

TypePonds, Reservoirs
Bottom SupportConcrete pile foundation
Installation Angle0-45°
Wind Load60m/s
Snow Load1.4KN/㎡
Height From the Ground400-1200mm+
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialHot-dip galvanized & AL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & Q235B (hot-dip galvanized)
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural silver or colored according to customer requirements
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
