Agricultural Farmland Solar Mounting System

MRac agricultural farmland solar mounting system is suitable for farm PV power generation projects, which can save land resources and maximize the benefits of agricultural cultivation and PV. The system structure is designed according to the panel arrangement, the amount of sunlight required by crops and the entrance size of farming machines, etc., providing a racking structure design that meets the needs with a high degree of pre-assembly and easy construction.

Product Application Examples

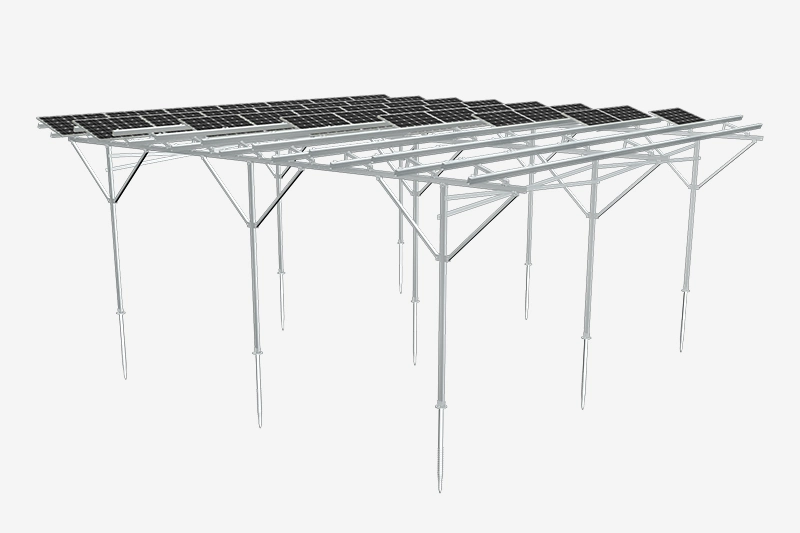

Application example of agricultural farmland solar mounting system


Reasonable use of land resources and improved economic benefits

Solar farming power generation does not occupy land and does not change the nature of land use, making reasonable use of land resources while photovoltaic power generation.

It can be suitable for different crop growing environment

The solar panels with different light transmission rates or different panel layout designs can meet the lighting needs of different crops.

Stand height pre-assembly, saving installation time

Few installation parts, highly pre-assembled in the factory, without any on-site cutting or drilling, reducing on-site construction difficulty and construction time, and reducing project costs.

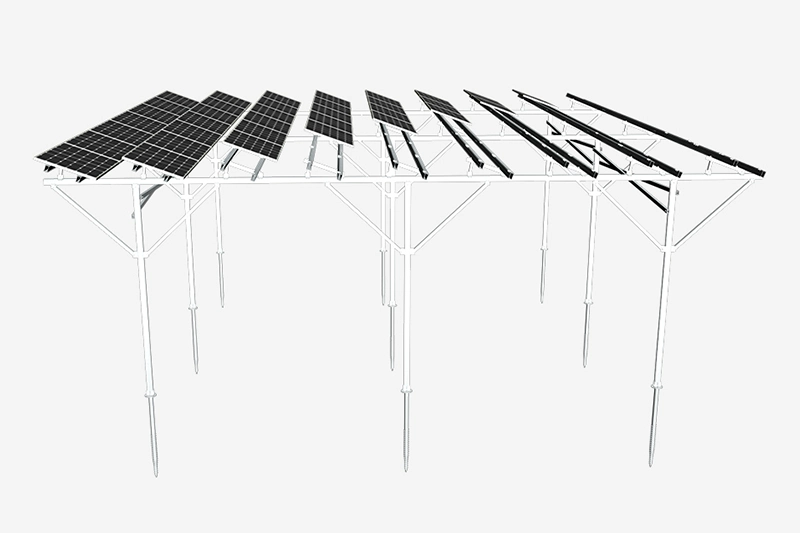

Spaced design improves shading rate

The shading rate can be 30-70% with spaced panel arrangement to meet the different lighting requirements of crops.

Agricultural Farmland Solar Mounting System Details

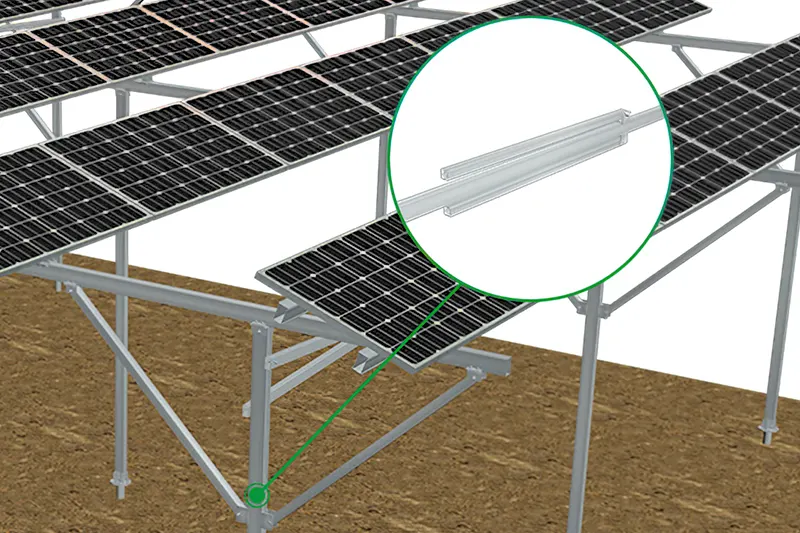

Bracket details

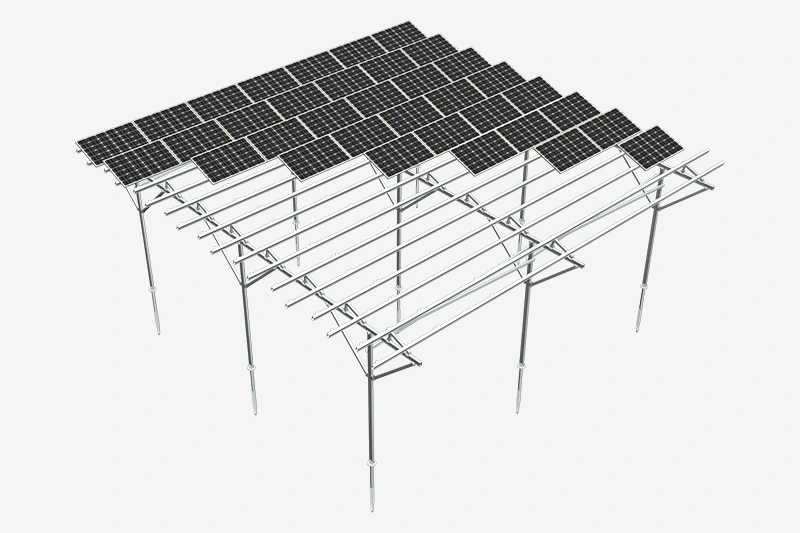

Agricultural Farmland Solar Mounting System Details
Agricultural Farmland Solar Mounting System Details

Technical Parameter

Bottom SupportCement foundation, Helical piles
Installation Angle0-30°
Wind Load80m/s
Snow Load1.6KN/㎡
Height From the Ground1800mm+
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialAL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & Stainless steel SUS304
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural silver or colored according to customer requirements
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
