When to Choose an Aluminum Solar Carport System

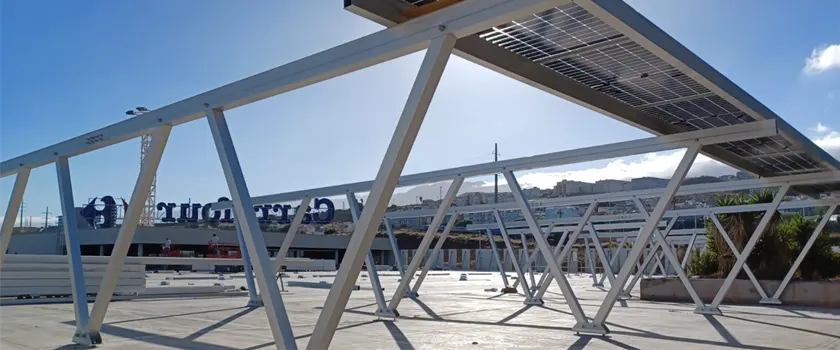

What Makes Aluminum Different in a Solar Carport Structure?

Aluminum has roughly one-third the density of structural steel, and roughly one-third the elastic modulus. The Aluminum Design Manual assigns a single modulus of 70 GPa (10,100 ksi) to structural aluminum across all alloy and temper combinations.

Lower density reduces the mass of columns, beams, rails, and brackets. The lower modulus works against that saving, because a member governed by deflection or buckling needs a deeper or thicker section to reach the same stiffness. The finished frame still comes out lighter, by less than the density ratio suggests.

An aluminum billet passes through a shaped die and emerges as a continuous profile, so one extruded section can place material where bending demands it, carry a flat bearing face for bolted connections, hold the module clamps, and in some products form a drainage channel. The 6xxx-series alloys are the usual extrusion materials for structural and building work, with 6061-T6 typical for structural members and 6063 alloys common where the exposed finish matters.

None of these properties settles the material choice by itself. Parking geometry, required clear height, and exposure conditions determine whether they are useful on a given site.

Which Project Conditions Favor an Aluminum Solar Carport?

Aluminum is more likely to suit a project when several of the following conditions apply.

Exposure belongs early in material selection. Coastal air, road salt, industrial contaminants, and mixed-metal connections all change what the alloy, finish, and fastener specification has to cover.

Commercial parking areas with repetitive bays benefit from standard member lengths, repeatable connection details, and factory preassembly. One frame configuration then repeats across dozens of bays with the same bill of materials.

Field welding needs particular attention with heat-treated 6xxx-T6 members. Fusion welding reduces strength in the heat-affected zone, and field heat treatment does not restore it. Aluminum carports therefore tend to use factory-machined profiles and bolted field connections.

Carport framing stays visible at vehicle and pedestrian level, unlike rooftop racking, so profile shape, surface finish, joint layout, and gutter components often form part of the visual specification for commercial properties, corporate campuses, and public parking areas.

Loads and Geometry Determine Whether an Aluminum Frame Works

An aluminum frame works where the required sections stay within practical profile depths once the site loads are applied. Two carports built from the same alloy behave very differently when one has short supported beams and the other cantilevers across a wide bay.

Loads from the canopy travel down a defined path, with a connection at every interface along it.

1. PV modules
2. Rails or purlins
3. Main beams
4. Columns and bases
5. Foundations

Under uplift, those interfaces carry load in the opposite direction, and uplift and overturning can govern anchor and foundation design on an open canopy.

Span and Cantilever Length Affect Member Size

Moving a column away from vehicle doors improves parking access and lengthens the cantilever. A wider double-row canopy increases the unsupported beam span. Greater clear height raises column moments and exposes more of the structure to wind.

Each of those changes raises bending moments and deflections in the main members. Cantilever deflection is especially sensitive to length, since tip deflection scales with the fourth power of the overhang. For the same section and the same uniformly distributed load, a 20 percent longer cantilever roughly doubles the deflection at the tip. The options at that point are a deeper profile, a different section shape, added supports, a revised connection arrangement, or a change of material at selected members.

Alloy strength alone is not enough to compare frame options. Complete frame configurations need to be checked under the same geometry and design loads.

Wind and Snow Have to Be Checked for the Actual Site

Wind and snow loads come from the project location and the governing design basis. Load standards define the actions on the structure, while member and connection resistance comes from a separate aluminum design standard.

Catalog wind and snow values are useful for early product screening. Project verification needs your canopy dimensions, tilt, clear height, support arrangement, exposure conditions, applicable load combinations, and governing code.

Strength and Serviceability Are Separate Checks

A beam can pass its strength check and still deflect too far for the intended use. Serviceability checks deformation under normal operating conditions, and for comparable section geometry an aluminum member deflects more than a steel one under the same load, because of the lower elastic modulus.

Excessive deflection can pull module alignment out of line across the array, increase movement at the sealed joints, and flatten the drainage fall the layout assumed.

Eurocode 9 includes serviceability requirements alongside resistance, durability, and fire resistance. A sealed canopy may also need project-specific deflection limits, since a value that satisfies the code can still be too generous for the joints and the drainage path.

Exposure and Interfaces Control Long-Term Durability

Aluminum resists atmospheric corrosion because a thin oxide layer forms on the surface and reforms when it is damaged. That protection holds in near-neutral conditions and weakens in strongly alkaline ones, and a column base sitting in wet grout is the second case. Durability on a solar carport mounting system is therefore an interface question as much as a material question.

Alloy and Finish Need to Match the Exposure

An inland commercial parking lot and a coastal site do not present the same material conditions. ISO 9223 classifies atmospheric corrosivity from C1 through CX using first-year corrosion rates of standard metals, aluminum among them. Naming the category in your specification gives the alloy, finish, fastener, and interface decisions a common exposure reference.

For aluminum, a uniform corrosion rate describes localized attack poorly. The standard notes that maximum pit depth is the better indicator, and on a coastal site the damage starts at fastener holes, contact surfaces, and enclosed joints.

Anodizing thickens the oxide layer under controlled conditions and gives the exposed frame a consistent finish. AAMA 611 separates two finish classes, Class I at 18 microns (0.7 mil) or more with 3,000 hours of accelerated salt spray testing, and Class II at 10 to 18 microns (0.4 to 0.7 mil) with 1,000 hours. The document covers building envelopes, so a carport specification cites it as a finish benchmark rather than a governing requirement, and the class suited to your site follows from the exposure severity, the expected maintenance interval, and the appearance requirement.

Connections Bring Different Metals Together

Aluminum framing commonly meets stainless fasteners, coated steel base plates, steel brackets, and anchor bolts.

Galvanic corrosion needs three things present together.

• Two dissimilar metals in contact
• An electrical connection between them, which a bolted structural joint provides by design
• An electrolyte, usually moisture carrying dissolved salts, reaching the contact surfaces

The Specification for Aluminum Structures sets a requirement for those contacts. Where aluminum meets another metal and the faying surfaces are exposed to moisture, the other metal is painted or coated with zinc, cadmium, or aluminum, and contact with 300-series stainless steel, zinc, and cadmium is exempt. In high-chloride exposure, an isolator at those exempt interfaces may still be appropriate.

The same document rules out steel fasteners with a specified minimum tensile strength above 830 MPa (120 ksi) in contact with aluminum, including A490 bolts and SAE J429 Grade 8 bolts, because they can suffer hydrogen-assisted stress corrosion cracking under moisture and tensile stress. Include the same limit in the procurement specification.

Where an aluminum base plate bears on concrete or masonry, the same document applies again. Those aluminum surfaces are painted unless the concrete stays dry after curing and carries no corrosive additives such as chlorides, and aluminum is not embedded in chloride-bearing concrete where it is electrically connected to steel.

A grout bed holds moisture against the contact face, the alkaline condition breaks down the oxide film that protects the aluminum, and pitting spreads across the bearing area. Coating or isolation, together with a drainage path under the plate, addresses that exposure at the detailing stage.

Water Traps and Drainage Details Matter

Regional climate sets the general exposure, and joint geometry sets what a given connection actually experiences. A bolted connection that drains and dries readily sees a different environment from a recess that holds rainwater, dust, and chloride deposits between storms. Horizontal ledges, enclosed box sections, gutter interfaces, and column bases are where those recesses form.

Three questions are worth raising during detailing review:

• Whether the extruded profiles carry drain holes at the low points
• Whether the column base detail lets water leave the bearing surface
• Which connections stay accessible for inspection once the canopy is closed in

All three are easier to resolve during detailing than after the modules are installed and the array is energized.

Rain Protection Adds Components, Interfaces, and Structural Load

Some carports support modules and provide shade. Keeping the parking bays dry adds sealed module joints, gasket profiles, drainage channels, canopy slope, gutters, downspouts, and a discharge route that matches the site stormwater plan. The frame material alone does not make the canopy watertight.

Watertight carports typically use EPDM gaskets or extruded sealing profiles at selected module interfaces, with rails or separate channels collecting the runoff and carrying it to the gutters. Seals are replaceable components, and their service life depends on the compound, the UV exposure, and how much movement the joint sees, so inspection access and the replacement method belong in the layout stage.

These joints also need to accommodate thermal movement. Aluminum expands about 23 microns per meter per degree C, roughly twice the 12 microns per meter per degree C used for structural steel.

Illustrative example, not a project figure. The actual movement depends on the local climate, the run length between fixed points, and the color and shading of the profile.

Fixing a run of that length rigidly turns the movement into load on the joints and the fasteners. The joint detail has to accommodate it through expansion gaps, sliding interfaces, or slotted holes where the connection design permits them.

Rain-protection requirements should be confirmed before the structural and fabrication drawings are finalized. Gutters, seals, drainage profiles, and discharge points change canopy slope, support interfaces, member geometry, and the loads those members carry. A late change sends both the calculations and the drawings back for revision.

When Steel or Hybrid Framing Fits the Project Better

Long spans, large cantilevers, high member forces, tight section-depth limits, local fabrication capability, and foundation interface requirements all point toward steel primary members. Hybrid frames cover the projects that fall between those two cases.

In a hybrid frame, aluminum handles the upper framing, rails, and other extruded components, while steel takes selected primary members, brackets, and foundation interfaces.

Every aluminum-steel interface then needs two checks: corrosion protection at the contact, and differential thermal movement, since the aluminum side expands about twice as far as the steel side over the same temperature change.

The term aluminum solar carport system describes the framing approach. Your bill of materials and structural drawings identify the material specified for each component.
