How to Select the Right Pole Mounted Solar Structure for Your Project
A single pole mount skips civil grading, but it forces one vertical axis to carry every aerodynamic and dead load. Holding the base against torsion and keeping the glass from micro-cracking takes high-yield steel, a strict L/240 deflection limit, and a ground-line coating barrier.
- Clearance Multiplies the Bending Moment: High agrivoltaic clearance lengthens the lever arm, multiplying the overturning moment at the base. High-yield structural steel carries that load.
- Deflection Limits Protect the Glass: An L/120 building limit lets the rails sag until the clamped modules crack. The cantilevered purlins have to hold the tighter IEC L/240 limit instead.
- Soil Data Dictates the Foundation: A single pole drives all load into one small footprint. The soil's SPT N-values set the foundation: drilled shaft, helical pile, or ground screw.
- Corrosion Targets the Ground Line: Standard hot-dip galvanizing degrades at the soil-to-air transition. A coal-tar epoxy layer over the galvanizing seals the steel through the wet-dry zone.
Earthwork drains a project budget fast. On severely undulating terrain, or under the high clearances an agrivoltaic site demands, leveling the ground for standard fixed-tilt rows means heavy cut-and-fill and a dense pile field. Where the slope refuses a driven pile, you fall back to excavated concrete piers. Each one stacks civil cost, permitting delay, and row-spacing conflicts.
A single-pole mount skips most of that civil work. It carries the full dead load and wind stress down one anchor point. You drop the site grading, but now one vertical axis takes the entire mechanical load. On a five-meter cantilever, a single millimeter of differential settlement at the base swings into a much larger offset at the tips. The aluminum frames twist, and the silicon cells inside crack. Specifying this column comes down to the static and wind-load math.
Table of Contents
- 1. When Site Conditions Mandate a Single-Pole Solar Structure
- 2. Evaluating Aerodynamic Loads and Torsional Stress
- 3. Selecting the Proper Geotechnical Foundation Strategy
- 4. How to Specify Steel Grades and Anti-Corrosion Standards for Pole Mounts
- 5. Does an Adjustable Tilt Mount Actually Increase Energy Yield?
- 6. Matching the Structure to the Site
- 7. Frequently Asked Questions

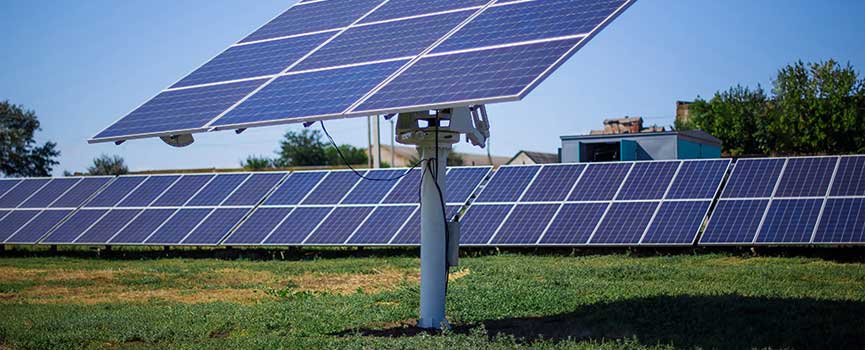

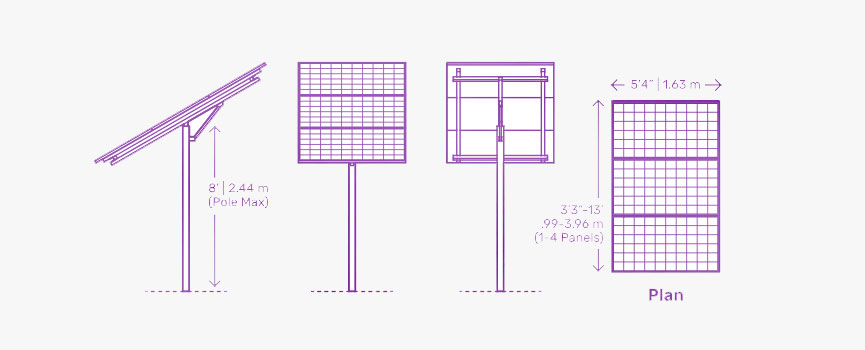

When Site Conditions Mandate a Single-Pole Solar Structure
A single-pole mount is a special-case structure. It earns its place in two situations: steep ground that restricts the site, or a working farm that demands high clearance. In either case, standard fixed-tilt racking turns structurally impractical or too expensive.

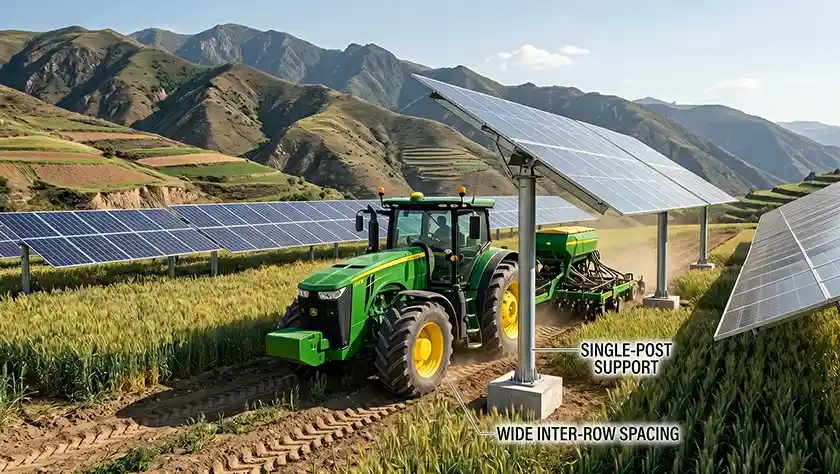

- High-Clearance Agrivoltaics: Farm machinery needs a clear path underneath. A tractor cab clears at roughly 3 meters, a combine harvester at 4 or more. After that the crop sets the height, since the canopy under the purlins still has to catch enough light to grow.
- Complex Terrain Slopes: On steep, multi-directional ground, often past 15% grade, cut-and-fill earthwork turns environmentally prohibitive and slow to permit.
- Space-Restricted Parcels: Odd-shaped parcels and edge-of-field strips push planners to wring the most ground coverage ratio (GCR) out of a tight footprint.
Raise the clearance for a tractor cab or a mature canopy, and the overturning moment at the base climbs in step with it (M = F × d). Sway adds P-Delta second-order moments on top, more load for the column to carry. Snow load still counts, but it's the crop height at maturity that sets the first number a structural engineer reaches for.
To stand up to that lever arm, the column needs section modulus from the profile geometry, backed by a high-yield steel grade like ASTM A572 Grade 50. Hold an open golf umbrella by the very tip in a storm: every gust lands on your wrist as a bending load.
Evaluating Aerodynamic Loads and Torsional Stress
A dual-leg frame splits base shear between two footings. A single pole doesn't. The whole wind and dead load rides down one column. Mount sixteen large-format modules on top, and you present one continuous sail area around 31 square meters.
Quartering Winds and the Eccentric Snow Load
A quartering wind loads the panel face unevenly, piling pressure on one corner. Snow slides and stacks along the lower edge, adding an off-center dead load. The column fights two loads at once: the straight lateral push, and the torsion trying to twist the whole array around the pole's vertical axis.
ASCE 7-22, Chapter 29 borrows its math from freestanding solid signs, and those provisions set how you detail the connections for these unbalanced cases. Let a pivot joint or saddle bracket ride on friction alone, rather than a positive lock or slip-critical ASTM F3125 Grade A325 bolts, and a 45-degree gust walks the connection loose. The array creeps off its design azimuth and stays there. It doesn't trip an alarm or stop the inverter. It just bleeds yield quietly, hour after hour, as the modules point off-sun. Production stays down until an O&M crew climbs out and re-aims the whole array by hand.
Managing Deflection Limits of the Purlins and Mounting Rails
Under wind uplift, the rails bow out of plane. Procurement teams working from standard building codes often wave through an L/120 deflection ratio. L/120 keeps a steel barn standing. On a rigid solar array, it cracks glass.
Max Allowable Sag: 41.6 mm (5 m span)
When the C-channel purlins warp, the clamped 2.0 mm dual-glass modules bend with them. That bend pushes the module past its IEC 61215 mechanical-load limit. Micro-cracks open in the cells, invisible on day one, and surface later as lost yield.
Max Allowable Sag: 20.8 mm (5 m span)
Tier 1 module makers set this as the floor. A thicker C-channel and more section modulus hold the stress inside what the glass-glass laminate can take.
Selecting the Proper Geotechnical Foundation Strategy

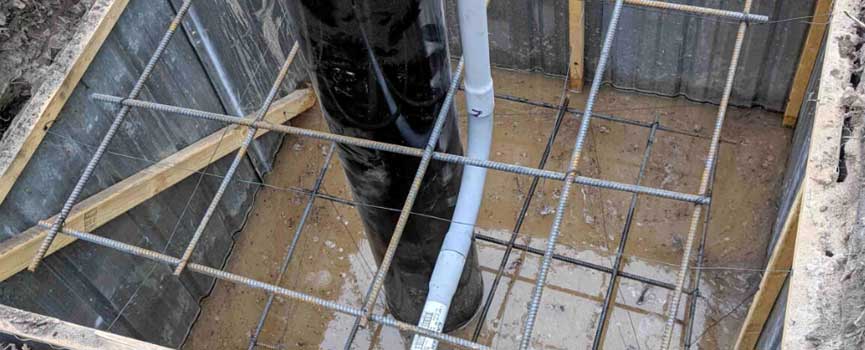

The steel above ground leans on the soil below to carry the overturning moment. A single pole concentrates that moment into a minimal footprint. The site's SPT N-values decide which foundation fits: drilled shaft, large-diameter helical pile, or ground screw. Installation crews often confuse large-diameter helical piles with standard ground screws, but the two engage the soil in different ways.
| Foundation Strategy | Geotechnical Profile (SPT N-Value) | Operational Caveats |
|---|---|---|
| Concrete Drilled Shaft (Pier) | Loose sands (N < 10), low-bearing clays, or variable strata. | Takes a lot of concrete. Dewatering or temporary steel casing is mandatory below the active water table. |

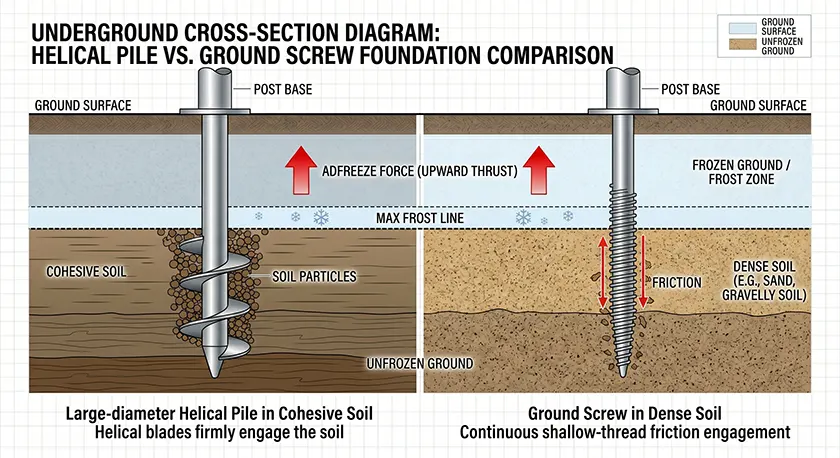

| Large-Diameter Helical Pile | Cohesive soils (N 15-40) to engage the helical bearing plates. | Loads immediately after installation, no concrete cure. Installation torque needs close monitoring. |
| Ground Screw | Dense, compacted soils. Relies on continuous shallow-thread friction. | Hits refusal in bedrock. Strips the thread if over-torqued. |
In freezing climates, sizing embedment depth on soil bearing capacity alone leads straight to failure. The foundation has to reach well below the site's maximum historical frost line. Water in the active frost zone expands about 9% as it freezes, gripping the pile with an adfreeze force that can lift more than the dead weight of the whole structure.
The soil-to-air transition zone needs its own material defense. Constant wet-dry cycling and oxygen exposure attack the ground line hardest. A pre-galvanized finish like G90 coil sees accelerated degradation right there. The spec has to call out hot-dip galvanizing to a minimum 85 microns per ASTM A123.
How to Specify Steel Grades and Anti-Corrosion Standards for Pole Mounts
The base connection decides whether the structure stands. Once the main column corrodes at the ground line, it doesn't matter how cleanly the upper canopy sheds wind. The Bill of Materials (BOM) has to match the macro-environment of the actual site.
Yield Strength Requirements for Main Beams and Columns
Mild steels like ASTM A36, EN S235, or Q235 work mechanically, but they force the fabricator to roll impractically thick profiles for a large cantilever. High-tensile structural steel handles the overturning moment at a sane wall thickness. ASTM A572 Grade 50 and EN S355 give a minimum yield of 345 to 355 MPa. Inside its elastic range, the steel deflects under a gust and springs back, no permanent set.
Galvanization and Fastener Specifications
Under ISO 12944, service environments run from C1 (indoors) to C5 (marine or heavy industrial). In C4 or C5, baseline hot-dip galvanizing protects the upper frame but stays exposed at the ground line.
| ISO 12944 Category | Macro-Environment Profile | Mandatory Ground-Line Coating Strategy |
|---|---|---|
| C2 / C3 (Low-Medium) | Rural agrivoltaics, low industrial pollution. | Standard Hot-Dip Galvanization (HDG) to min. 85 µm. |
| C4 (High) | Industrial zones, coastal areas with moderate salt. | 85 µm HDG + High-build coal-tar epoxy run continuously across the soil transition zone. |
| C5 (Very High) | Direct offshore marine, heavy chemical fallout. | Duplex System: HDG + Marine-grade polymer heat-shrink sleeves to block galvanic cells. |
Field audits turn up the same oversight: teams detail the main columns and forget the slip-critical bolts at the pivot nodes. Standard hot-dip galvanized bolts gall under high installation torque. The friction cold-welds the nut to the thread. Current specs call for ASTM F3125 Grade A325 bolts with chrome-free zinc-aluminum flake coatings, such as Geomet® 500. The flake layer skips the hydrogen embrittlement risk of electroplating and holds a predictable friction coefficient for slip-critical joints.
Does an Adjustable Tilt Mount Actually Increase Energy Yield?
Tilting the array by season lifts direct-irradiance yield 4% to 6%, but joint fatigue and manual-labor OPEX usually eat that gain back. Changing the tilt also changes the sail area the wind sees. A flat 15-degree setting lets snow pile unevenly across the panels. A steep 60-degree angle turns the array into a vertical sail against winter gales.
Crews making these adjustments follow a fixed sequence:
- Loosening and Temporary Bracing: Brace the array before releasing the slip-critical saddle clamps. Release it unbraced under dead load, and the array drops.
- Actuation and Alignment: Large frames need precise leveling to keep the horizontal purlins square to the column. Bound rails feed bending stress straight into the rigid glass.
- Torque Recalibration and Witness Marks: Re-tighten every pivot joint with a freshly calibrated torque wrench. Too little clamping force and the joint micro-slips. Crews paint a stripe across the bolt head and bracket. Any back-off breaks the line.
Matching the Structure to the Site
Selection comes down to six site inputs. Read them in order; each one narrows the spec before the next.
| Site Input | What It Decides | The Call |
|---|---|---|
| Slope and Clearance | Whether a pole mount earns its place | Past ~15% grade, or clearance above 3 meters for machinery, a single pole beats cut-and-fill fixed-tilt. Below that, standard racking costs less. |
| Array Size | Modules per pole | 30 to 40 m² (8 to 12 large-format modules) in standard ASCE wind zones. Past that, the steel gets impractical. |
| Wind Exposure | Connection class and column section | Quartering-wind sites need slip-critical A325 joints and a section sized for torsion, not bending alone. |
| Soil (SPT N-Value) | Foundation type | N < 10 loose sand: drilled shaft. N 15–40 cohesive: helical pile. Dense, compacted: ground screw. |
| Frost Line | Embedment depth | Set the pile below the maximum historical frost line, not on bearing capacity alone. |
| Corrosion (ISO 12944) | Ground-line coating | C2/C3: HDG 85 µm. C4: HDG + coal-tar epoxy. C5: duplex + heat-shrink sleeves. |
Fixed tilt holds for most sites. Go adjustable only where the 4 to 6% seasonal yield clears the added joint fatigue and field labor.
Frequently Asked Questions
1.What is the maximum number of solar panels a single pole mount can support?
Total aerodynamic surface area sets the limit, not raw panel count. Modern 600W+ modules on 182 mm or 210 mm wafers add up to one continuous sail area fast. In standard ASCE wind zones, foundation economics and base torsional limits cap a single pole structure around 30 to 40 square meters (8 to 12 large-format modules). Past that, the fabricator is back to rolling impractically thick steel.
2.How does the purlin span differ in a single pole mount compared to dual-post structures?
On a single pole, the outer ends of the transverse purlins run as free cantilevers; a dual-post table carries them as simply supported beams. Those ends take the bending load alone. To hold the tips inside the IEC L/240 limit, the fabricator rolls a thicker C-channel for more section modulus.
3.Can ground screw foundations be used for pole mounts in rocky soils?
Ground screws penetrate rocky terrain only if the installation crew uses pre-drilled pilot holes.
Not on their own. Driving a loaded ground screw into bedrock or dense cobble needs percussive equipment, so the contractor drills an oversized hole with a Down-the-Hole (DTH) pneumatic hammer, sets the screw, then fills the annular void with high-strength, non-shrink grout. The grout sets into a composite micro-pile and locks in the pull-out and torsional resistance.
