Balcony Railing Solar Panel Mounting System

The MRac balcony solar mounting system is a product that is installed on balcony railings and allows for the easy construction of small home PV plants on balconies. Installation and removal are very simple and quick; the installation can be completed by 1-2 people. The system is bolted and fixed, so there is no need for welding or drilling during installation.

With a maximum tilt angle of 30°, the panels’ tilt angle can be flexibly adjusted according to the installation site to achieve the best power generation efficiency. The panel’s angle can be adjusted at any time thanks to the unique telescopic tube support leg design. Optimized structural design and material selection ensure the system’s strength and stability in a variety of climatic environments.

The solar module converts daylight and sunlight into power. As light falls on the module, electricity is fed into the house network. The inverter feeds electricity into the household electricity network via the nearest power socket. Thus, the electrical base load’s electricity costs are reduced, and a portion of the household electricity demand is saved.

Product Application Examples

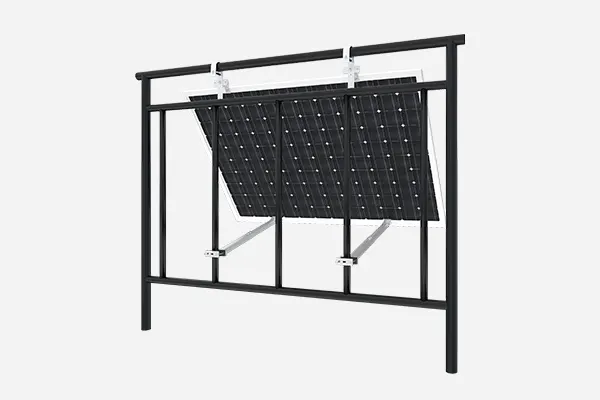

Application example of balcony railing solar mounting system


Lower electricity costs

With the MRac balcony solar system, you can reduce your electricity costs because you can produce some of your own electricity and use it immediately. Reduce your dependence on ever-rising electricity prices.

Easy Installation

Pre-assembled balcony bracket system that simply unfolds and secures to the balcony for installation. All of these features contribute to a quick, simple, and cost-effective installation, which is critical for residential projects.

Durable and Low Corrosion

The balcony solar mounting system is made entirely of 6005-T5 aluminum alloy and 304 stainless steel in various anodized thicknesses, making it suitable for even the harshest environments, such as corrosive sites near the coast.

Excellent Compatibility

Standardized components are appropriate for both 60 cell and 72 cell panels. The mounting frame can accommodate most commonly sized balconies due to its large adjustment range. It also works with metal railings.

Outstanding service

Mibet Energy is always available to answer all your questions about balcony solar systems.

Balcony Railing Solar Panel Mounting System Details

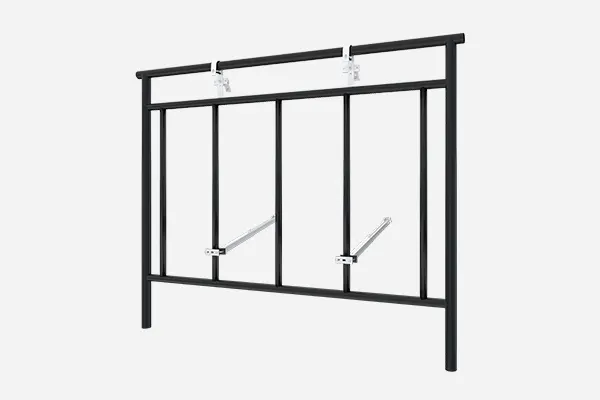

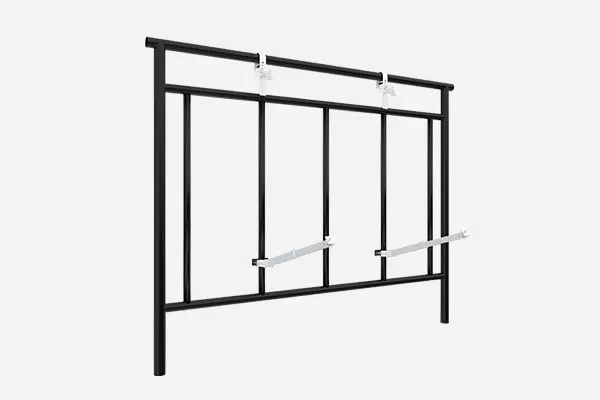

Bracket details

Balcony Railing Solar Panel Mounting System Details
Balcony Railing Solar Panel Mounting System Details

Technical Parameter

System NameMRac Balcony Solar Mounting System
Installation siteBalcony
Install the baseMetal railings
Mounting angle10°-30°
Wind loads30m/s
Snow loads1.0KN/m2
Applicable battery panel typeFramed
Arrangement of the panelsHorizontal
StandardAS/NZS 1170, DIN 1055, JIS C 8955: 2017,
 International Building Code: IBC 2009,
 California  Building Code: CBC 2010
Stand materialSteel & AL6005-T5
Fastener materialSUS304
Material of spare partsAL6005-T5
ColorNatural silver or colored according to customer requirements
System warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
