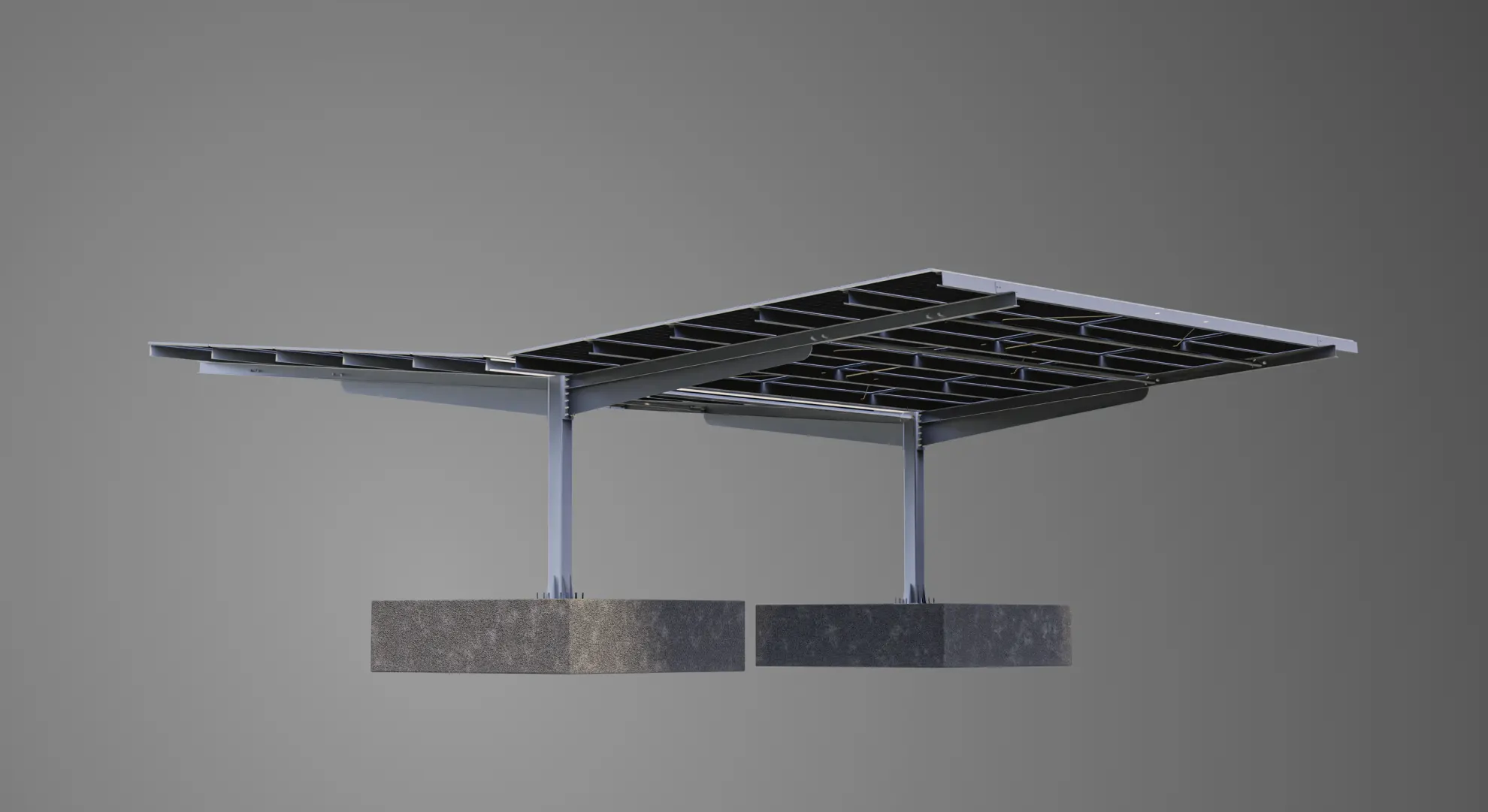

System Structure

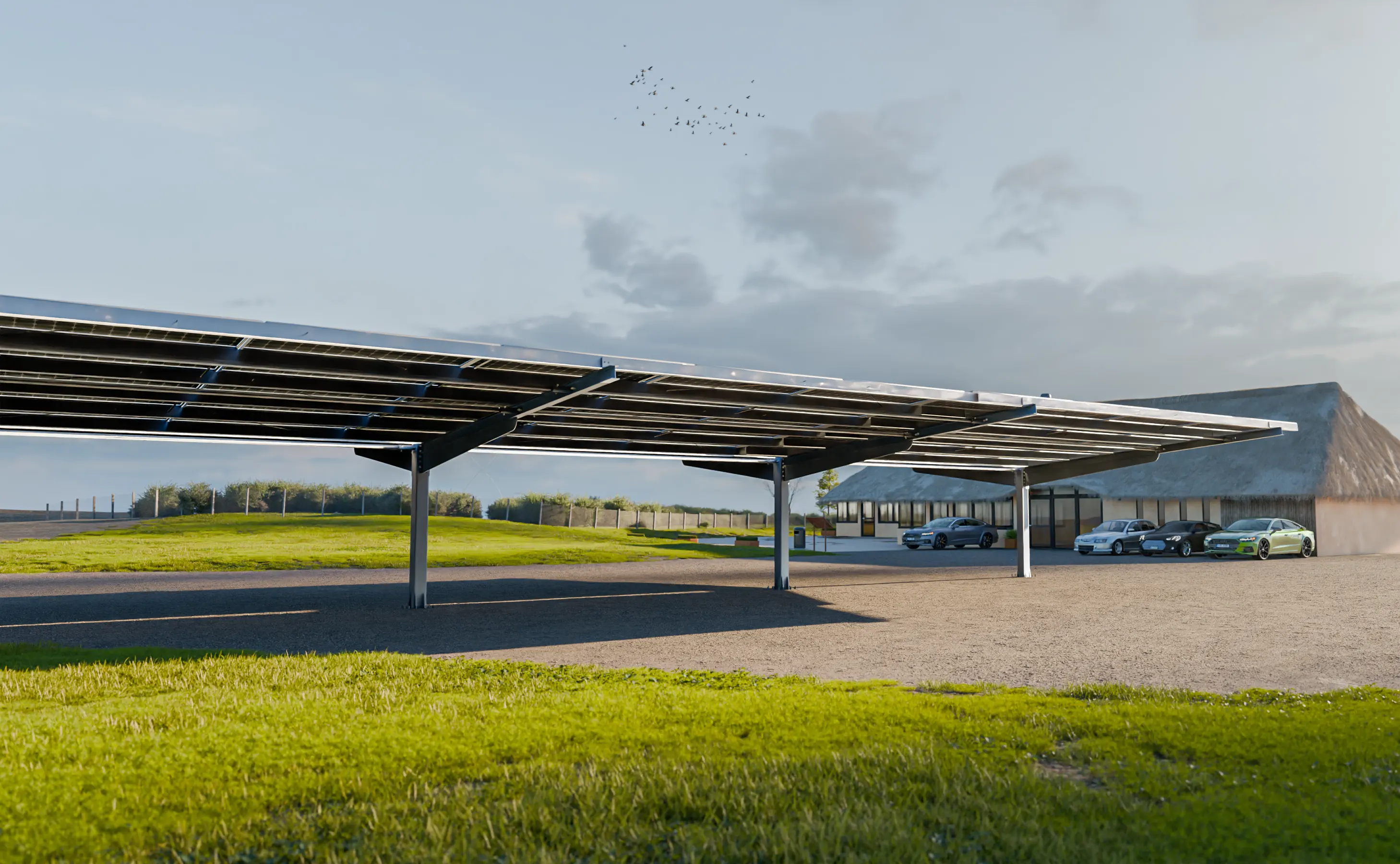

Single-Post Solar Carport System

System Advantages

expand

Clear Space for Cars

The column anchors to the parking stall boundary line. Zero front posts means drivers open doors and back out clear of steel.

Cantilever Strength

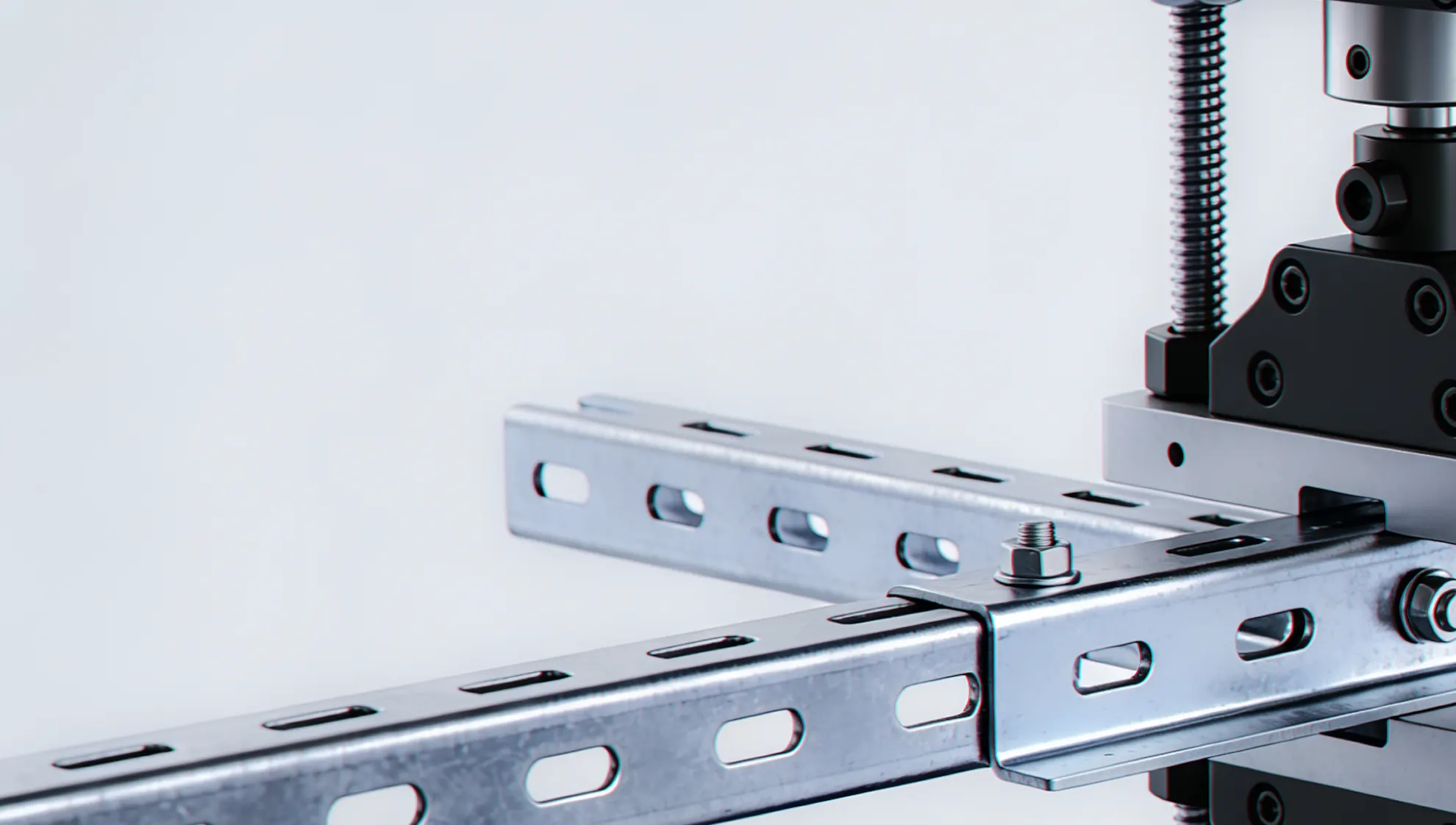

We rate the structure for asymmetrical wind uplift up to 50 m/s. Hot-dip galvanized H-shaped steel columns and beams carry the bending moment at the knee joint. The bolted connections stay tight through years of cyclic loading.

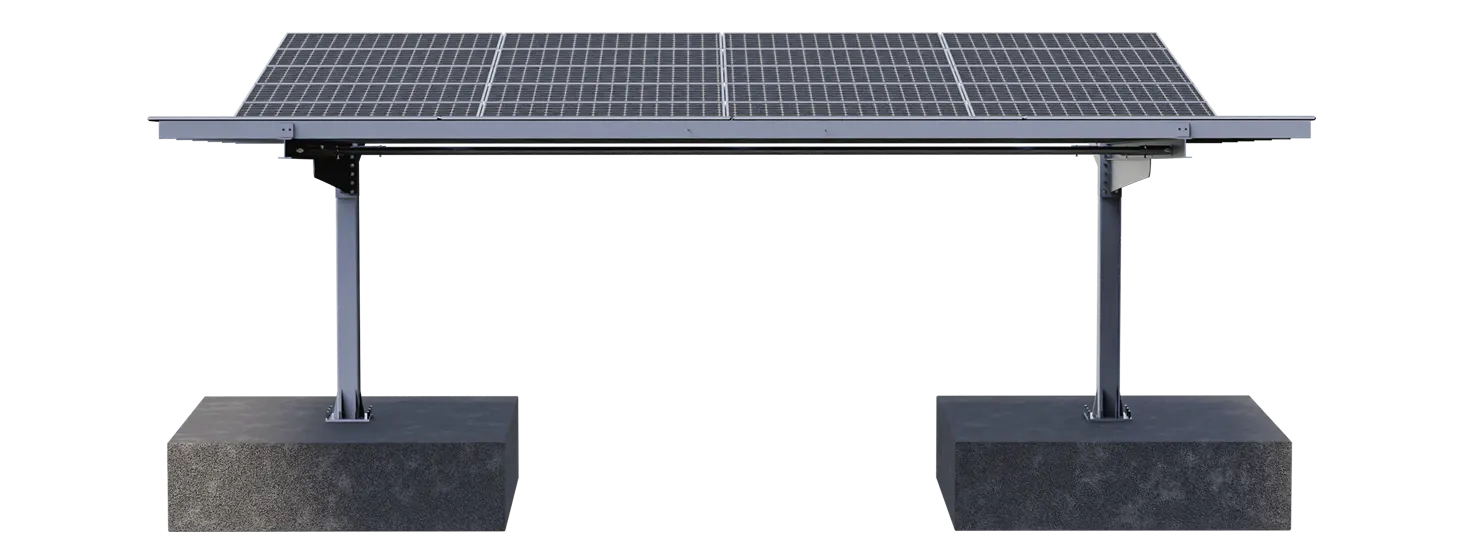

Fewer Footings

A single spine requires one foundation per bay. You pour fewer cast-in-place footings or drilled piles per megawatt. Less earthwork means the concrete finishes faster and the lot returns to service sooner.

Adjustable Geometry and Clearance

Array tilt adjusts from 5° to 15° to match site requirements. Standard clearance runs 2.2 m for passenger vehicles. We scale the main columns to 4.0 m and higher for commercial fleets. The cross beams and W-gutter rails secure both standard framed modules and glass-glass bifacial modules using pre-assembled end and inter clamp kits.
