Rows turn east to west through the day. Each is driven at several points along the torque tube. That shortens the free span, reduces torsion, and keeps the row on target when wind picks up.

Tracking follows sun position for the site. At low sun angles the controller backtracks to keep rows out of each other's shade. Compared to fixed tilt on the same ground, annual energy is usually 15-25% higher, with the top end in high-DNI sites. Most of that gain comes from morning and evening hours.

Typical Applications

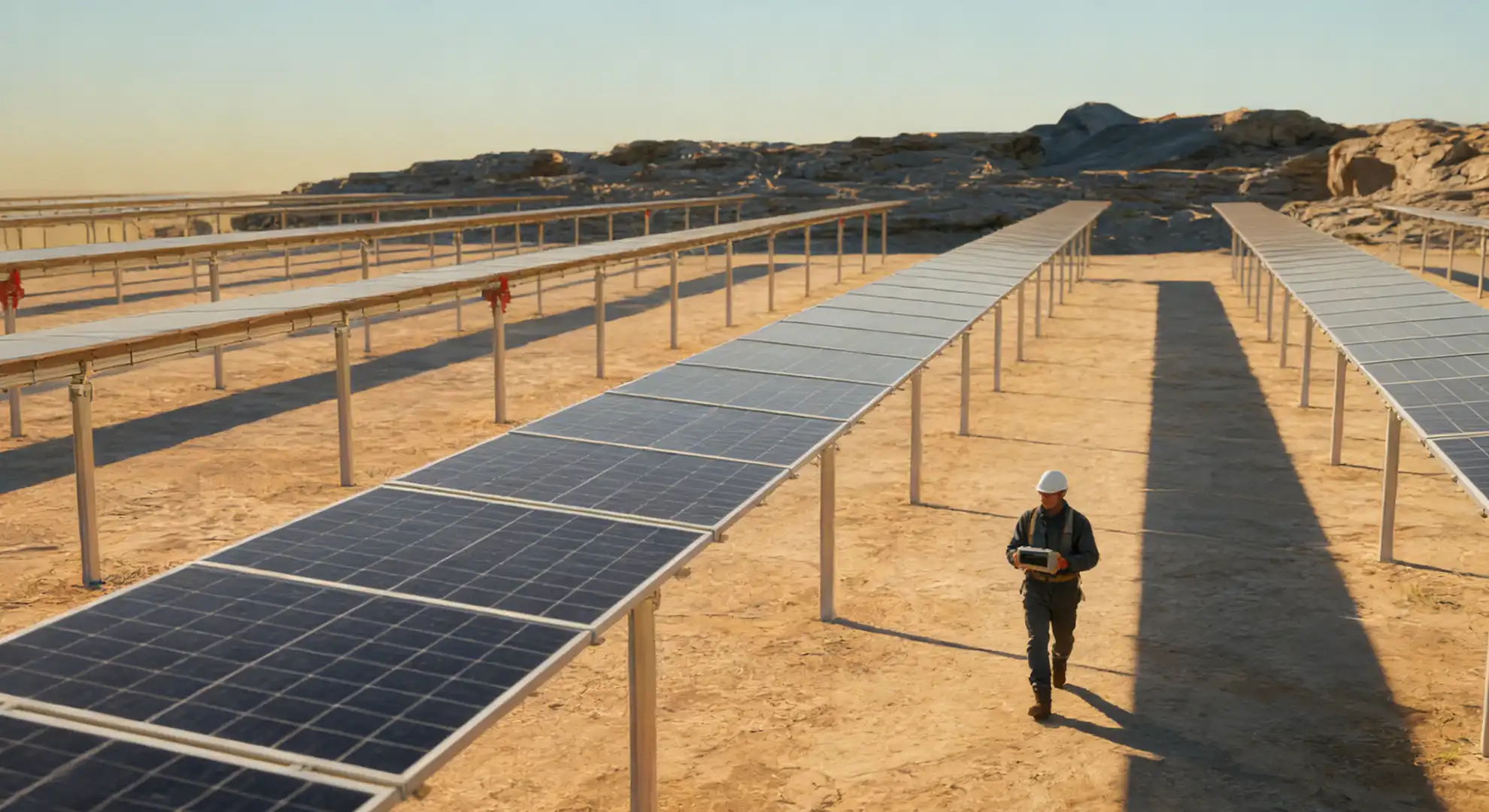

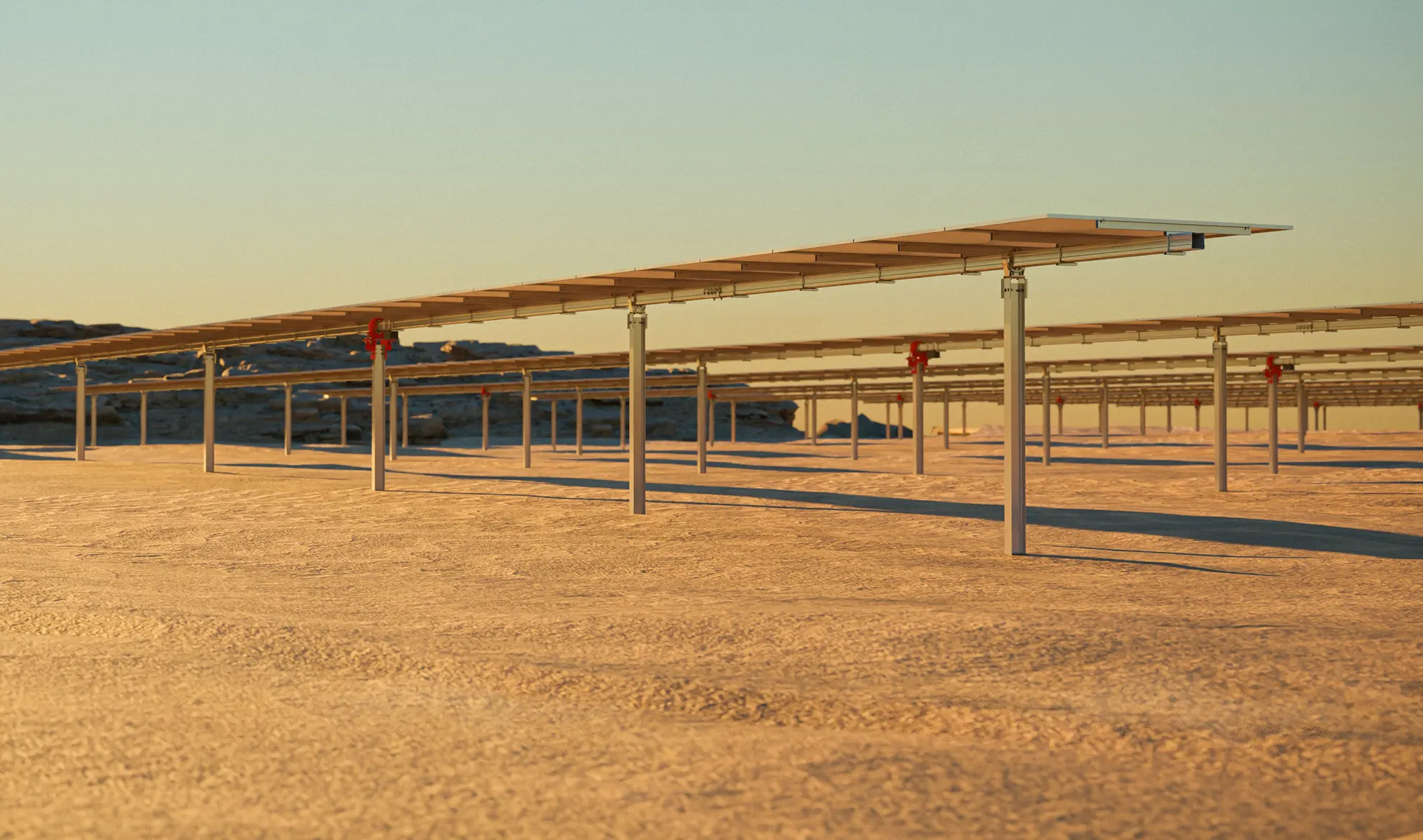

Utility-scale on plains, gentle rolls, desert, or brownfield. Works for industrial-park builds too. For agri-PV or grazing, we set row spacing and height to leave clear working room under the modules.

System Structure

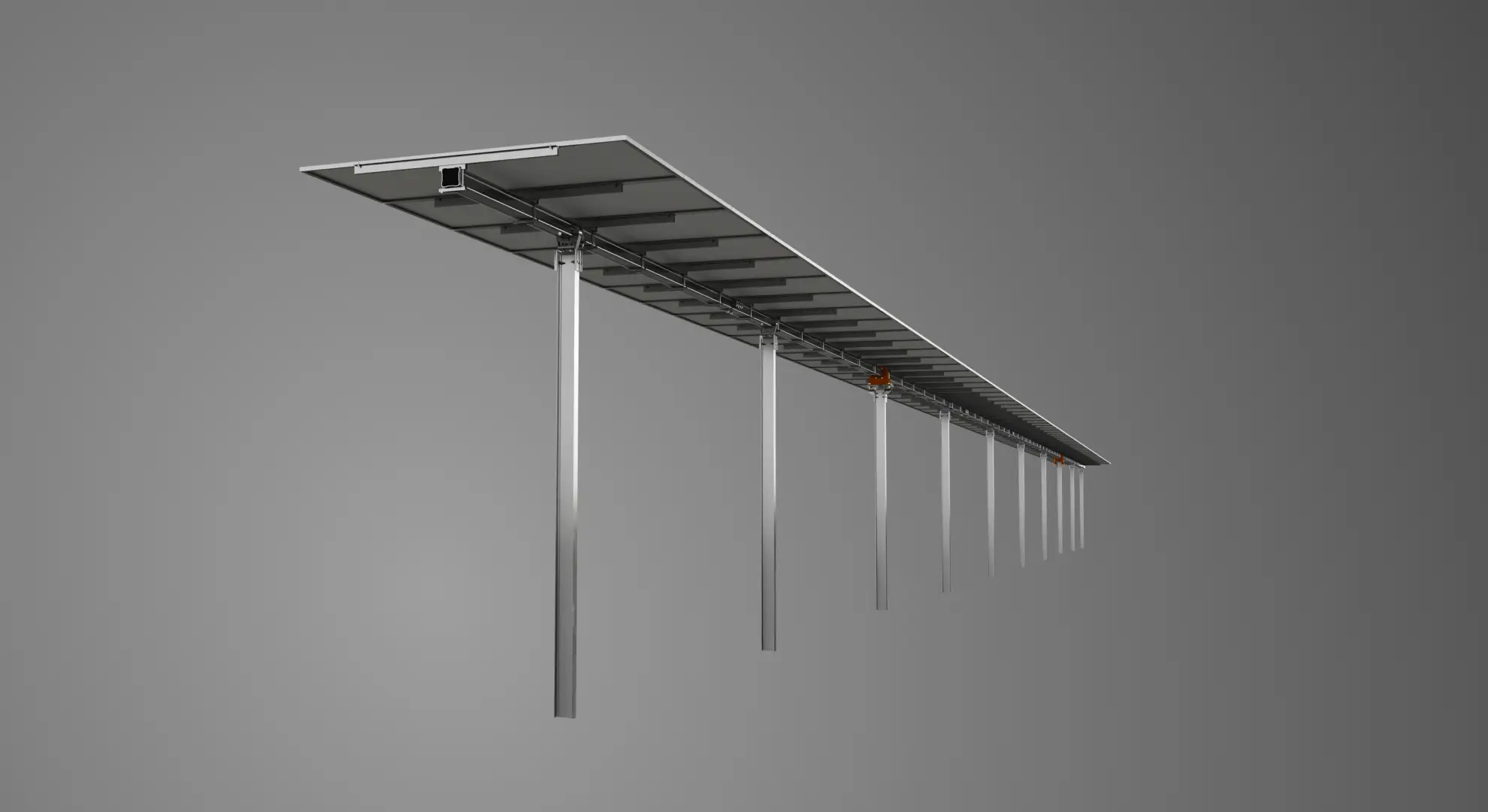

Single-axis Solar Tracker

System Advantages

expand

Multi-Point Drive

A central drive with mechanical linkages drives each row at two or more points. Short spans reduce torsional deflection and increase structural stiffness to prevent wind-induced flutter. The row holds position in high wind.

Tracking with Backtracking

The controller runs on site coordinates and time. Near sunrise and sunset, it holds the angle back to avoid row-to-row shading.

Monitoring

Each tracker reports position, motor current, wind speed, and faults over radio or cable. You see live status, event logs, and a Modbus/TCP API for SCADA.

Weather Stow

Set your thresholds. The array moves to a low-tilt stow in high wind, or to a steep angle to shed snow. A built-in backup power pack finishes the move if grid power drops.

Terrain and Modules

Handles up to 15% N-S grade without grading. Row-to-row height tolerance absorbs normal site unevenness. Compatible with large-format and bifacial modules. Tube height and clamp geometry keep rear-side light open.

O&M

Continuous module alignment with no drive gaps lets cleaning robots run end to end. The wide tracking range extends the production window.

Testing and Compliance

TÜV tested to IEC 62817
CE marked

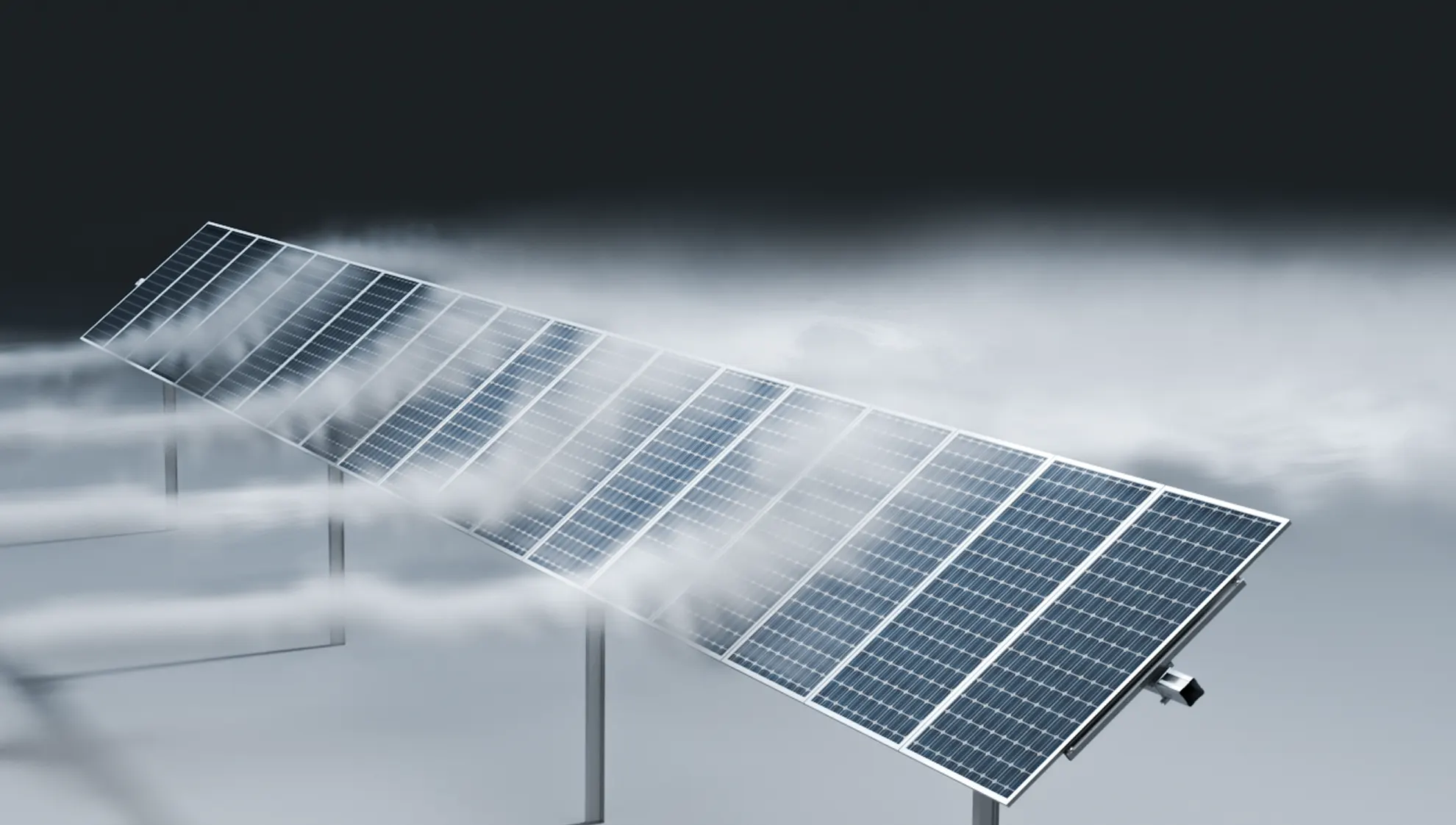

Wind-tunnel validated for site-specific loads

Warranty and Support

10-year warranty on structural components
5-year service coverage, including spare parts and technical support

Global Project Cases

Operating in global commercial and utility projects. Our structural solutions adapt to site-specific environmental loads and topography.

50MW Single Axis Tracker

Liaoning, China

50MW Single Axis Tracker

Liaoning, China
