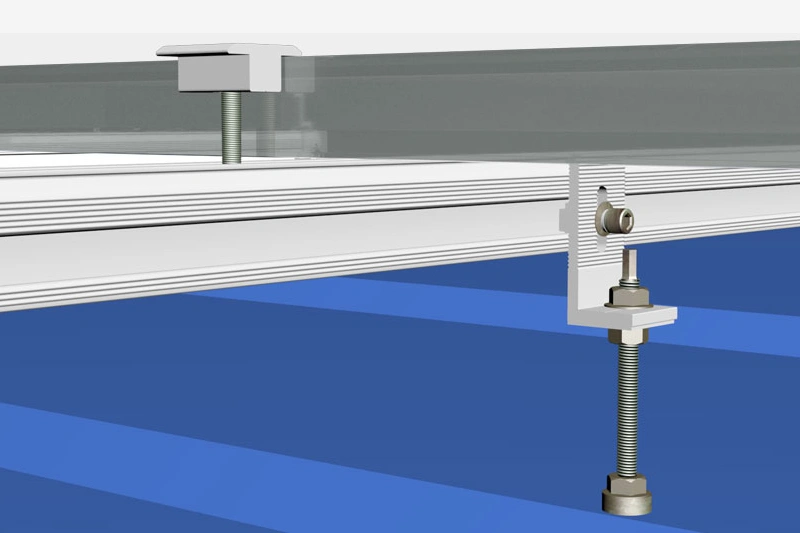

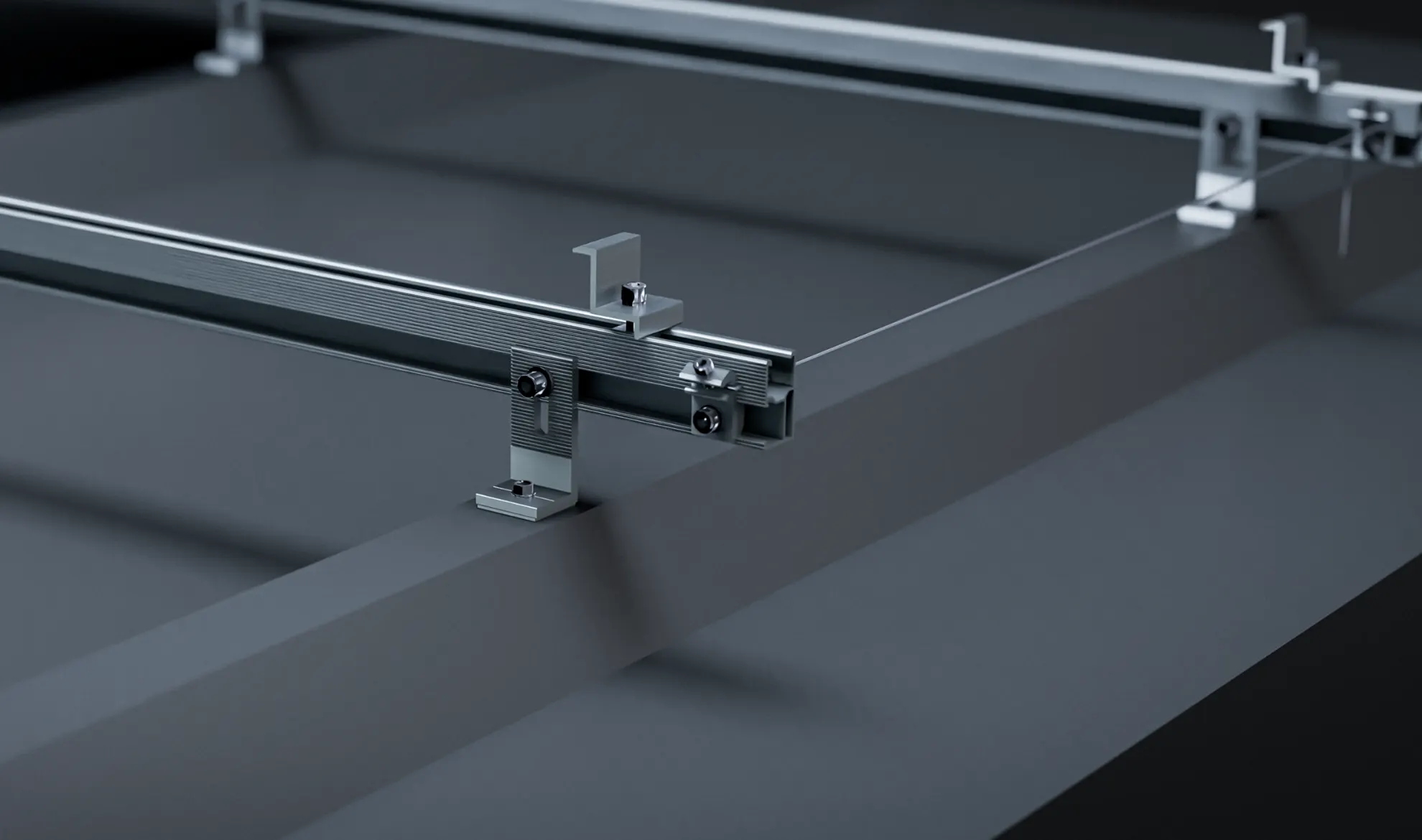

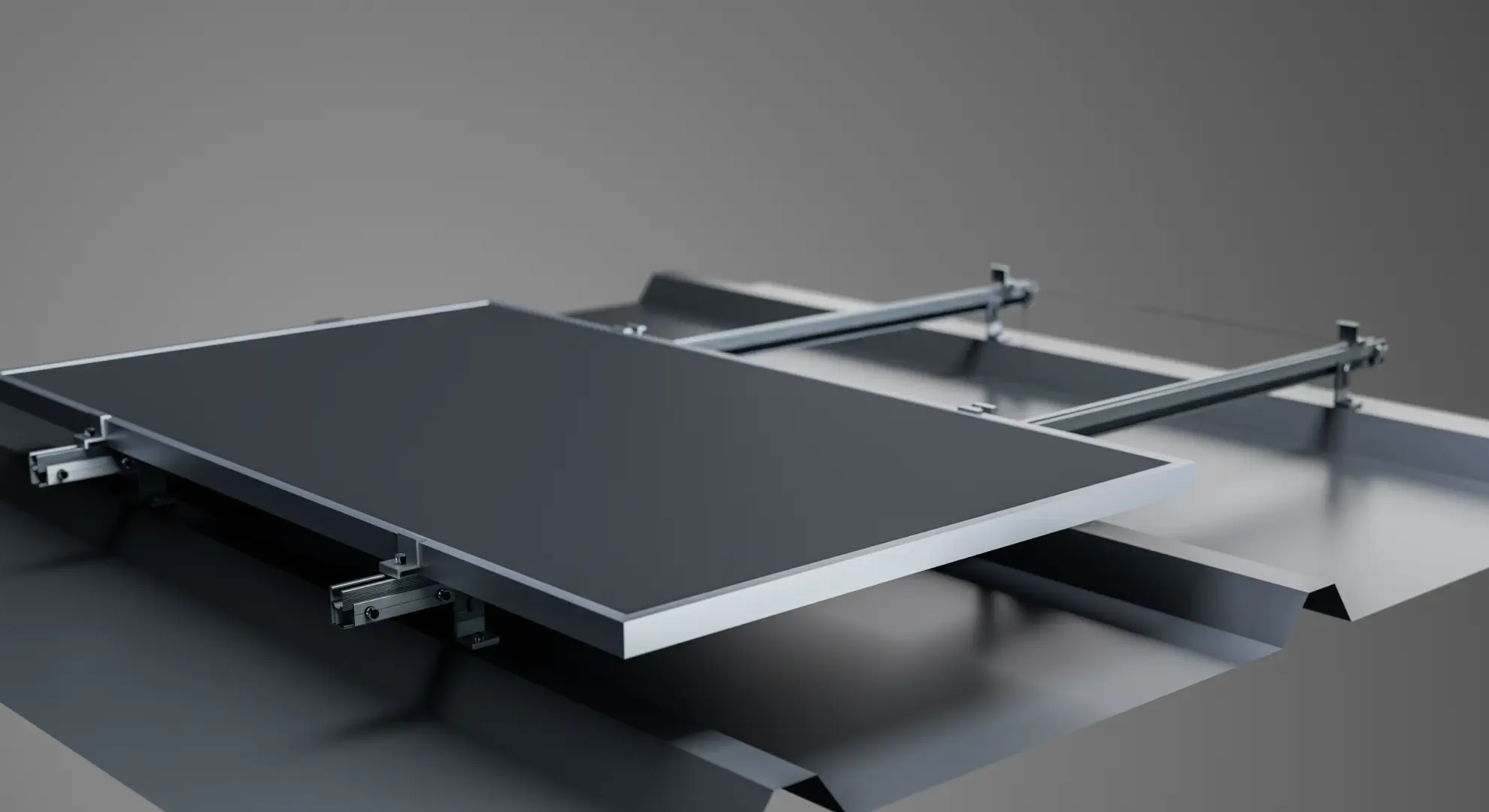

Product Application Examples
![Application example of l-feet metal roof solar mounts](https://www.mbtenergy.com/wp-content/uploads/2022/07/application-example-of-l-feet-metal-roof-solar-mounts.webp)
Features
● Enables simple, fast and cost-effective installation.
● Al6005-T5. High-class anodized aluminum.
● Waterproof Silicone rubber intergrated.
● Fasteners and rall nut configured to save extra parts purchasing.
● Natural silver or black anodized.
![L-Feet Metal Roof Solar Mounts Details](https://www.mbtenergy.com/wp-content/uploads/2022/07/l-feet-metal-roof-solar-mounts-details-1.webp)

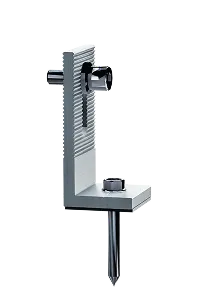

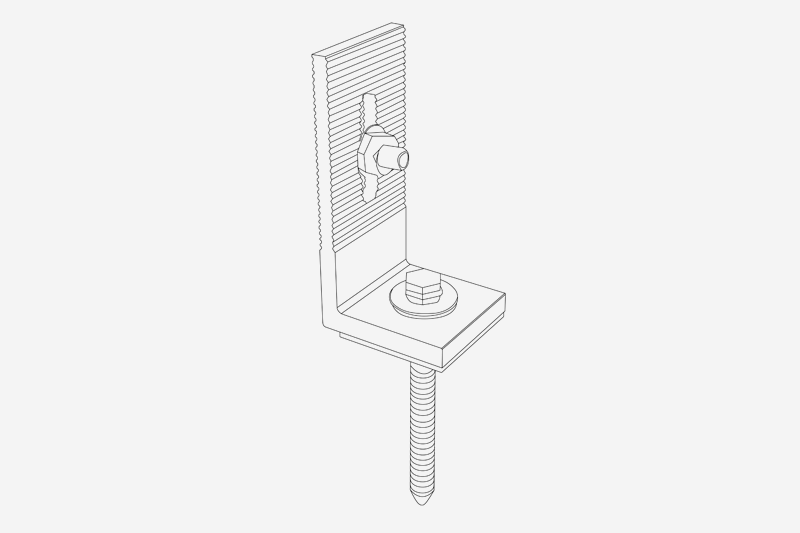

Bracket details
![L-Feet Metal Roof Solar Mounts Details](https://www.mbtenergy.com/wp-content/uploads/2022/07/l-feet-metal-roof-solar-mounts-details-2.webp)
![L-Feet Metal Roof Solar Mounts Details](https://www.mbtenergy.com/wp-content/uploads/2022/07/l-feet-metal-roof-solar-mounts-details-3.webp)
Technical Parameter
Type | Pitched Roof |
Bottom Support | Metal tiles |
Installation Angle | 0-15° |
Wind Load | 60m/s |
Snow Load | 1.6KN/㎡ |
Panel Framing | framed, frameless |
Panel Orientation | horizontal, vertical |
Design Standards | AS/NZS 1170, DIN 1055, JIS C8955:2017, |
International Building Code: IBC 2009, | |
California Building Code: CBC 2010; | |
Bracket Material | AL6005-T5 (surface anodized) |
Fastener Material | Zinc-nickel alloy & SUS304 & Hot-dip galvanized |
Parts Material | AL6005-T5 (surface anodized) |
Bracket Color | Natural silver or colored according to customer requirements |
Warranty | 10 years |
Service and Support
● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
